380V 50HZ Energy Saving PE Pipe Extrusion Line With Advanced Germany Technique

380V 50HZ Energy Saving PE Pipe Extrusion Line With Advanced Germany Technique
380V 50HZ Energy Saving PE Pipe Extrusion Line With Advanced Germany Technique 380V 50HZ Energy Saving PE Pipe Extrusion Line With Advanced Germany Technique 380V 50HZ Energy Saving PE Pipe Extrusion Line With Advanced Germany Technique 380V 50HZ Energy Saving PE Pipe Extrusion Line With Advanced Germany Technique

Large Image :  380V 50HZ Energy Saving PE Pipe Extrusion Line With Advanced Germany Technique

Product Details:

Place of Origin: China
Brand Name: Friend
Certification: CE,SGS,TUV
Model Number: SJ single screw extruder

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: negotiation
Packaging Details: Film package or wooden package
Delivery Time: 30-35 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 20 sets per month
Detailed Product Description
Material: PE Granule Voltage: 380V 50HZ Or Customized
Screw Design: Single Screw Extruder Motor Power: 50-170kw
Warranty: 12 Months After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

plastic pipe extrusion machine

,

pvc pipe production line

Plastic Extruder PPR / PE Multi Layer Pipe / Extrusion Line / Production Line



Working flow

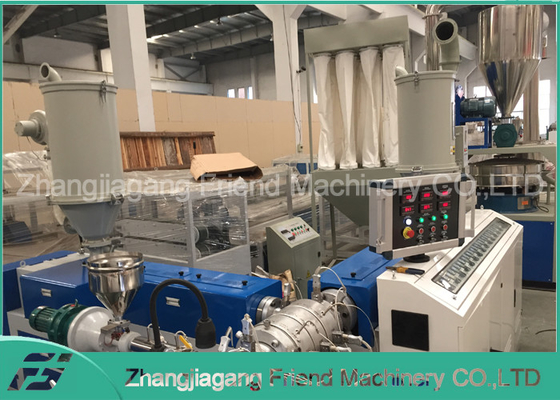

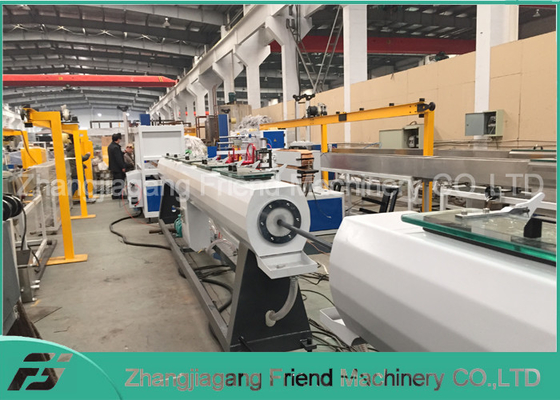

Mixer→ Vacuum feeding →Material dry → Single screw extruder →Marking line extruder(co-extrusion)→Vacuum calibration spraying cooling tank → Spraying cooling tank→ Color-ribbon printer → Haul-off machine →Cutter→Stacker



1. screw specication:various kinds of screw speciation are optional for client,adopt high quality screw,38CrMoAlA material with Nitriding treatment.

2. full set of mould can safisfy different diameter pipe production

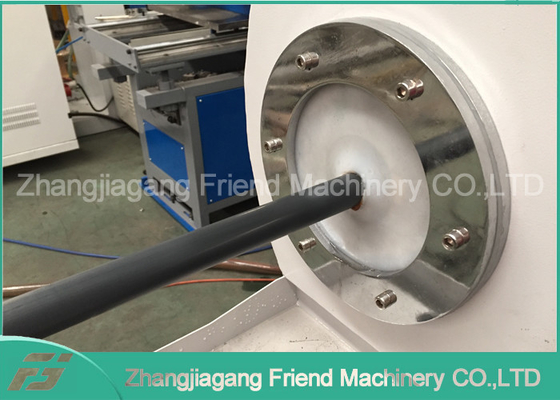

3. spraying and cooling in high level vacuum condition

4. stainless steel material barrel ,recycling water device to keep the reasonable working temperature

5. automatic length accounting device for precise cutting

6. different kinds of cutting way are optional:

1) non chipping machine ,adopt advanced Germany technique

2) planetary cutting machine (main suitable for large diameter pipe)

3) saw blade cutting

7. stainless steel and adopt pneumatic controlled



Technical Parameter



Main Tecnical Parameter
Diameter(mm)
20-63
20-110
75-250
110-315
160-450
315-450
Conical extruder
SJ65
SJ65
SJ75
SJ90
SJ90
SJ120
Extruder powder(KW)
55
75
110
110
160
280
Max lineal speed
12
10
3.5
3
2
1.2
Max capacity(K/G)
150
180
350
450
450
700



Characteristics:
1. Suitable to U-PVC,C-PVC,M-PVC ,PE, PPR,PP,HDPE,LDPE pipe extrusion

2. multi layer PE pipe production line/PE pipe extrusion machine with various diameter and wall thickness, from 16-800mm.

3. the plastic pipe production line mainly includes twin screw extruder, pipe extrusion die, vacuum calibrating water tank, spray cooling water tank, hauling unit, cutting unit and stack unit.the extruder is specially designed for producing variours pipe.

4. adoped the Simens, ABB, Schneider famous brand electric components and high quality extruder alloy screw and barrel

5. Supply technical service, formula guide and staple raw material purchase
