250kg/H Pvc Pelletizing Machine , Soft Hard PVC Master Batch Making Machine

China 250kg/H Pvc Pelletizing Machine , Soft Hard PVC Master Batch Making Machine supplier
250kg/H Pvc Pelletizing Machine , Soft Hard PVC Master Batch Making Machine supplier 250kg/H Pvc Pelletizing Machine , Soft Hard PVC Master Batch Making Machine supplier 250kg/H Pvc Pelletizing Machine , Soft Hard PVC Master Batch Making Machine supplier 250kg/H Pvc Pelletizing Machine , Soft Hard PVC Master Batch Making Machine supplier

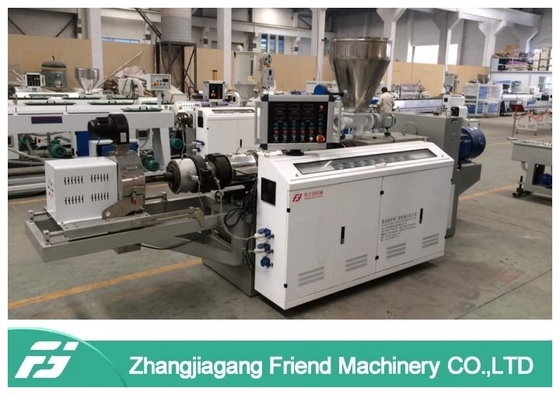

Large Image :  250kg/H Pvc Pelletizing Machine , Soft Hard PVC Master Batch Making Machine

Product Details:

Place of Origin: Jiangsu,China
Brand Name: Friend
Certification: CE,SGS,UV
Model Number: SJSZ

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: film packing and wooden case
Delivery Time: 10-25days
Supply Ability: 100sets per year
Contact Now
Detailed Product Description
Application: PVC Pellet Making Capacity: 100-680kg/h
Raw Material: PVC Powder Extruder Type: Conical Twin Screw Extruder
Main Driving Motor: SIEMENS Brand Inverter Brand: ABB
Screw Rotating Speed: 0-40rpm/min Color: Optional
High Light:

waste plastic recycling pelletizing machine

,

pvc granules making machine

Soft Hard PVC Hot Cutting Pelletizing Granulating Extrusion Machine Line



Description of PVC pelletizing production line:

PVC pelletizing production line is composed of a conical twin-screw extruder and the corresponding pelletizing downstream equipment, it is suitable for the pelletizing of PVC, PE raw materials with wood powder or other additives. The pellets produced by this machine is evenly, solid, elegant. The pelletizing downstream equipment is the die face cutter, air transferring unit, vibration separating and cooling unit. This pelletizing downstream equipment has the feature of high automatic and high production efficiency.

Main technical date:
Model
Screw size(mm)
Pellet size(mm)
Power of main Motor(kw)
Output(kg/h)
SJZ55
55/110
Φ3-Φ4
22
100-120
SJZ65
65/132
Φ3-Φ4
37
220-260
SJZ80
80/156
Φ3-Φ4
55
320-450
SJZ92
92/188
Φ3-Φ4
110
650-800



Detailes:

1 ZJF300Spring feeder

Rated throughput: 300kg/h

Pipe: 304 stainless steel

Motor power: 1.5KW

Brand: china brand with CE



2

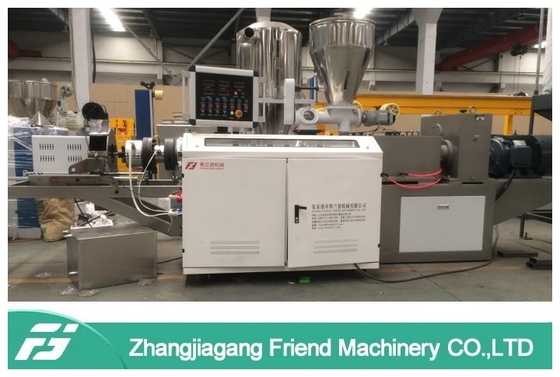

SJZ65/132Conical twin

screw extruder

Screw:

Diameter:65/132 mm

screw : 2 pcs

screw rotating speed: 0-34rpm

workable length : 1440mm

Barrel material: 38CrMoAlA

Surface treatment:Nitriding treatment,

depth:0.6-0.8mm,surface polishing

Barrel:

Barrel internal nitriding treatment,

depth: 0.6 ~ 0.8mm

Heating zone: 4zones

Heater:Cast aluminum heater +stainless steel

housings outside package

Heating power: 24KW

Cooling blower: 3 sets

Blower power:250W/set

Main motor:

Power: 37KW(AC motor)

Brand: XINDALI brand

Feeding system

Screw the quantitative feeding system

Stainless steel hopper

Motor power: 0.75KW

brand: china brand with CE

feeding speed controlled by ABB inverter

Vacuum exhaust:

Vacuum pump: 1.5KW, 1set

brand : china brand with CE

Vacuum degree:0 ~ 0.075 Mpa

The main electric components:

Temperature-controlled: RKC or OMRON

Inverter:HOLIPor ABB brand

Contactor:SCHNEIDER

Air-switch:OMRON

Relay:OMRON

Self-protection system:

Motor current overload protection

Screw overvoltage production

screw and barrel : zhoushan brand

gear box : horizontal type jiangyin brand

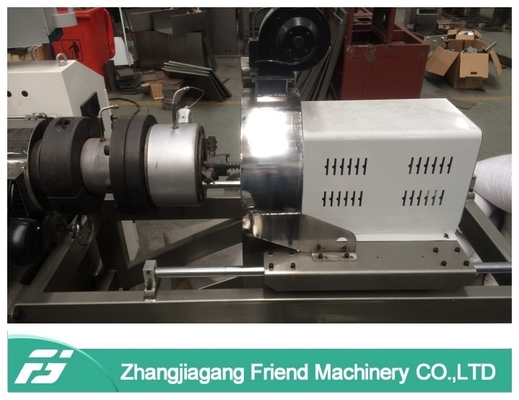

3 Pelletizing plant

Air cooling fan power : 180w

pelletizer Motor power:1.5KW

brand: china brand with CE

Blade quantity:3 pieces

Granule size:3mm×3mm

pelletizing speed could be controlled by ABB inverter

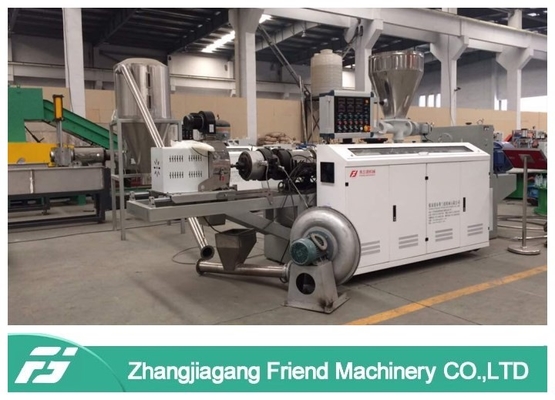

4 Blower

The particle transport

Motor power:3KW

brand: china brand with CE

Pipe diameter:133mm

Pipe making material: 304stainless steel



5 The transition bin

Exhaust/dehumidify

Bin material:304 Stainless steel

6 Blower

The particle transport

Motor power:3KW

brand: china brand with CE

Pipe diameter:133mm

Pipe making material: 304stainless steel



7 Storage silo

Storage particle

Bin volume:1 M3

Bin material:304Stainless steel



250kg/H Pvc Pelletizing Machine , Soft Hard PVC Master Batch Making Machine 0



Clause & Service:

Installation and Debugging:
Pre-sale: we given client the details technician offer, sign the sales contract etc.
In-sales: we supply the details layout, installation instruction, technician support for the clients.
After sales: we arrange engineer to install the machinery and training the workers for client. We always up date the new technology to every customer.



Delivery and Shipping:

After the contract comes into effect, buyer pay deposit, we will start to produce. When all the machines are completed, buyers come to factory to observe and test machine by themselves, until all the machines are satisfied with the buyers, they can pay for the other balance. Our company arrange to shipping goods to buyer. We provide the goods to be shipped by air or by sea. Pictures of cargo loading will be sent to every client to check and keep recording.



Package:

Packing with film, pallet or wooden case.(according to customers' request).



Guarantee:

We provide one-year warranty guarantee for all the machines. We supply long term spare parts for every customer.



Certificate: CE, ISO9001.2008.
