Strong Structure Plastic Crusher Machine Claw Blade Type Customized Color

Minimum Order Quantity : 1 set Price : negotiation
Packaging Details : standard film package Delivery Time : 20-25 working days
Payment Terms : L/C, D/A, T/T, Western Union Supply Ability : 10 sets per week
Place of Origin: Jiangsu Province, China Brand Name: Friend
Certification: CE certificate Model Number: PC800

Detail Information

Crushing Product: PET Bottles And Plastic Basket Usage: Crushing Waste Plastic
Capacity: 300-500kgh Blade Type: Claw Type
Motor: Siemens Brand Color: Customized Blue Or Others
Shipping: LCL SHIPMENT Size After Crushing: 10mm
High Light:

plastic grinding machine

,

pvc crushing machine

Product Description

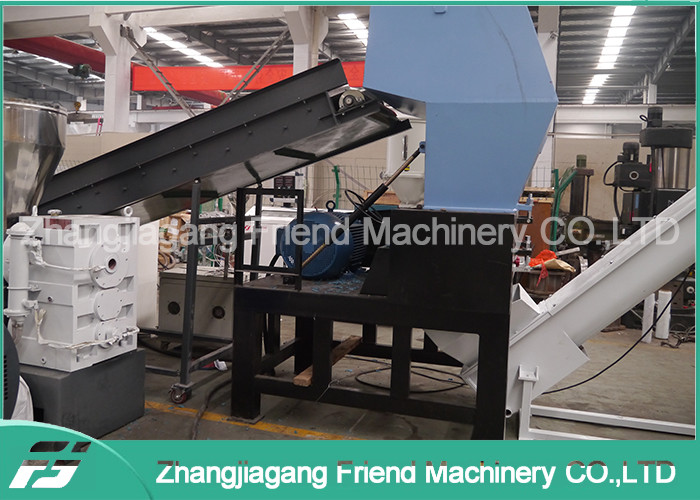

50HP Waste PET Bottle Plastic Crusher Machine and Plastic Basket Crusher



This plastic PET HDPE PP bottle crusher is used for thin thickness of waste plastic such as the PET bottle, plastic HDPE PP bottle, buckets, hollow containers, and so on. With special designed structure , it will have more capacity with less power consumption.



Features of plastic crusher machine

1) Strong structure, easy to operate, low electricity consumption & durable

2) Uses high quality steel material especially for making knives of the crushers, the machine stands long use under severe and continuous service conditions.

3) The blades can be grinded for many times and can be used repeatedly

4) Blades base is made of high quality steel, hard to be broken and damaged; Blades base structure is stable and durable

5) With flat type, claw type and cross type blade and screen with different hole size for chose to suit various demand.

6) With double reduce noise layer design to reduce noise output.

7) Has protection system with the power supply to ensure the equipment safe

8) Easy to clean and maintain, the hopper, crusher room, blades and screen can be removed and mounted easily.

9) Necessary for the plastic extrusion machines and other plastic recycling industry.





Advantages of 50HP Waste PET Bottle Plastic Crusher Machine and Plastic Basket Crusher:



1. Frame is made by solid square tube steel.
2. Shaft is made by 45# steel with quenching treatment.
3. Chamber is made by solid steel 40mm thickness.
4. Screen mesh is made by 10mm thick steel for durable use.
5. Easy-disassembling design, chamber is opened by motor automatically, which is simple and labor-saving to clean and maintain, and also convenient to change the blades.
6. Bearing house installed outside of the crusher chamber so no dirty goes inside which prolong the lifespan.
7. Machine upside chamber is higher and covered by belt no flakes popped out.
8. Blades are made by famous brand SKD-II from Japan with top quality.

9. Special designed cross-type cutter structure ensure high capacity and low power consumption.



Specifications of 50HP Waste PET Bottle Plastic Crusher Machine and Plastic Basket Crusher:

series Plastic Granulator
Model PC-300A (B) PC-400A (BPC -500A (B) PC-600A (B) PC-700 PC-800 PC-1000
Power Kw 5.5 7.5 11 15 22 30 37
Hp 7 10 15 20 30 40 50
Rotating Speed
(r/min)
610 580 600 506 493 440 440
Rotating Φ Dia
(mm)
213 243 247 292 360 400 400
Spindle Φ Dia
(mm)
72 72 78 82 110 110 120
Moving blades
(pcs)
9 12 15 18 21 24 6
Fixed blades
(pcs)
2 2 2 4 4 4 4
Crushing ability (kg/h) 150-200 250-400 300-500 500-600 600-700 700-800 900-1000
Feeding inlet
(mm)
300x200 400x245 500x285 600x315 685x430 800x450 1000x500
Screen net Φ (mm) 8 10 10 12 12 12 14
Net Weight - kg
(without motor)
300 430 550 800 1325 1800 2000
Machine size
( LxWxH m)
1.07x0.72x1.08 1.29x0.86x1.18 1.37x1.00x1.39 1.54x1.15x1.66 1.75x1.25x1.96 1.95x1.37x2.18 2.25x1.60x2.40
NOTE: (Difference)
Model A :Upper box be with iron sheet liner.
