Double Shaft Plastic Crusher Machine Plastic Lumps Shredder Low Noise

Minimum Order Quantity : 1 set Price : negotiation
Packaging Details : standard film package. Delivery Time : 10-25 working days
Payment Terms : L/C, D/A, T/T, Western Union Supply Ability : 10 sets per month
Place of Origin: Jiangsu Province, China Brand Name: Friend
Certification: CE Certificate Model Number: SZ800

Detail Information

Type: SMF800 PVC Grinding Machine / Plastic Mill Pulverizer Machine Process Material: Wood Profile And Lumps
Final Product: Wood Chips Capacity: 300-700kg/h
Shaft Quantity: Twin Shaft Hydraulic Station: Have
Final Product Size: 40-50mm Customized Design: We Can Provide
High Light:

plastic shredder machine

,

pvc crushing machine

Product Description

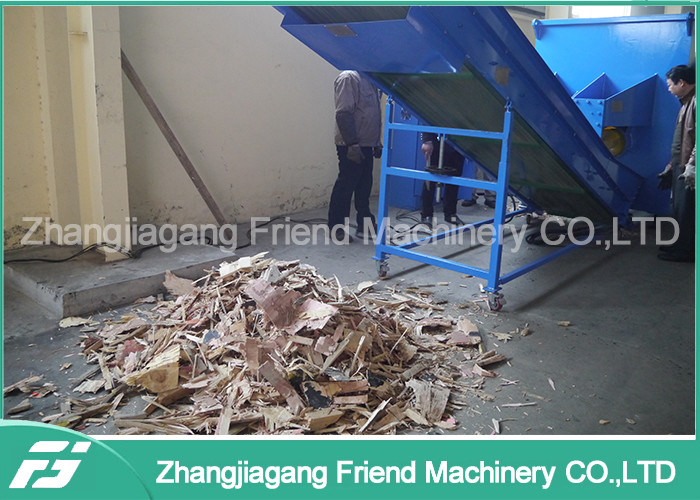

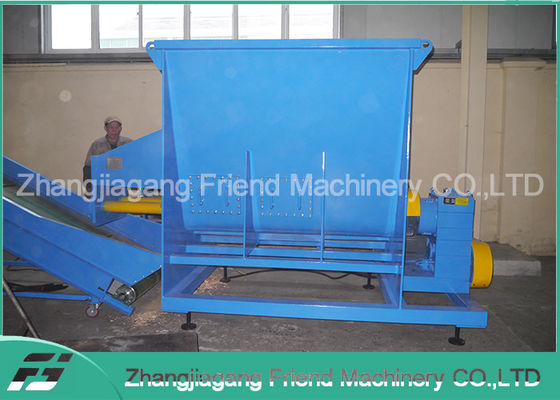

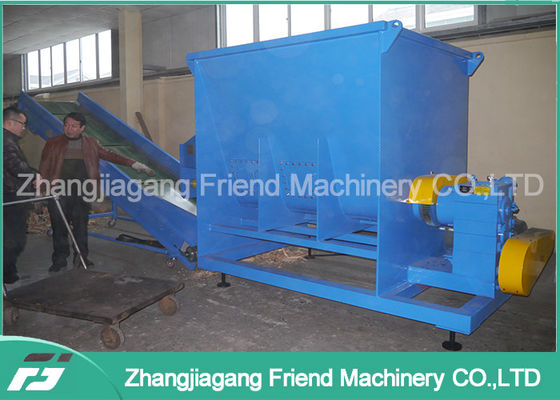

Double Shaft Waste Wood Shredder / Wood Plastic Lump Shredding Machine



This Double Shaft Waste Wood Shredder / Wood Plastic Lump Shredding Machine is we designed for our customer who have requirement of wood board, profile and lumps shredding. We already design this machine for different customer from Russia, Chile, USA and so on, So we have rich experience in the wood shredder design. It has advantage of low cost, but very high performance.



Features of double shaft shredder machine:



1. This series double shaft shredder is suitable for waste type, oil tank,bags,tyres,thin wood sheet,thin steel sheet, waste electrical shell, film etc.

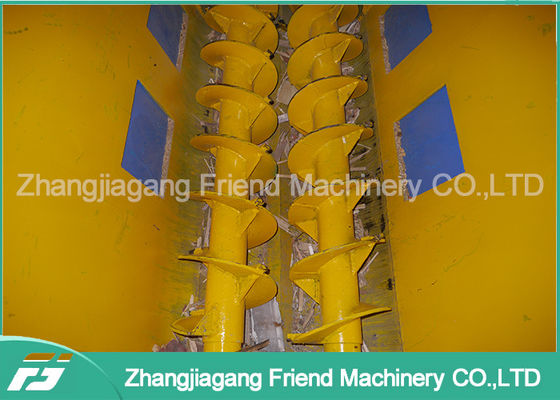

2. Features: double blade shaft structure with multi-claw type blade. It can save energy and has strong strength. The blade is made of special steel through heating treatment with long life. It can be changed easily and can be reused again through repairing.



3. The gearbox adopt oil lubrication with low noise, big torque etc. Low speed and high torque design make low noise and little dust. It is specially for film, PP woven bag, etc. It also can be suitable for PP/PE baled film and PET bottle.





Main Character:



1. Simple adjustment of cutting gap

2. Fast and easy replacement and adjustment of discs

3. Easy temperature control

4. Low drive power, cost effective operation

5. High throughput

6. Long service life of the disc when sharpened

7. Low residence time means lower thermal stress on the process material





Main Technical Parameters of wood shredder machine:



Model 2000 1500(1600) 1200 1000 800 600

Main power

(kw)

55KWx2 45KWx2 37KWx2 30KWx2 15kwx2 11kwx2

Shaft speed

(r/min)

30 30 30 30 30 30
Capacity(t/h) 10-25 5-15 3-10 2-10 1-5 1-3

Cutter thickness

and number

40mm/50pcs 40mm/40pcs 40mm/30pcs 40mm/24pcs 40mm/20pcs 40mm/14pcs

Discharging size

(mm)

30-100 30-100 30-100 20-100 20-100 20-100

Hopper size

(mm)

2600x1400 2000x1400 2000x1400 1500x1000 1200x1000 1000x1000

LxWxH

(mm)

5500x2100x2900 4500x2100x2200 4000x2100x2300 3500x1800x2000 3000x1200x1900 2800x1200x1800





FAQ:



Q:What about your machinery?
A:Seeing is believing.Our strength technical team guarantee the highest quality,not only of machine,but also of precisely control and final product.

Q:What about the price?
A:Our price is based on reasonable competition.

Q:What about after service?
A:We can offer 18months warrant since the machinery arrived at your factory except for durable parts.After warrant,we will offer space parts or repair service with or without charges.
