Water Supply Pipe Drian Pipe HDPE Pipe Making Machine / Production Line For 63-630mm
Contact Person : Coco
Phone Number : +8618013292369
WhatsApp : +8618013292369
| Minimum Order Quantity : | 1 SET | Price : | negotiation |
|---|---|---|---|
| Packaging Details : | STANDARD WOODEN PACKAGE | Delivery Time : | 30 WORKING DAYS |
| Supply Ability : | 20 SETS PER MONTH |
| Place of Origin: | JIANGSU, CHINA | Brand Name: | FRIEND |
|---|---|---|---|
| Certification: | CE,SGS | Model Number: | SJ-65 |
|
Detail Information |
|||
| Application: | PE/HDPE PIPE MAKING | Motor: | 37 Kw |
|---|---|---|---|
| Screw Material: | 38CrMoALA | Screw Design: | Single-screw |
| Motor Brand: | Siemens Beide | Machinery Test Report: | Provided |
| Control: | Transducer | Transducer: | ABB |
| High Light: | Agriculture HDPE Pipe Extrusion Line,1000kg/h HDPE Pipe Extrusion Line,1000kg/h hdpe pipe extrusion machine |
||
Product Description
High Quality Low Consumption Latest New PE/HDPE Pipe Extrusion Line For Sale
Description
PE plastic pipe production line is mainly used to produce water supply and drainage pipes in agriculture, construction, cable and other fields. The production line is mainly composed of single screw extruder, vacuum shaping tank, spray cooling tank, haul-off, cutter, stacker, etc.
Application
1.The large-diameter PE pipe of urban tap watar pipe network system is hygienic,non-toxic and non scaling.It is more suitable for urban water supply mains and buried pipes,with safety,sanitation and convenient construction.
2.Agricultural irrigation pipe PE pipe has smooth interior,large flow,crossroad construction and good impact resistance.It is an ideal tool for agricultural irrigation.
3.Chemical industry,chemical fiber,foof,forestrry,pharmacy,light industry,papermaking,metallurgy and other industrial raw material transmission pipelines.
4.Greening the water supply network requires a large number of water pipes.PE pipes have good toughness and low cost,making them the best choice.
5.Sewage discharge pipe PE pipe has unique corrosion resistance and can be used for industrial wastewater and sewage discharge pipe with low cost and low maintenance cost.
Flow Chart
Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder→ color band extruder → mould and calibrator → vacuum calibration machine → cooling tank→ haul-off machine → cutting machine → stacker
Main Technical Parameter
| Model | Screw Diameter(mm) | L/D | Pipe Range(mm) | Motor Power(kw) | Total Power(kw) | Line Length(m) |
| PE-63 | 65 | 33:1 | 16-63 | 37 | 80 | 24 |
| PE-110 | 65 | 33:1 | 75-110 | 55 | 110 | 30 |
| PE-160 | 75 | 33:1 | 90-160 | 90 | 150 | 32 |
| PE-250 | 75 | 33:1 | 110-250 | 110 | 200 | 42 |
| PE-315 | 90 | 33:1 | 160-315 | 160 | 240 | 44 |
| PE-400 | 90 | 33:1 | 200-400 | 185 | 300 | 50 |
| PE-500 | 120 | 33:1 | 250-500 | 280 | 350 | 56 |
| PE-630 | 120 | 33:1 | 315-630 | 280 | 480 | 56 |
| PE-800 | 150 | 33:1 | 400-800 | 315 | 550 | 72 |

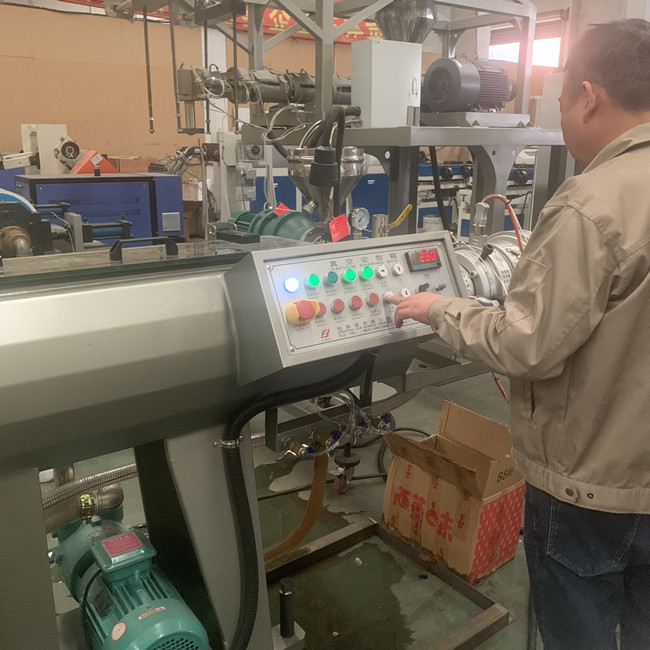

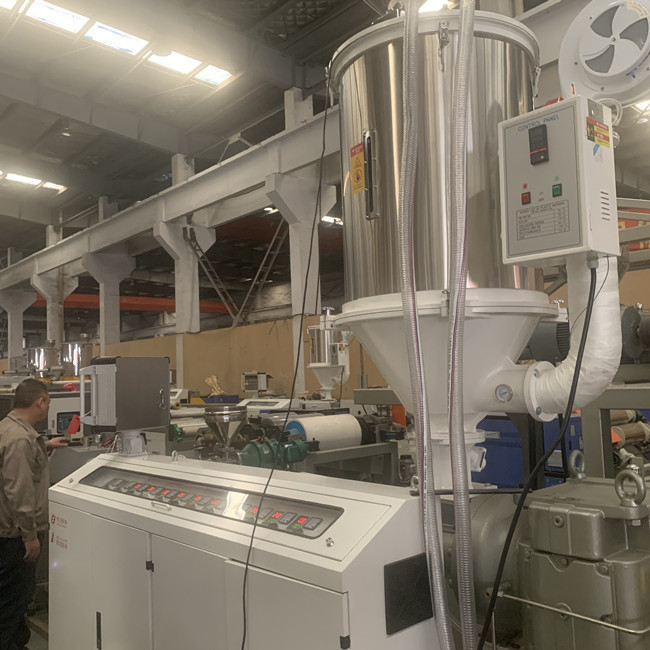

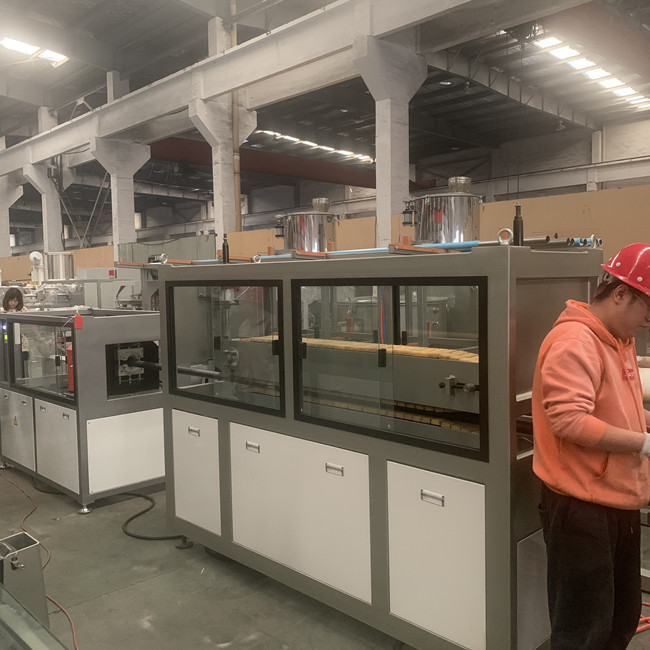

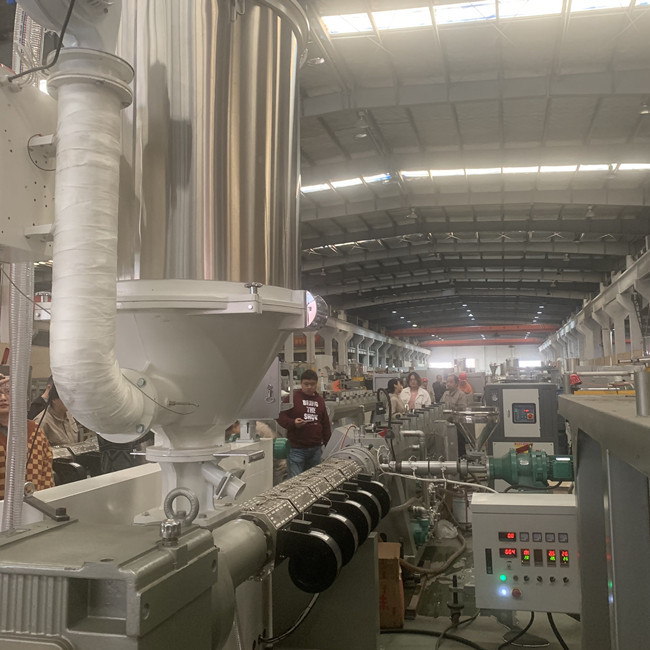

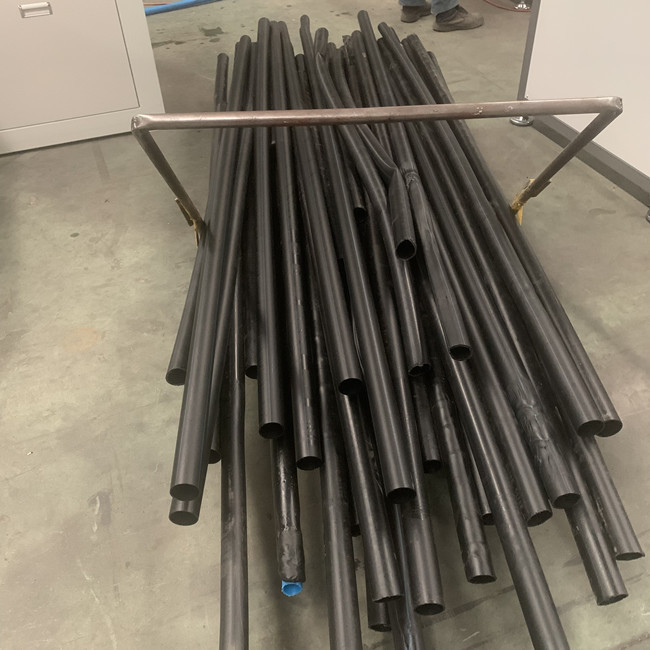

Pictures
