Single Screw Extruder Pla 3d Filament Extrusion Line

Minimum Order Quantity : 1 set Price : $ + 28500 + set
Packaging Details : Film package Delivery Time : 5-8 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 1 + set + per 10days
Place of Origin: China Brand Name: Friend
Certification: ce Model Number: Fld-45

Detail Information

Voltage: 220V/380V Or Customized Condition: New
Power(w): 15kw Application: Filament
Plastic Processed: ABS,PLA,ABS/PLA Key Selling Point: Easy To Operate
Usage: Multifunction Printing,3D Filament Printing,producing Pla Filament For 3D Printer,3D Printer Filament Making
High Light:

Single Screw 3d filament extrusion line

,

0.5mpa pla filament extruder

,

0.5mpa 3d filament extrusion line

Product Description

Automatic 15kw Single Screw Extruder For 3D Printer Filament Machine



Extruder Description

(1) Screw:

It is the key component to complete plastic transportation and plasticization. Due to rotation, it pushes the plastic forward, so as to achieve the purpose of compaction, melting, mixing and homogenization. The thread is composed of different functional sections to achieve better conveying, compaction, mixing, plasticizing effect and high yield. The screw material is made of high-quality nitriding steel (38CrMoAlA) through finishing, nitriding and grinding. Corrosion resistance, wear resistance and long service life. (corrugated hose extruder)



(2) Barrel:

The barrel is made of nitrided steel. After nitriding treatment, the inner hole has higher hardness, better wear resistance and certain corrosion resistance. There are five groups of heaters on the outer surface of the cylinder. Heat is transferred from the barrel to the plastic to melt and plasticize the plastic. There are five temperature measuring points at each part of the cylinder, which can be automatically controlled within the plastic processing temperature range. The fifth heating area of the cylinder is provided with air circulation cooling, which can accelerate the cylinder cooling and improve the temperature control accuracy. (pipe extruder)



(3) Head flange joint:

It is a part connecting the head and the cylinder, which is heated by the heating ring to prevent the molten plastic from cooling.

(single screw PVC pipe device)



(4) Transmission system:

The transmission system is to make the screw rotate evenly with the necessary torque under the selected process conditions, so as to complete the plasticization and transportation of plastic by the screw. In order to meet the production requirements of various specifications of plastic products, the screw should have different speeds. The machine adopts variable frequency motor to drive the gearbox directly through the coupling, and adopts governor to realize speed regulation. The screw speed can be read directly through the tachometer or governor on the control panel. (pipe extruder)



Our Service

1. We not only provide machines, but also provide technical support and market evaluation.

2. We will provide all machines of the whole production line according to customer requirements.

3. We will provide complete factory layout and other information services to help customers establish factories.

4. We will provide good machine installation and training services until customers can run the machine and stabilize production.

5. In addition to the one-year warranty, we will always provide after-sales service.

6. For long-term cooperation, we always provide good quality, good price and good service to customers.



Main Techiniacal Parameter

Mode FLD-45A FLD-35A FLD-35B FLD-50A
Capacity(kg/h) 15 7.5 5.5 15
Total Length(m) 12 11 5.8 15
Filament Quantity 1 1 1 1
Diameter(mm) 1.75*2.85*3.00 1.75*2.85*3.00 1.75*2.85*3.00 1.75*2.85*3.00
Tolerance(mm) 0.02 0.02 0.03 0.02
Working Temperature(℃)

0-280(A)

0-480(B)

0-280(A)

0-480(B)

0-280(A)

0-480(B)

0-280(A)

0-480(B)

Water Consumption(m³) 1 1 1 0.5
Air Supply(Mpa) 0.5 0.5 0.5 0.5

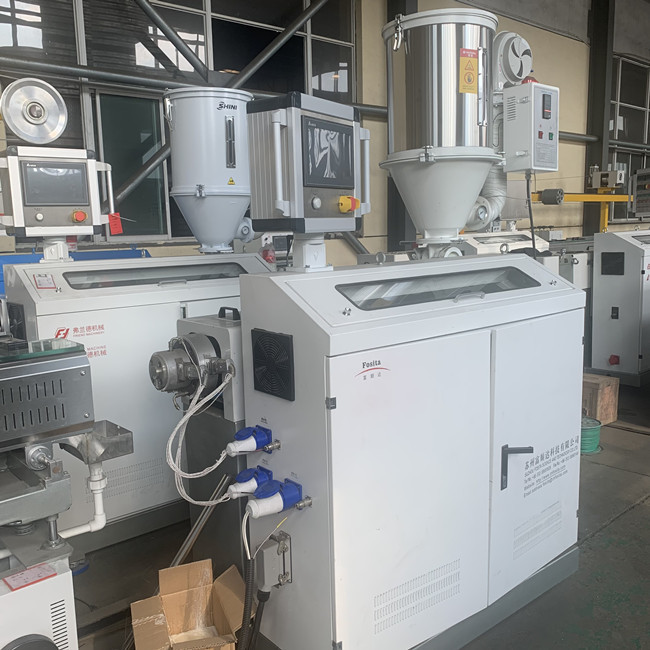

Product Pictures

Single Screw Extruder Pla 3d Filament Extrusion Line 0Single Screw Extruder Pla 3d Filament Extrusion Line 1Single Screw Extruder Pla 3d Filament Extrusion Line 2Single Screw Extruder Pla 3d Filament Extrusion Line 3Single Screw Extruder Pla 3d Filament Extrusion Line 4
