Two Stage Plastic PVC Pelletizing Line 600kgs/H For Granulating Recycled Materials

Minimum Order Quantity : one set Price : negotiation
Packaging Details : Film package Delivery Time : 30-40 days
Payment Terms : L/C, D/A, D/P, T/T Supply Ability : 20 sets per month
Place of Origin: China Brand Name: Friend
Certification: CE Model Number: SJSH

Detail Information

Material: PVC Cable Material Application: Granule
Machinery Test Report: Provided After-sales Service Provided: Engineers Available To Service Machinery Overseas
Capacity: 100-600kgs/h Voltage: 380V Or Customized
Power: 75kw Warranty: One Yeaar
High Light:

Two stage PVC pelletizing line

,

Two stage plastic pelletizing line

,

hot cut plastic pelletizing line

Product Description

Two stage 75kw PVC plastic recycling machine PVC pelletizing line



Description

The machine is suitable for granulating recycled materials such as rigid PVC, soft PVC and waste PVC.

Pneumatic conversion and strong wind blowing can be adopted without stopping in the production process. At the same time, the stainless steel storage container can be adjusted, which can run at high speed for a long time and extrude stably.

The machine is suitable for granulating recycled materials such as rigid PVC, soft PVC and waste PVC.

Pneumatic conversion and strong wind blowing can be adopted without stopping in the production process. At the same time, the stainless steel storage container can be adjusted, which can run at high speed for a long time and extrude stably.



Features

1. Advanced equipment, precise granulation and strong production capacity.

2. Conical twin-screw extruder and single screw extruder are very suitable for processing high-capacity PVC powder

3. Granulation method: thermal cutting on the die surface, uniform cutting and good forming.

4. Auxiliary equipment: pellet cooling and grading.



Details

1. The process flow is: material selection - crushing and cleaning - automatic feeding - automatic temperature control and heating - melting - mixing - Exhaust extrusion - drawing - cooling - automatic cutting.

2. The equipment adopts well-known reducer to realize no noise and low fault.

3. The screw and cylinder are quenched with high-quality carbon steel and alloy steel (optional nickel base alloy spraying process), so that the service life is increased by more than five times.

4. Reduce equipment maintenance rate and realize 24-hour continuous production,

5. After improving the feed inlet design, wet materials can be added with water.



Main Technical Parameter

Model SJSZ55 SJSZ65 SJSZ80 SJSZ92
Screw specification(mm) 55/110 65/132 80/156 92/188
Granules size(mm) 3-10 3-10 3-10 3-10
Main motor power(kw) 40 70 90 110
Product capacity(kg/h) 150 250 320 650

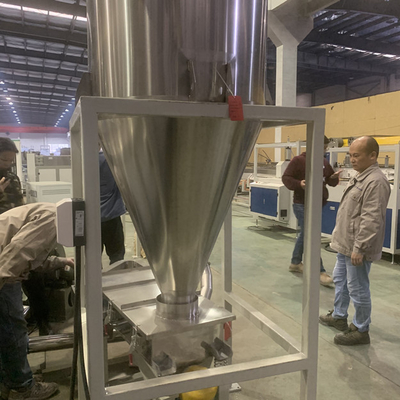

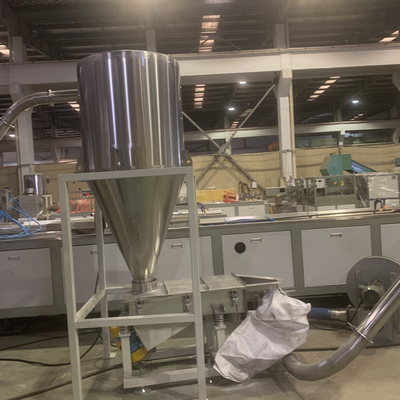

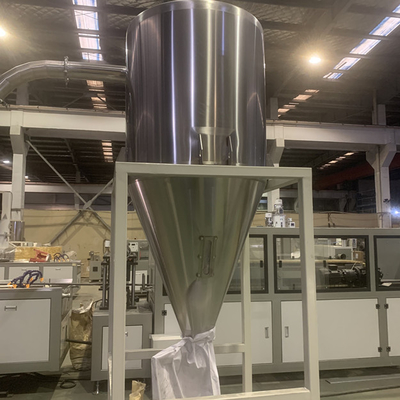

Product Pictures

Two Stage Plastic PVC Pelletizing Line 600kgs/H For Granulating Recycled Materials 0Two Stage Plastic PVC Pelletizing Line 600kgs/H For Granulating Recycled Materials 1Two Stage Plastic PVC Pelletizing Line 600kgs/H For Granulating Recycled Materials 2Two Stage Plastic PVC Pelletizing Line 600kgs/H For Granulating Recycled Materials 3
