800kg/H Waste Plastic Recycling Agglomerator Plastic Crusher Machine

Product Description

100-800kg/h waste plastic recycling agglomerator machine plastic crusher machine

Description

Plastic agglomerator is designed for processing plastic waste for reclamation and recycling, LDPE, HDPE, PP, LLDPE, BOPP, HM, Polyester, Nylon, PVC etc. trim scraps, baled or loose film, yarn, synthetic fiber and carpet. Agglomerator is ideal to convert plastic waste dense cubes / bulk density for easy feeding into Extruder.

Feature

No need electric heating, and can work whenever and wherever possible.
Strong design of double bearing for holding the main shaft,High performance blades,Water flushing automatically.

Details

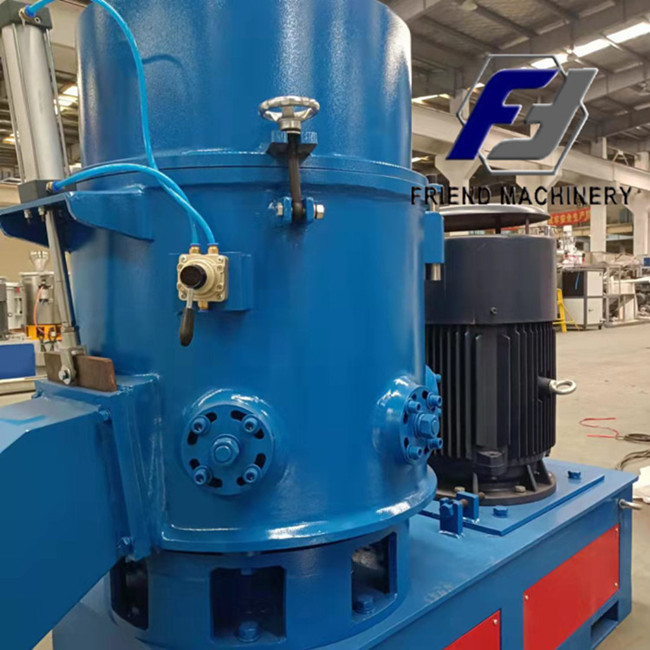

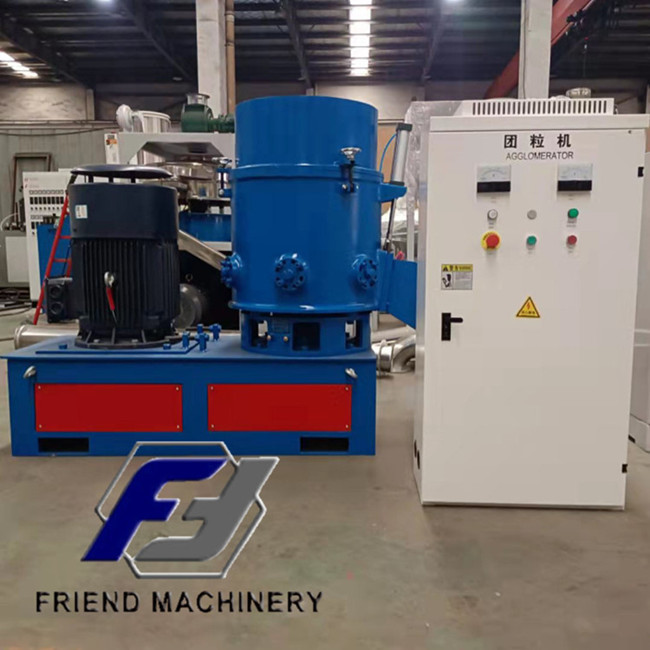

PlastIc film agglomerator machine
plastic agglomerator
plastic agglomerator machine
plastic film agglomerator
Plastic agglomerator application
Plastic agglomerator is designed for processing plastic waste for reclamation and recycling, LDPE, HDPE, PP, LLDPE, BOPP,
HM,Polyester, Nylon, PVC etc. trim scraps, baled or loose film, yarn, synthetic fiber and carpet.

Agglomerator is ideal to convert
plastic waste dense cubes / bulk density for easy feeding into Extruder.

Application

After the waste plastic being feed into the pot of machine, the high-speed rotating blade and the fixed blade shear the materials by rotation, so that the material will soon be cut into pieces, chopped or sheet of material under centrifugal force rotation of the cutter, along the pot wall flow while under the effect of pulp material and that flip up and down movement of the center of the pot to the direction all round of the pot.
Due to the friction between itself and the friction material at high speed and the pot wall and the blade, a lot of frictional heat will be produced, the material temperature rose rapidly to reach semi-plasticized state. adhesion to each other into small pieces. Add the gauging water before the material to be agglomerated, all previously prepared material sprayed into the cold water on hot materials, evaporated quickly, heat is taken away by the material surface, so that rapid cooling to prevent caking material surface, then through rotation of the blade by blade and the fixed crushing action,plastic raw materials will be chopped a particle (size pellets of irregular heartbeat).
In the course of shredding, it may also add suitable pigment to color raw materials.
This machine can produce pellets for extrusion machines, injection machine,
With the more stringent requirements,materials can be pellets then be added into extrusion granulator and then plasticized, after granulation.
GSL series is mainly used for the production of PE, PP and other plastic film category.
GHX series of high-speed pellet machine is mainly used for pelletizing PET fibers.

Main Technical Parameter

Product Pictures
