Water Supply Pipe Drian Pipe HDPE Pipe Making Machine / Production Line For 63-630mm
Contact Person : Coco
Phone Number : +8618013292369
WhatsApp : +8618013292369
| Minimum Order Quantity : | one set | Price : | negotiation |
|---|---|---|---|
| Packaging Details : | Film package,if wooden package needs extra charge | Delivery Time : | 30 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 20 sets per month |
| Place of Origin: | China | Brand Name: | Friend |
|---|---|---|---|
| Certification: | CE | Model Number: | SJ single screw extruder |
|
Detail Information |
|||
| Material: | PE,HDPE,PPR | Application: | Pipe |
|---|---|---|---|
| Pipe Diameter: | 13-630mm | Voltage: | 380V,50HZ Or Customized |
| Control: | PLC+touch Screen | Capacity: | 80-180kg/h |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Forming: | Vcauum |
| High Light: | 100mm pe pipe production line,100mm PP pipe production line,plc control pe pipe production line |
||
Product Description
PE PP HDPE 63-100mm production line/extrusion line/PE pipe extrusion line
Description
The extrusion line can be used for the production of polyethylene pipes with different diameters, and has excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, environmental stress crack resistance, creep deformation resistance, thermal connection and other properties.
Therefore, the pipeline production line is the first choice for gas, water pipe and agricultural irrigation pipeline system between urban and rural areas.
Details
1. Capacity: single screw extruder, suitable for high-capacity polyethylene powder, maximum 800kg / h
2. Diameter: our company has successfully designed and produced the world's largest conical single extruder. The maximum production diameter is 800mm.
3. The auxiliary machine fully meets the customer's requirements. Beautiful appearance, automatic control, stable operation performance.
This machine is mainly used for producing PE water pipes; High quality and reasonable design.
Application

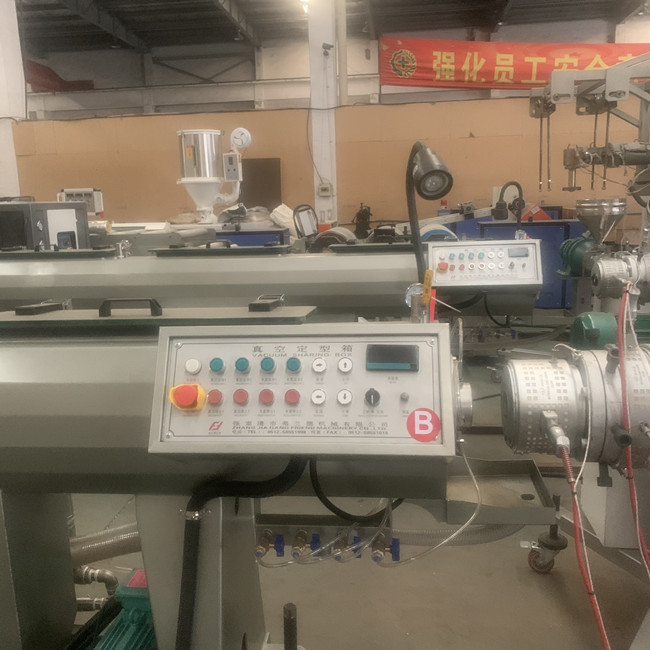

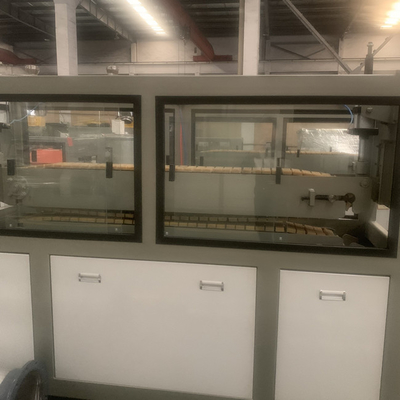

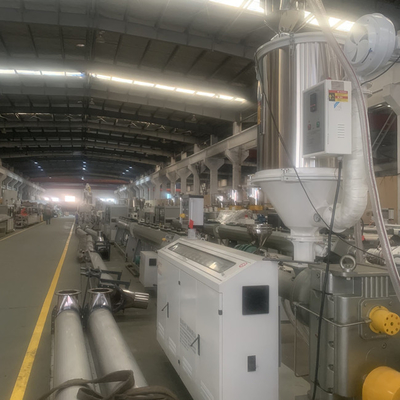

Small diameter PE pipe extruder is mainly used to produce agricultural irrigation pipe, drainage pipe, gas pipe, water supply pipe, cable pipe, etc. The unit consists of single screw extruder, die head, vacuum cooling tank, tractor, planetary (no chip / no chip / no dust cutting machine), cutting machine, winding machine, stacker, etc. Our production line is equipped with weight measuring device and ultrasonic device} thickness indicator. It can provide turnkey solutions, such as laser printer, crusher, crusher, chiller, air compressor, etc., to realize the automatic production of high-grade pipes.
Components
1) auto feeding loader with hopper drier
2)sj65/30 single screw extruder
3)die head and core bar,mouth molds
4)corrugator forming machine with forming mold
5)Double station rewinder
6)Auto wire device(optional)
Main Technical Parameters
| Pipe range(mm) | 16-63 | 20-110 | 75-160 | 90-250 | 110-315 | 160-450 | 315-630 | 500-800 |
| Extruder | 65/30 | 65/33 | 75/30 | 75/33 | 90/33 | 90/33 | 120/33 | 150/33 |
| Motor power(kw) | 30/37 | 55/75 | 75/90 | 90/110 | 132 | 160 | 280 | 335 |
| Capacity(kg/h) | 60-130 | 100-150 | 200-300 | 220-350 | 300-400 | 350-450 | 500-600 | 700-900 |
| Max speed(m/min) | 15 | 10 | 8 | 6 | 3 | 1.2 | 1.0 | 0.8 |
