Fully Automatic PE 100kg/H Plastic Pipe Machine With ABB Inverter

Minimum Order Quantity : 1 set Price : negotiation
Packaging Details : film packing and container Delivery Time : 30 making days
Supply Ability : 20 sets per year
Place of Origin: Jiangsu,China Brand Name: Friend
Certification: CE,SGS,UV Model Number: SJ65/30

Detail Information

Application: Pipe Inverter: ABB
Machinery Test Report: Provided Motor: Siemens Brand
Key Selling Points: Easy To Operate Warranty: 1 Year
Automatic Grade: Fully Automatic Color: Optional
High Light:

100kg/h Plastic Pipe Machine

,

PE Plastic Pipe Machine

,

ABB inverter PE Pipe extruder

Product Description

PE plastic pipe extruder machine/60-100kg/h output SJ plastic pipe machine



Description

The screw adopts a comprehensive mixing part with stop and mixing melting head, and the new slotted cylinder has good performance

Methods of plasticization and mixed melting. It ensures fast extrusion speed and good performance. And equipped with special extruder

The die head of PE large diameter thick wall pipe adopts the latest sharp top or basket technology with marking line to make the die more beautiful

Ensure stable and reliable extrusion. It adopts water film lubrication and water seal cooling system to adapt to the material

Requirements for sports. Ensure the stability of diameter and roundness when producing thick wall pipes at high speed. this

Specially designed multistage vacuum cooling device and special high-pressure cooling system ensure large-scale extrusion

Polyethylene pipe with diameter and high pressure grade. According to different pipes, the puller includes three claw, four claw and six claw pullers

The specification adopts ultra precision speed regulation system, and the operation is stable and reliable. Cutting machine adopts

Planetary cutting machine has a high degree of computer control automation and avoids a long maintenance cycle.



Application

1. Urban tap water pipe network system

Large diameter PE pipe is sanitary, non-toxic and non scaling. It is more suitable for urban water supply mains and buried pipelines, with safety, sanitation and convenient construction.

2. Agricultural irrigation pipeline

PE pipe has smooth interior, large flow, cross road construction and good impact resistance. It is an ideal tool for agricultural irrigation.

3. Industrial material pipeline

Chemical industry, chemical fiber, food, forestry, pharmacy, light industry, papermaking, metallurgy and other industrial raw material transmission pipelines.

4. Greening water supply network

Landscaping requires a large number of water pipes. PE pipes have good toughness and low cost, making them the best choice.

5. Sewage discharge pipe

PE pipe has unique corrosion resistance and can be used in industrial wastewater and sewage discharge pipeline with low cost and maintenance cost.



Features

1. Computer centralized control is adopted, which has the characteristics of stable production process, convenient operation, safety and reliability

Continuous production.

2. The feeding, selection, conveying, storage, fixation, supply and insertion of the dripper can be completed continuously

Synchronously. The conveying speed can be adjusted according to the production speed of the drip irrigation belt to ensure that the plastic dripper can be accurately transported to the bonding place of the drip irrigation belt, and then bonded firmly.

3. The unique structure, special materials and advanced processing technology of extruder screw, die and sizing cylinder make the raw materials plasticized evenly, the pipe wall smooth and the sizing accurate.

4. The vacuum water tank and cooling water tank are made of stainless steel. The vacuum degree of vacuum water tank is adjusted flexibly and accurately to maintain stability.

5. The production line adopts mechanical mode and PLC controls drilling water dripping. At the same time, waste residue recovery system is equipped. It has the characteristics of fast drilling speed and no residue.

6. The machine adopts duplex position rolling mode and has the function of non-stop roll change. The rolling length can be adjusted according to the actual needs.

7. For the detailed description of the relationship between production speed, emitter distance and emitter feed quantity, please refer to the manual, and for details, please refer to the manual.



Components

S/N Item name QTY Specifications

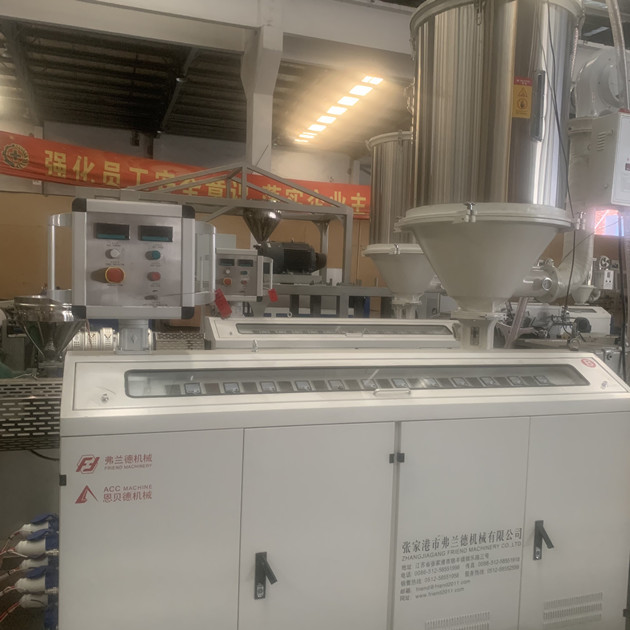

1

SJ65/33

Single screw extruder



1 set

Screw :

Diameter of screw: Ф65mm

L/D:33:1

Material of screw: 38CrMoAl

Surface treatment: Nitride processing, thickness: 0.5 ~ 0.7mm, Polishing

Barrel:

Material of Barrel: 38CrMoAlA

Inner processing: Nitride with thickness: 0.5 ~ 0.7mm

Heating zones: 5

Heating mode: Cast aluminum + stainless steel covering

Heating power: 15KW

Cooling power: 0.25KW×5

Method of cooling: air blow

Driving motor:

Motor power: 37KW ( DC motor )

Rotating speed: 7-94rpm

Main electric part :

HOLIP inverter ( Famous Chinese Brand )

OMRON temperature controller

Siemens contactor

Jiangyin brand gearbox

Zhoushan brand screw and barrel



Self protective system:

Over current protective of motor

Over pressure protective of screw

Weight:2500kg

dimension(L×W×H): 3000mm*950mm*1300mm



2

Molds (16-63mm)



1set

Material:

Made by 40Cr.

Inner surface polished

Calibration:

16-63mm (16,20,25,32,40,50,63 )

Connection head material : 45# carton steel

Match with mica heater

3

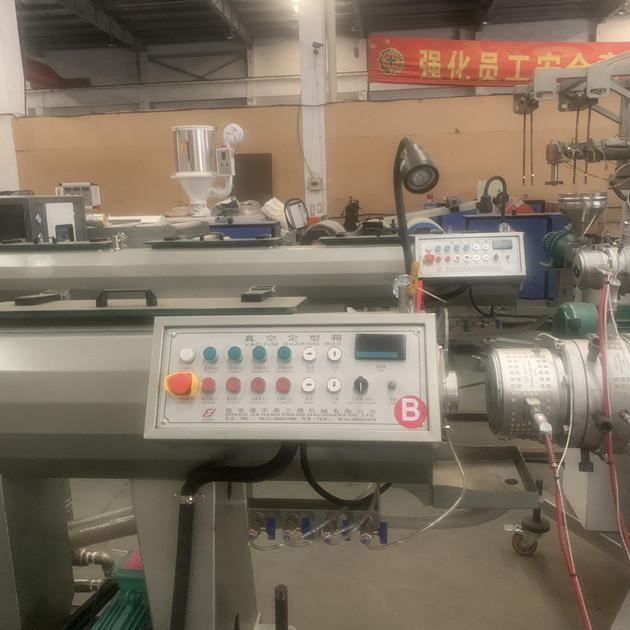

vacuum forming box



1set

Dimensions:

Length: 6000mm

Vacuum forming type : spray cooling

Spray head:

Vacuum pump:

SHANDONG vacuum pump

Power: 3 kw *2pcs

Water pump:

Power: 3kw*2pcs

SHANDONG vacuum pump

Moving motor power: 0.75kw

Tank material:

3mm thickness Stainless steel

Limit switch

Electric cabinet with water-proof protection

Water level control system

Water temperature control system

Outline dimension(L×W×H):6000*1490*600



4

Water spray cooling tank



1set

Dimensions:

Length:6000mm

Water pump:

Power: 4kw

Cooling type : spray cooling



Tank material:

3mm thickness Stainless steel

Limit switch

Electric cabinet with water-proof protection

Water level control system

Water temperature control system

Outline dimension(L×W×H):6000*1490*600

5

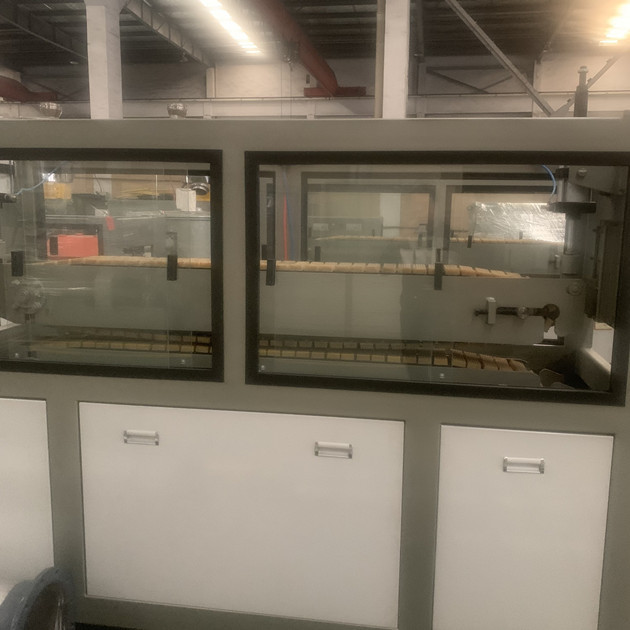

Two claw haul-off machine



1 set

Tracking type : Caterpillar

Haul off type : Two claw

Clamping length:(mm)1200

Up and down: ±90mm

Hauling speed:(m/min)0.1-2 or required

Center height:(mm)1000

Motor brand: Sima motor

Motor power:(kw)2.2kw

Outline dimension(L×W×H): 2790*2150*1400

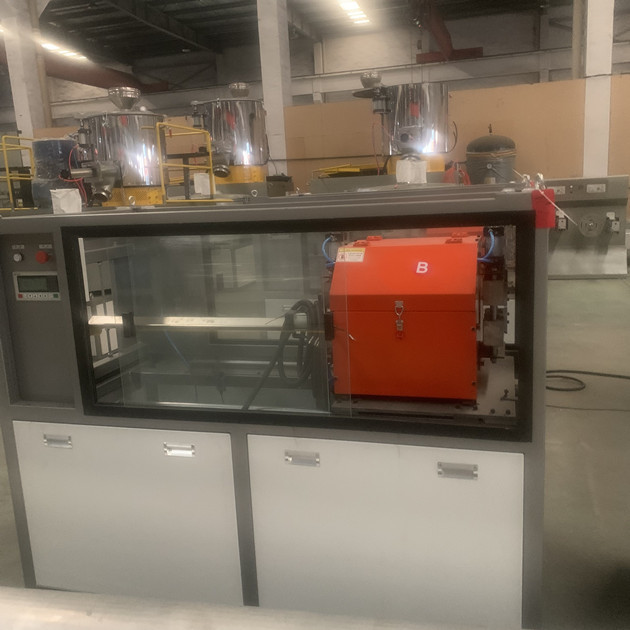

6 Pipe chipless cutting machine 1 set

Biggest cutting diameter(mm):20-63

Cutting blade material : high quality tooling steel

Cutting blade size : 350mm diameter

Cutting motor: pneumatic

Motor power(Kw):1.5kw

Pipe clamping type : Aluminum die clamped by air cylinder

Electrical system: Siemens contactors

Taiwan Tend terminal

PLC control

Up and down: ±90mm

Outline dimension(L×W×H): 2910*2170*1240



7

Stacker



1 set

Pneumatic discharging

Length:6,000mm

Up and down: ±90mm

Outline dimension(L×W×H): 6000*1300*1570

Could be customized by customer’s final pipe length



8

SJ25 single screw extruder



1 set

Screw :

Diameter of screw: Ф25mm

L/D:25:1

Material of screw: 38CrMoAl

Surface treatment: Nitride processing, thickness: 0.5 ~ 0.7mm, Polishing

Driving motor:

Motor power: 1.5KW

Main electric part :

HOLIP inverter ( Famous Chinese Brand )

OMRON temperature controller

Siemens contactor



9 Hopper Dryer 1 set

Type : 150L

Drying power: 6.35kw

Fan power: 750w



10 Automatic Loader 1 set

Type : Vacuum material loader

Motor: 0.75kw

Capacity: 200kg

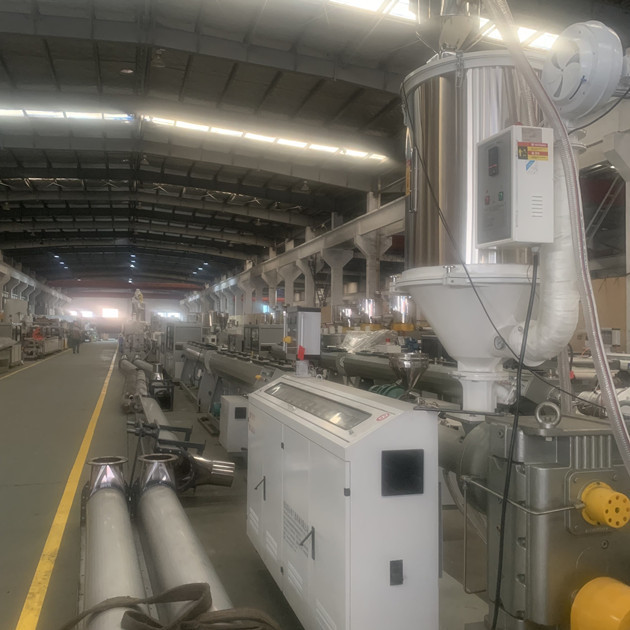

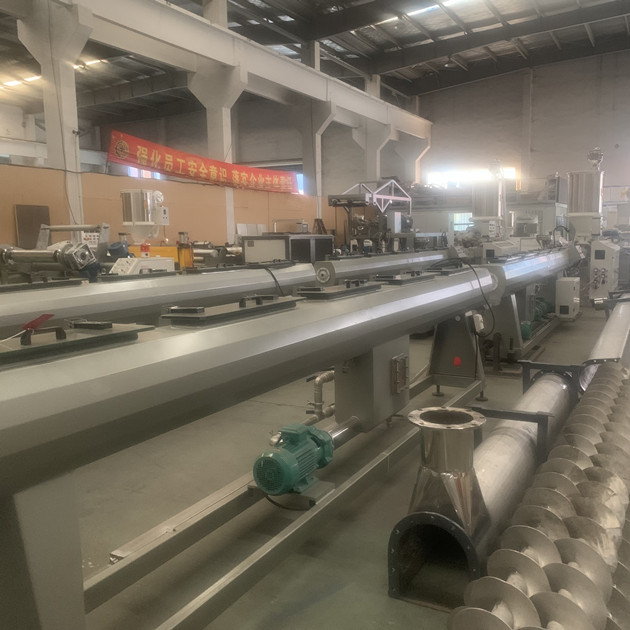

More Product Pictures
