|Length:||6 Meters Long||Capacity:||8-15kg/h|
|Control Way:||PLC Control||Material:||PLA,ABS|
|Delivery Time:||30 Days||After-sales Service Provided:||E Provided: Engineers Available To Service Machinery Overseas|

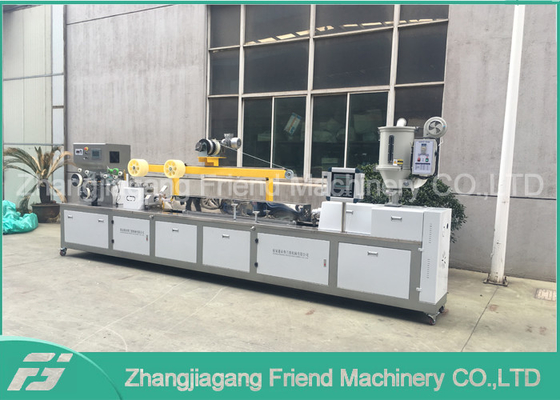

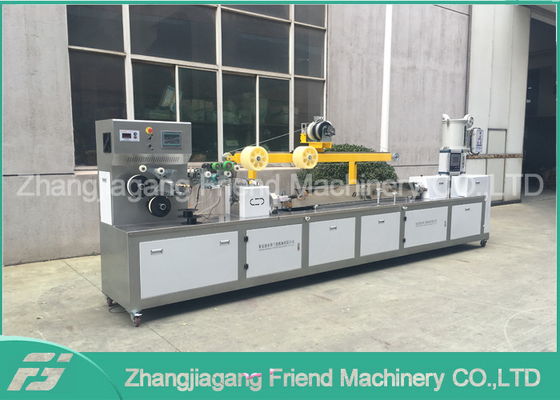

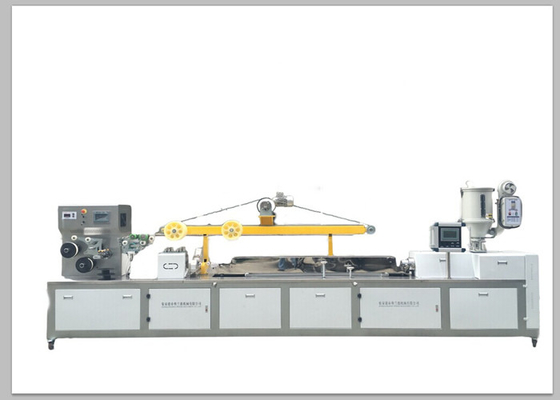

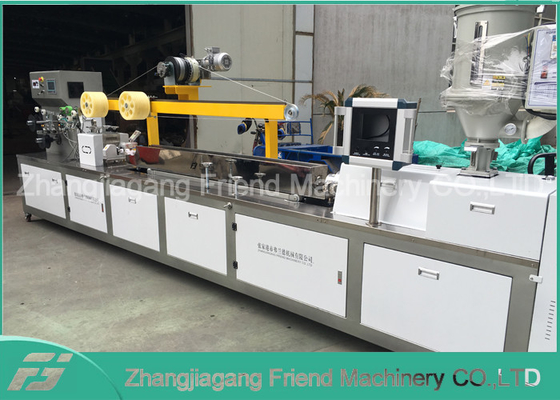

3D printer PLA ABS filament extrusion production line consists of single screw extruder, immersion bath type water tank, haul-off, winding machine etc, its control system consists of intelligent temperature control table,imported electrical components and converter. Main feature of this line: stable extrusion, good plasticizing effect, high degree of control precision, convenient operation etc..
1) High production capacity: More than 30-50meters/min.
2) High precision:Roundness controllable plus or minus 0.05 mm, measurement accuracy can reach 0.02 mm.
3) Stable quality: No hollow and different diameter as well other defects in one spool filament , precision equipment and processes to ensure user trust.
4) Low Energy Consumption :All energy saving frequency conversion control, production line of energy dissipation is only 10 degrees per hour.
5) Convenient operation capacity to learn: Easy learning, we could supply system training and ensure the customer could run the whole machine independently in 2 days.
6) Small footprint: 20 square meters can hold the whole production line.
1. We are a real factory, customer can get full technical supply and warranty.
2. We are supplier of alibaba for many years, our brand is guaranteed.
3. Our factory sells the machine directly, so the price is relatively cheap
4. We can offer special train to make the operation much easier.
5. We have been in this area for many year, we have a lot of experience.
SJ35 single screw extruder
|2||High precision extrusion mold||1 set|
|3||cooling water tank & hot water tank||1 set|
|4||Online laser gauge||1 set|
|5||Haul-off machine||1 set|
|6||Dual-Shaft Winding Machine||1 set|
|7||Voltage:380V 50HZ or customized
Name: Die head
1) High precision processing, stable extrusion and a variety of optional caliber
2) Die heating use thermocouple, PID control, temperature accuracy up to ±1℃
3) With high precision drive system, adopting closed loop control to ensure the extrusion pressure value and the target pressure difference value can be up to ±0.1mpa.
Name: Traction unit & Laser Diameter measuring
1) Laser Diameter measuring measures filament’s diameter on-line and has real-time feedback on filament diameter size. It also form a closed loop control with the traction motor,which adjust speed automatically and guarantee the stability of the filament diameter size, precision can be up to ±0.02mm.
Name: Touch screen
1) Supporting the use of Siemens touch screen and controller, the system runs stably and highly integrated.
2) Touch screen display all operations page of extrusion unit, traction unit and winding uni.It can generate "material temperature - time "curve, "die pressure - time" curve , "wire diameter - time " curve, and also can export to print with user demand.
Name: Winding unit
1) Winding gentle and no impact starting under any traction motor speed.According to storage capability of filament,it can automatically adjust the winding motor speed and stop winding when reach the set value.
2) Filament can be winding so neatly and tidy.The filament which is take-up neat not only looks nice but also has a better user experience.
