Double Shaft Design Waste Plastic Crushing Machine For Trash Can Pipe Paper

Minimum Order Quantity : One set Price : negotiation
Packaging Details : Wooden Package Delivery Time : 30 days
Payment Terms : L/C, D/A, D/P, T/T Supply Ability : 30 sets per month
Place of Origin: China Brand Name: FRIEND
Certification: CE,SGS,TUV Model Number: Double Shaft

Detail Information

Material: PP,PE,PET,PVC Shaft Design: Double Shaft
Capacity: 1-5tons Voltage: 380V Or Customized
After-sales Service Provided: Engineers Available To Service Machinery Overseas Blade Material: SKD-11
High Light:

plastic grinding machine

,

pvc crushing machine

Product Description

Waste Plastic Cruher Machine / Plastic Shredder For Trash Can Pipe Paper

Applications:

  • toxic hazardous industrial waste
  • industrial waste
  • solid urban waste
  • bulky waste
  • electronic equipment waste
  • refrigerator recycling
  • tire recycling
  • plastic recycling
  • glas and rock wool
  • paper shredding recycling
  • hospital waste
  • oil filter recycling
  • Garbage
  • Wood Pallet, Wood waste

Waste Plastic Cruher Machine / Plastic Shredder For Trash Can Pipe Paper Info:

Automatic control by Siemens PLC, with functions of start, stop, reverse, overload reverse automatically,with feature return and overload returns automatically, with characteristics of big torque in low speed and low noise. Convenient to change blade by split bearing block. Suitable for crushing the big solid material like television, washing machine, shell of refrigerator, big size pipe, pipe fittings, forklift splint, tyres, packing barrel, aluminum, copper and steel less than 5mm.





Technical Parameter:



Model TL600 TL800 TL1000 TL1200 TL1400
Main motor/kw 7.5+7.5 11+11 15+15 15+15 22+22
Shredding chamber/mm 600X450 800X600 1000X600 1200X600 1410X810
Rotator diameter/mm φ220 φ290 φ290 φ300 φ440
Rotation speed(r/min) 15 15 15 12 12
Rotating blade/pcs 60 48 60 100 100
Fixed blade/pcs 20 16 20 20 20
Blade thickness/mm 30 50 50 60 70
Dimension/L*W*H mm 1500x800x1600 26002x1000x2000 2800x1000x2000 3200x1000x2400 3400x1500x2650
Weight/kg 900 2200 3000 3800 5600






Features:



1. This product may shred big blocks of materials,basket materials,pipes,plates,wood,wheel and huge rolls of films,which are hard to be shredded on a single shaft shredder.

2. The outer frame is made of super thick plates with mixed structure after intensified processing,equipped with powerful hexagonal rotation axis with wide angles and huge-diameter inlet so that huge raw materials may be put inside and crushed.

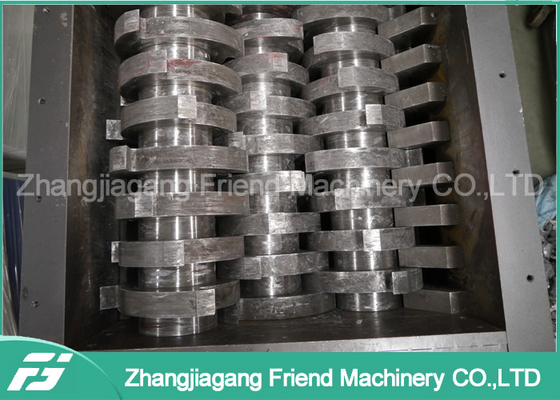

3. The rotary cutter has unique design in terms of thickness.This kind of crushing machine is sharp and keen enough to finish shredding work efficiently.

4. With PLC control, in case that there are too many processing materials, forward/reserve operation and stop function can be activated to ensure operating security.

5. Operation is in low speed with low noise and low poeder discharge during operation.

6. The blade is made of special alloy steel,which is hard and durable.



Low rotation speed,low noise volume,huge spinning distance.

Mechanical and appliance overloading protection is equipped inside for better shredding of huge and thick waste materials such as TV,washing machines,ridge enclosure,huge pipes,pipes,forlift support plate,wheels,package barrels,etc.

Tips: Shredders with appropriate blades may maximize shredding production or quality and might elongate service life of equipment.Therefore,our company provides such kind of blade tailoring service and welcome all customers to consult about it.
