110-315mm Plastic Pipe Machine Pvc Water Pipe Making High Speed Production

China 110-315mm Plastic Pipe Machine Pvc Water Pipe Making High Speed Production supplier
110-315mm Plastic Pipe Machine Pvc Water Pipe Making High Speed Production supplier 110-315mm Plastic Pipe Machine Pvc Water Pipe Making High Speed Production supplier 110-315mm Plastic Pipe Machine Pvc Water Pipe Making High Speed Production supplier 110-315mm Plastic Pipe Machine Pvc Water Pipe Making High Speed Production supplier

Large Image :  110-315mm Plastic Pipe Machine Pvc Water Pipe Making High Speed Production

Product Details:

Place of Origin: China
Brand Name: Friend
Certification: CE ISO
Model Number: SJSZ

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 25000-100000$
Packaging Details: Film package
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Condition: New Application: Pipe
Screw Design: Double-screw Voltage: 380V 50HZ 3Phase(Customized)
Weight: 2-10T Plastic Processed: PVC
After-sales Service Provided: Engineers Available To Service Machinery Overseas

110-315mm Plastic Pipe Machine Pvc Water Pipe Making High Speed Production



PVC one cavity production line

Φ20-Φ630 series PVC pipe extrusion machine line is mainly used in the manufacture of plastic PVC pipes with various diameters and wall thickness used in the industries such as agricultural and constructional plumbing,cable laying etc. This line is composed of conical twin screw extruder,Vacuum calibration tank,haul off,motors,cutter and stacker etc. The extruder and haul off methods are two-claw,three-claw four-claw,six-claw,eight-claw,ten-claw,twelve claw etc. You may choose saw blade cutting type or planetary cutting type. It is aditionaly attached with length counter and intensifying device.



PVC double-pipe production line

The production line is developed with the advanced technology of west Europe by our company. The main machine is SJSZ55/120 or SJSZ65/132 conical twin screw extruder is equipped with double-tube single control stainless steel spraying calibration,it avoids waste condition when one tube is adjusted and the other one is affected. The auto single-control double drawing machine and cuting machine are combined with the front double calibration technology to make operation more flexible let you enjoy economic benefit which is brought by separate-control double tube extruding.



PVC four cavity production line

Four cavity PVC electrical tube,water supply pipeextrusion line can extruder four pipes at same time on one machine.This line can save investment cost in factory buiding and production,which increase the capacity a lot and reduce production time. The production speed take 16mm as example can get more than 8-10m/min.The whole line is composed of conical twin-screw extruder 65mm,4 cavity mould,4 cavity coling calibration tank,4 station haul off,4 station cutter and 4 station tipping table.





Technical Parameter

Mode



Pipe range

(mm)

extruders



Max. output

(kg/h)

Max. speed

(m/min)

Total power

(kw)

Line length

(m)

PVC-50x2 16-50 SJSZ51/105 150 6m 60w 20m
PVC-63 16-63 SJSZ45/90 120 10m 45w 20m
PVC-110 50-110 SJSZ51/105 150 6m 60w 24m
PVC-160 63-160 SJSZ65/132 300 5m 100w 24m
PVC-250 110-250 SJSZ80/156 400 3.5m 120w 28m
PVC-315 160-315 SJSZ 80/156 400 3m 160w 28m
PVC-450 250-450 SJSZ 92/188 700 1.5m 200w 36m
PVC-630 315-630 SJSZ92/188 700 0.9 230kw 36m

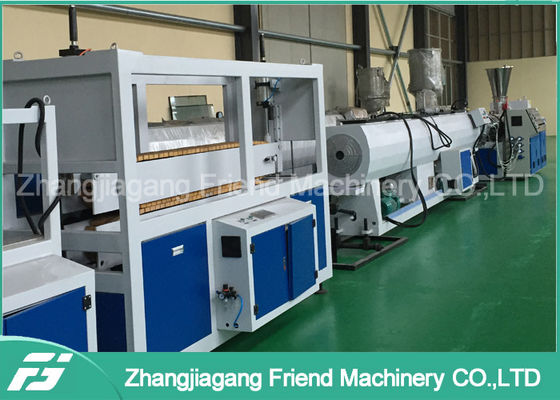

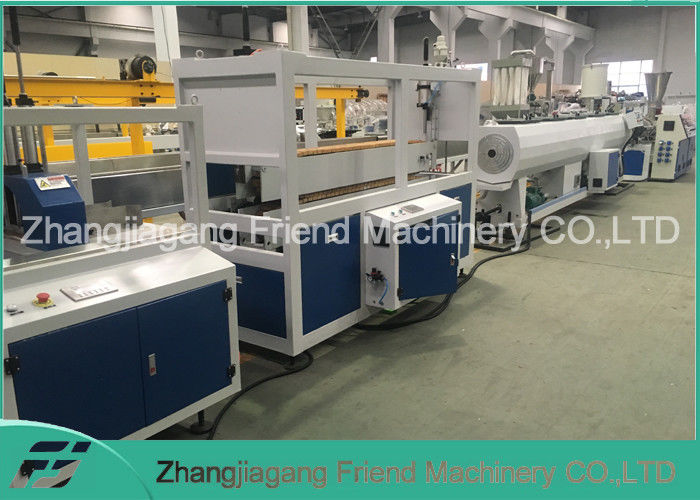

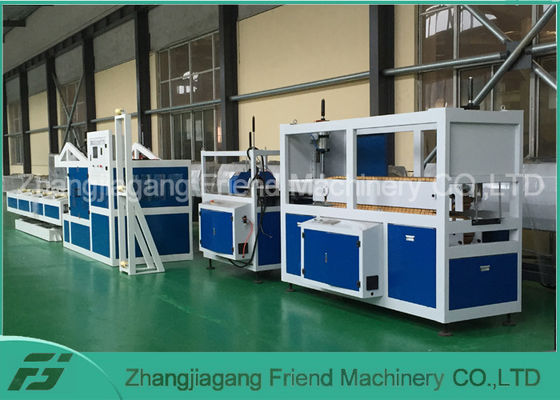

Pictures:

110-315mm Plastic Pipe Machine Pvc Water Pipe Making High Speed Production

110-315mm Plastic Pipe Machine Pvc Water Pipe Making High Speed Production
