Mini Parallel PET Plastic Recycling Line Double Screw PET Pelletizing Machine
Contact Person : Coco
Phone Number : +8618013292369
WhatsApp : +8618013292369
Detail Information |
|||
Crusher Power: | 37 Kw | Motor Brand: | Siemens Beide |
---|---|---|---|
Raw Material: | Plastic Bags/film | Finial Product: | Plastic Granule/flakes |
High Light: | plastic film recycling machine,plastic bag recycling machine |
Product Description
Plastic woven bags/film recycling equipment plastic recycling line 200kg/h, 500kg/h, 1000kg/h
Application
Machine configuration
Name: | Power: |
Belt conveyor | 2.2kw |
Mechenical label remover | 22kw |
Manual separating table | 1.5kw |
Metal detector | 0.4kw |
Belt conveyor | 2.2kw |
Crusher | 55kw |
Screw conveyor | 2.2kw |
Floating washer | 2.2kw+2.2kw+2.2kw |
Screw conveyor | 2.2kw |
Hot washer | 36kw |
Screw conveyor | 2.2kw |
High speed frication machine | 22kw |
Screw conveyor | 2.2kw |
Floating washer | 2.2kw+2.2kw+2.2kw |
Screw conveyor | 2.2kw |
Vertical dewatering machine | 11kw |
Drying system | 36kw+7kw |
Zig Zag air classification system | 11kw |
Storage hopper | |
Control cabinet |
Features
We can design different pet bottle recycling line according to your requirements:
Technical parameters
Input Capacity | 500kg/h | 1000kg/h | 2000kg/h |
Workshop(M*M*M) | 35(L)*10(W)*6(H) | 45(L)*10(W)*6(H) | 55(L)*15(W)*6(H) |
Ancillary Staff | 4 Persons | 6 Persons | 8 Persons |
Installation Power | 156kw | 298kw | 386kw |
Water Consumption | 2 Ton/h | 3 Ton/h | 4 Ton/h |
Final Product |
Moisture:max1% Bulk density: 0.3G/CM3 Particle size: 1-12mm Metal content: max20ppm Floatable contamination: less than 200ppm Total impurity: 250ppm |
Moisture:max1% Bulk density: 0.3G/CM3 Particle size: 1-12mm Metal content: max20ppm Floatable contamination: less than 200ppm Total impurity: 250ppm |
Moisture:max1% Bulk density: 0.3G/CM3 Particle size: 1-12mm Metal content: max20ppm Floatable contamination: less than 200ppm Total impurity: 250ppm |

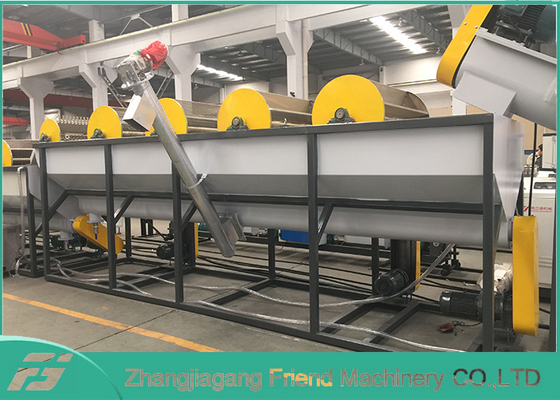

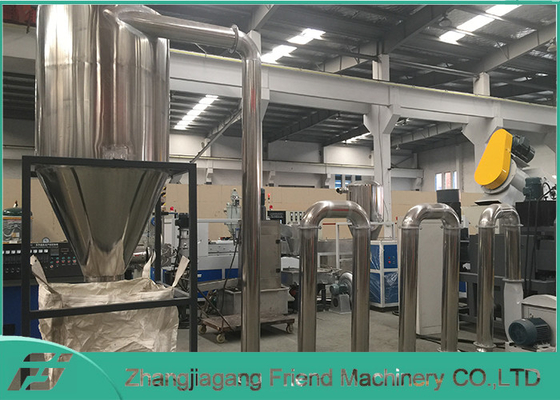

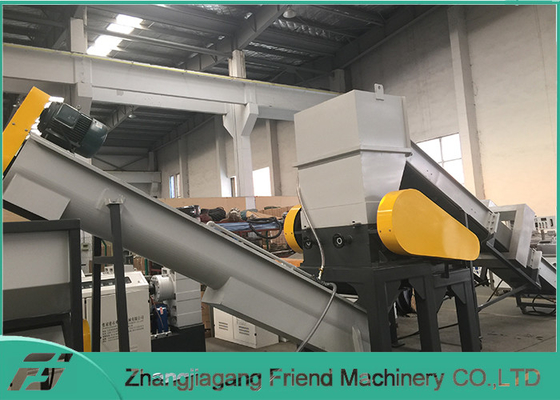

Machine pictures
