Pe Ps Waste Plastic Making Pe Pelletizing Machine Granulation Production Line
Contact Person : Coco
Phone Number : +8618013292369
WhatsAPP : +8618013292369
Minimum Order Quantity : | 1 Set | Price : | negotiation |
---|---|---|---|
Packaging Details : | film packed and wooden case | Delivery Time : | 15-30 days |
Supply Ability : | 100 sets per year |
Place of Origin: | Jiangsu,China | Brand Name: | Friend |
---|---|---|---|
Certification: | SGS,CE | Model Number: | MP-20 |
Detail Information |
|||
Application: | Plastic Masterbatch Making | Motor: | SIEMENS Brand |
---|---|---|---|
Pelletizing Speed: | Controlled By ABB Inverter | Screw L/D: | 28:1 |
Color: | Gray | ||
Highlight: | ABS plastic recycling granulator,Masterbatch plastic recycling granulator,Masterbatch industrial plastic granulator |
Product Description
Testing TypePP PE ABS Masterbatch Production Line For Lab Application
ccording to buyer's different requirents , we design and make granulating machine .
there are so many kinds of plastic materials , same machine's capacity also different.
the machine's different showing on the following characters:
A. extruder. according to different material and processing need, we have single screw extruder, conical screw extruder , parallel twin screw extruder , double stage extruders.
B. cutting . according to different material and processing need , we have water cooling strips (noddle) cutter method,
water circu cooling cutting method, air cool hot cutting method , and others.
when we offer you the machine , we will make the proposal according to your materials and your capacity need. the followng is some introduction of the machines.
c. ABB ,LG,SIEMENS,RKC,OMRON , Mitsubishi and other world famous and stable machine control sysytem be adopted .
Detailes
specifications |
||

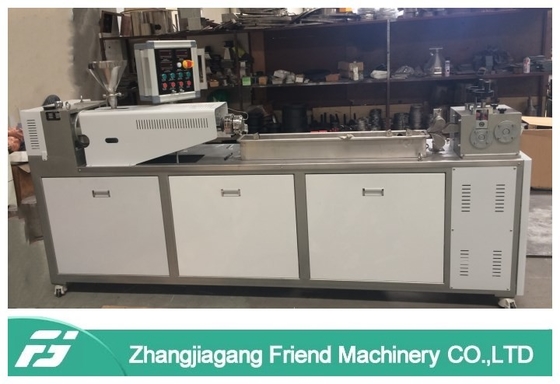

1 | Single-screw extruder lab | performance from 0.7-1 kg per hour. Should mix different type polymers in different forms - powder, granules.. |
The kit should include: |
||
1.1 | The drive unit and the control unit |
Drive and control unit must be mounted in a independent cabinet. Derivation of the drive must be connected single screw extruder unit. Specifications are as follows: Power induction motor power is 0.75 kW; Changing the speed of the motor should be performed by an electronic frequency converter 3 to 150 rev / min; The maximum temperature 320 C; The number of heating zones of the extruder 2; The number of heating zones of the head 1; Type temperature controller to be OMRON brand digital; The temperature measurement made of low mass thermocouple type K The total power 2.5 kW; Power supply voltage 3 phase 380 V, 50 Hz; Accessories: Brushes / Tools; Total weight 150 kg; The dimensions should be as follows: a width 520 mm; height is 520 mm; length of 520 mm. |

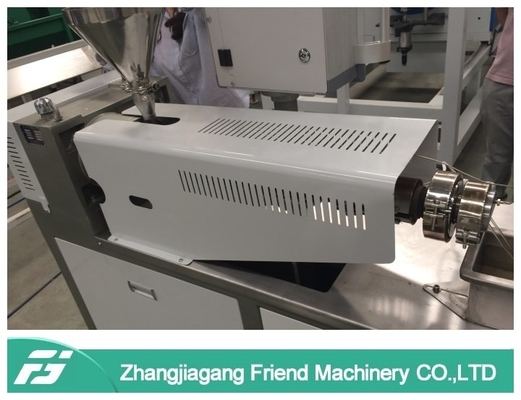

1.2 | single -screw laboratory extruder unit | Specifications are as follows: The number of screws 1; Screw diameter 20 mm; The length of the screw: 28:1; There must be a one-way rotation of the screw; The maximum temperature 350 C The number of heating zones of the extruder 2; The number of heating zones of the head 1; Must be an annular ceramic heater heating system; screw and barrel: Hardened steel; It must be cooled feed zone; There is a degassing zone; Hopper 1 liters; The hopper material is stainless steel. match water pump for cooling water recycling |

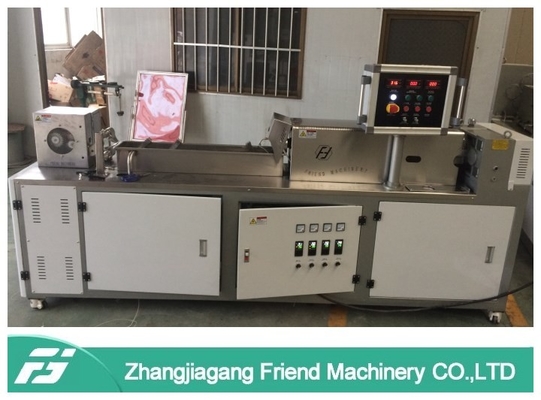

1.3 | control system | Independent control box ABB inverter , siemens contacter , omron temperature controller jiangyin brand gearbox , zhoushan brand screw and barrel , jiangsu xindali brand motor ,ceramic heater ,40Cr steel mold ,304stainless steel water cooling tank , matched with force fan cooling , pelletizer blade is 9CrSi steel material , pellet cutting speed controlled by ABB inverter . adopt removable machine design , easy and safe operation , long use lifehigh efficiency and lower consumption, 1 year warranty time , 24 hours service after sale |
FAQ
1. Q: If I need the machine urgently, what will you do?
A: We have some machines in our warehouse, if the machine match your demands, we can ship the machine to you within 7days after testing.
2. Q: If my machine can not work when I receive it, what will your factory do?
A: First of all, do not worry about the thing, we will test the machine before shipment. And if it happened, we will send our engineer to your factory to repair the machine.
3. Q: If my machine is broken within one year, what your factory will do?
A: Just send us some pictures and our engineer will analysis the reason, and send you broken parts for free.
4. Q: How can I believe your factory and machines.
A: We have CE, ISO certificates. And we have customers all around the world, we can test the machine after it finished and you check, if it can not reach your demands, we will change, or even give back your deposit.
5. Q: How many days needed to finish the machine and what is about the payment?
A: Normally we use T/T payment. And normal machine need 30 working days. If we have the same machine in storage, it can be finished with 7 working days.
