Conical Twin Screw Extruder PVC Pelletizing Line With PVC Powder / Calcium Material
Product Details:
| Place of Origin: | Jiangsu,China |
| Brand Name: | Friend |
| Certification: | CE,SGS |
| Model Number: | SJSZ-65/132 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | film packed and container |
| Delivery Time: | 25-30 days |
| Payment Terms: | Western Union, L/C, T/T |
|
Detail Information |
|||
| Material: | PVC Powder And Calcium | Mixing Processing: | High Speed Mixer |
|---|---|---|---|
| Inverter: | ABB Inverter | Motor: | SIEMENS Brand Motor |
| Temperature Controller: | Omron | Breaker: | DELIX Brand |
| Max Capacity: | 250kg/h | ||
| High Light: | waste plastic recycling pelletizing machine,pvc granules making machine |
||
Product Description
250kg/h PVC/Calcium mixing and granulating machine Calcium content 1%~70% Hard PVC plus calcium powder
Application
1. PVC granules machine/hot cutting pelletizing line is for PVC hot cutting is composed by a conical twin-screw extruder and the correspondingly pelletizing downstream equipment, it is suitable for the pelletizing of PVC,PE raw materials with wood powder or other additives.
2. The pellets produced by this machine is evenly, solid, elegance.
3. The pelletizing downstream equipment is the die face cutter, air transferring unit, vibration separating and cooling unit. This pelletizing downstream equipment has the features of high automation and high production efficiency.
4 It can fine plasticizing, high productive efficiency, impact construction in the whole machine and high automatization, adopts conical twin screw installs on the extruder
5. PVC material mixture with other materical,such as: CaCO3, CPE, static, wax and so on. The granules/ pellets can be used to producing PVC profiles and shoes, and so on.
This machine can be used for different area such as:
PVC pipe making;
PVC profile making;
PVC board making;
WPC profile making.
We not only make machines, we can also provide products making formula.
PVC resin, Caco3, stabilizer, DOP, CPEACR
Machine process: Screw loader-------Mixing unit ---------screw loader---------SJSZ-65/132 conical twin screw extruder----------Hot cutting mould--------3 stages fan cooling system-----vibrating screem ------silo
| Model | SJSZ51/105 | SJSZ65/132 | SJSZ80/156 | SJSZ92/188 |
| Main extruder power(kw) | 18.5 | 37 | 55 | 90 |
| Heating powder(kw) | 15 | 24 | 36 | 87 |
| Wind send motor power(kw) | 2.2 | 3 | 4 | 4 |
| Cutting motor power(kw) | 1.1 | 1.5 | 2.2 | 2.2 |
| Production capacity(kg/h) | 120-180 | 150-250 | 250-450 | 500-700 |
| Cutter diameter(mm) | 200 | 250 | 280 | 320 |
| Granule size (mm) | 3*3 | 4*4 | 4*4 | 5*4 |
Spare Parts:
| 1. | Tool bag | 1set |
| 2. | Ceramic plug | 2pcs |
| 3. | high-temperature wire | 5m |
| 4. | thermoelectric couple | 2pcs |
| 5. | contacter | 2pcs |
| 6. | Installation Manul | 1pcs |
| 7. | Placing drawing | 1pcs |
| 8. | circuit diagram | 1pcs |
Warranty
1. We not only provide machines but also offer technical guide and market evaluate.
2. We will provide all the machines for the complete production according to customer's requirements.
3. We will provide complete service for factory layout and other information to help customer to build the factory.
4. We will provide good service for machine installation and training, until the customers can run the machines and make stably production.
5. Except one year quality guarantee, we will provide after-sell service for all the life.
6. For long-term cooperation, we always provide good quality, good price and good service to customer.

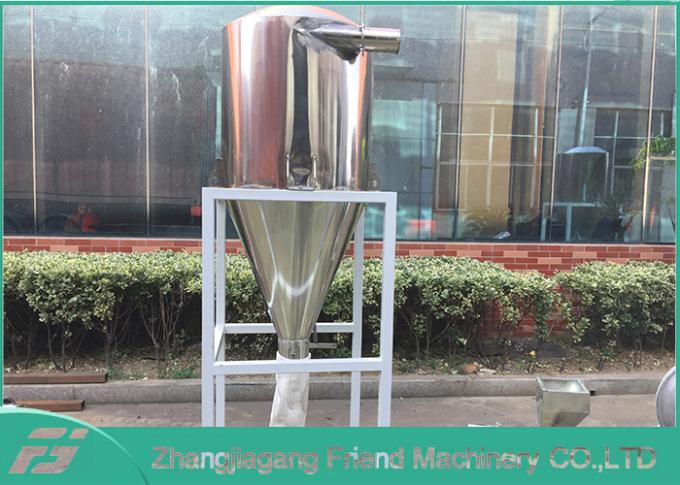

Machine image
