Hot Cut Type PVC Pelletizing Extruder Machine For PVC Granules Making

Hot Cut Type PVC Pelletizing Extruder Machine For PVC Granules Making

Product Details:

Place of Origin: Jiangsu Province, China
Brand Name: Friend
Certification: CE and SGS
Model Number: SJSZ65/132

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD30000-60000$/SET
Packaging Details: standard film package, then in container.
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 SETS per Month
Get Best Price Contact Now

Detail Information

Material: PVC Resin Powder Color: Black Or White Granules
Capacity: 200-600kg/h In Different Range Cutting Type: HOT-CUT Type
Extruder: Conical Twin Screw Plastic Extruder PVC Material Model: SG-5
Granules Type: Soft Pvc Granules, And Hard Granules Vibrating Seive: 3 Layres
High Light:

Hot Cut plastic granulator machine

,

PVC pelletizing plastic recycling granulator

,

Hot Cut plastic recycling granulator

Product Description

Hot-Cut Type PVC Pelletizing Extruders and PVC Pelletizing Machine for PVC Granules Making





We offer you twin screw extruders in conventional design or with EMS function for PVC pelletizing. For higher output and special compounds we have planetary roller extruders in two-stage design in our portfolio. In combination with our pelletizing heads, they form in a perfectly matched system for PVC pelletizing and compounding.With the help of our professionals we have been able to offer our clients qualitative range of Extruder With Die Face Air Cooling Type that is manufactured according to set industry norms. In order to cater the diverse requirements of our clients, this machine is provided in different standards and numerous customization options. Moreover, clients can avail the entire range of machine at industry leading prices within promised time frame.





Twin Screw control all technical procedures from R&D, design, manufacturing, finishing, to service. These fine products come from our home-made core unit and all the sophisticated equipment. We help our customers solving their essential problems by providing professional and flexible total solution more than just a twin-screw extruder.

Description:


TWIN SCREW EXTRUDER for PVC Pelletizing Extruders and PVC Pelletizing Machine for PVC Granules Making:



With two parallel counter-rotating screws for the palletizing.
Reduction and torque-distribution unit with hardened, ground shafts and gear.
Long service life for the processing units due to lower specific drive energy.
Increased process reliability due to modern control technology.
Easy maintenance and service.





DIE FACE CUTTING:



Hinge flange type.
High speed rotation of the knives.
Continuous production of granulate.

VIBRATION COOLER

Up & Down two vibrating bed.

SILO TANK

Stainless steel.

For more technical information please download the catalogs or you can always contact us.





With different designs of screw, this machine can be applied to granulate the recycled material of rigid PVC, soft PVC and waste PVC.

It can be stopless in the course of production. It uses pneumatic conversion and strong-wind blowing.

At the same time can adjust stainless steel storage container and can run at high speed for a long time while extrude stably.





Technical parameters of PVC hot cutting pelletizing machine line :



Model SJSZ-45 SJSZ-50 SJSZ-55 SJSZ-65 SJSZ-80 SJSZ-92
Screw dia(mm) 45/90 50/105 55/110 65/132 80/156 92/188
Screw speed(r/min) 3-34 3-37 3-37 3.9-39 3.9-39 4-40
Main motor(kw) 18.5 22 27 37 55 100
Barrel heating power(KW) 15 10 18 28 38 70
Capacity(kg/h) 100 120 150 260 400 800
Centre height of machine(mm) 1000 1000 1000 1000 1000 1100
Net weight(kg) 3000 3200 3500 4000 5000 7000

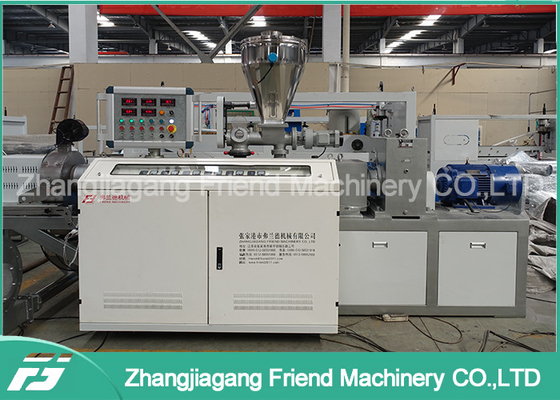

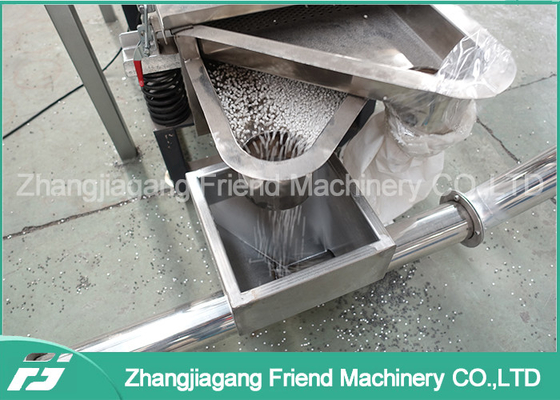

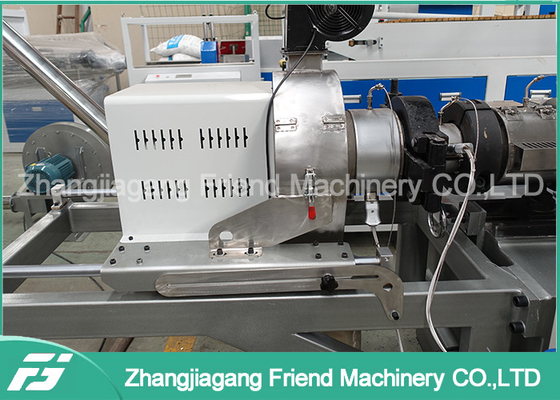

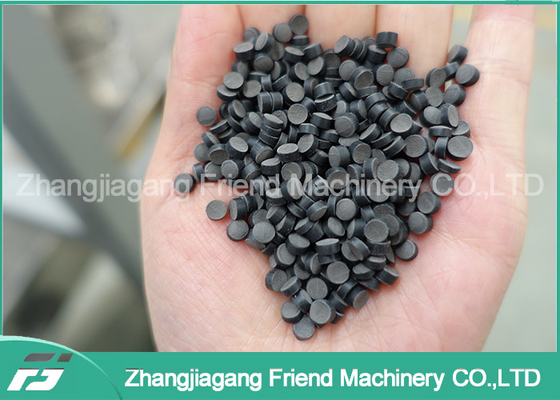

Detailed pictures as folllows :



Hot Cut Type PVC Pelletizing Extruder Machine For PVC Granules Making 0Hot Cut Type PVC Pelletizing Extruder Machine For PVC Granules Making 1
