• Lab Type 2kg PLC Control PVC Plastic Recycling Pelletizer Machine

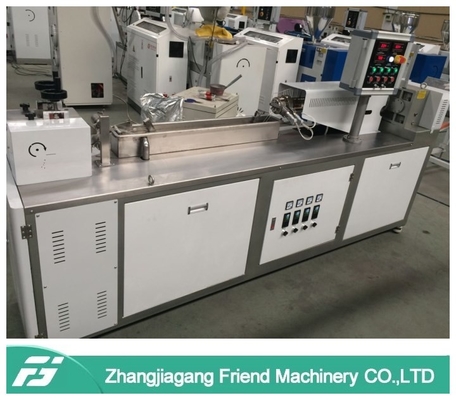

Lab Type 2kg PLC Control PVC Plastic Recycling Pelletizer Machine

Lab Type 2kg PLC Control PVC Plastic Recycling Pelletizer Machine

Product Details:

Place of Origin: Jiangsu,China
Brand Name: Friend
Certification: SGS,UV,CE
Model Number: SJ

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: film covered and wooden case packing
Delivery Time: 30 making days
Supply Ability: 120sets per year
Get Best Price Contact Now

Detail Information

Application: Plastic Pellet Testing Making Capacity: 1-3kg/h
Extruder Type: Single Screw Extruder Motor: Siemens Brand
Inverter: ABB Brand Temperature Controller: Omron Brand
Contacter Brand: SIemens Brand Color: Optional
High Light:

PLC plastic recycling pelletizer machine

,

2kg pvc pelletizing machine

,

Lab Type pvc pelletizing machine

Product Description

Lab Scale Plastic Hot Cutting Pelletizing Granulating Machine With PLC Control



Application:



This Lab Scale Plastic Hot Cutting Pelletizing Granulating Machine With PLC Control is mainly used for small scale plastic pellet or masterbatch making , material formula making , This unit has adopted removable machine structure and high quality machine parts zhou zhan brand screw and barrel , ABB inverter ,siemens contacter , omron temperature controllers ,xindali brand motor , good steel material mold, 9CrSi steel pelletzing cutting blade , pellet cutting speed is controlled by ABB inverter ( re , easy and safe operation , long uselife and lower noise and power consumption .



Feature:

  1. The machine is mainly used in extruding soft and hard thermoplastics, such as polyviyl chloride(PVC),polyethylene and others. It is used with relevant auxiliary machine (including shaping machine head)to produce several kinds of plastic products, for example: film, pipe, rod, plate, thread, cable insulating layer, hollow product. It is also used of prilling

       2. SJ series single screw extruder is composed of screw and barrel, a power transmission system,                  heating, cooling and electrical control. Mainly used in PE, PP, ABS, PS, PET pipe, plate, sheet, film,            profile, Granulation plastic products such as the mixing and extrusion molding.



Machine technoical parameter:

Model No. SJ30
Screw Diameter 30 mm
Screw Material 38CrMoAlA
Hardness of Screw HV900-1000
Depth of Nitrogen Treatment 0.4-0.7 mm
Screw Straightness <0.015 mm
Screw Compression Rate 3:1
Barrel Material 38CrMoAlA
Barrel inner surface hardness HV≥940
Main Motor Power 1.1KW
Heating Method Cast aluminum Heater+ 304stainless steel cover
Heating temperature range 0-300℃
Heating Zones 3 Periods(Screw Barrel 3periods )
Heating Power: 1.1KW*3=3.3KW
Barrel Cooling Method: Forced Air Cooling
  Fan power: 60w*3=0.18kw
  water jacket cooling
Screw Maximum Rotating Speed 0-89 rpm
Maximum Capacity 2Kg/h
2,Main Parts:
Name: Manufacturer:
Main Motor

AC Motor ( china brand with CE marketed )



Screw and Barrel Zhou shan Jinjiu Screw
Gearbox china brand
Reduction ratio 16:1
Control box
Electrical System

Siemens Contactor

OmronTemperature Control Meter

Converter ABB Frequency Converter
Breaker Delix brand
Ampere meter AoYi brand

Note: extruder adopt 304Stainless steel hopper , and 45# flange for easy clean and

dismantle



Lab Type 2kg PLC Control PVC Plastic Recycling Pelletizer Machine 0Lab Type 2kg PLC Control PVC Plastic Recycling Pelletizer Machine 1

Clause & Service:



Installation and Debugging:
Pre-sale: we given client the details technician offer, sign the sales contract etc.
In-sales: we supply the details layout, installation instruction, technician support for the clients.
After sales: we arrange engineer to install the machinery and training the workers for client. We always up date the new technology to every customer.



Delivery and Shipping:

After the contract comes into effect, buyer pay deposit, we will start to produce. When all the machines are completed, buyers come to factory to observe and test machine by themselves, until all the machines are satisfied with the buyers, they can pay for the other balance. Our company arrange to shipping goods to buyer. We provide the goods to be shipped by air or by sea. Pictures of cargo loading will be sent to every client to check and keep recording.



Package:

Packing with film, pallet or wooden case.(according to customers' request).



Guarantee:

We provide one-year warranty guarantee for all the machines. We supply long term spare parts for every customer.



Certificate: CE, ISO9001.2008.
