Pe Ps Waste Plastic Making Pe Pelletizing Machine Granulation Production Line
Contact Person : Coco
Phone Number : +8618013292369
WhatsApp : +8618013292369
|Minimum Order Quantity :||1 set||Price :||negotiation|
|Packaging Details :||film covered and wooden case||Delivery Time :||25-30days|
|Supply Ability :||100sets per year|
|Place of Origin:||Jiangsu,China||Brand Name:||Friend|
|Suitable For:||Film Scrap And Roller||Processing Type:||Compressing And Plasticizing|
|Pellet Size:||3mm Diameter||Motor:||Siemens Brand|
Film Scrap hdpe pelletizing machine,
1000kg/h hdpe pelletizing machine,
Film Scrap pp pelletizing machine

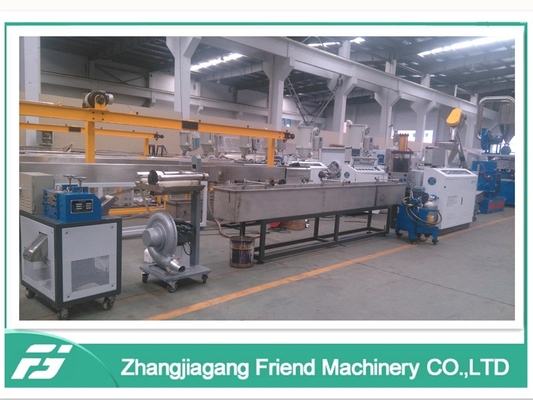

SJ65 HDPE LDPE PP Film Cold Strand Pelletizing Granulating System
* This SJ65 HDPE LDPE PP Film Cold Strand Pelletizing Granulating System is designed and manufactured by Friend Machinery, which is widely used for waste plastic PE PP soft material, such as clean HDPE, LDPE, LLDPE film flakes, clean PP woven bag, etc.
* The material go through compressing system, plasticizing system,water cooling system, pelletizing system and collect system will turn to be clean perfect pellets for reuse.
* You can choose twin stages or single stage extruder according to the cleanliness of your material condition and capacity requirements.
* This plastic pelletizing line can be displayed "L" or "U" shape according to clients' workshop size .
* We also provide plastic crushing washing recycling line to get clean dry flakes or film from dirty waste material.
* We can also customize the pelletizing line according to client's material and product requirement.
* Working Flow (Strand-Cooling Cutting Pelletizing Line)
1. Automatically working, conveying material, plasticizing, extruding, cooling, drying, cutting, collecting.
2. High efficiency, safety control, capacity from 150-1000 kg/h.
Worker put film or bag into Agglomerator---------plastic ball---------screw loader feeds plastic into extruder
hopper----------extruder plasticizing process( vent screw )---------Hydraulic network(for impurity sorting)-----
----Mold ( for 3mm diameter pellet ) ---------water bath cooling--------forcecoolingfan ( for cooling and
water blowing )---------pelletizer (could adjust pellet length by adjusting cutting speed )---------Vibrating
Screen ( for sorting good quality and size pellet )
---- Compactor: With multi blades crushing and compulsively compress the film into extruder.
---- Single Screw Extruder : Plasticizing material with high temperature and exhausting hot gas.
---- Hydraulic Screen Exchanger: Filter material impurity to make production more stable.
---- Die Mold: Materials come out in long strand.
---- Water Cooling Tank: Cooling the strap with cold water.
---- Force Air Drying System: Drying the strand.
---- Pelletizer Cutter: Cutting the strap into pellets with high speed rotation.
---- Vibration Screen: Pick out bad pellets and keep good pellets.
---- Air Blower: Blower push pellets into the silo.
---- Storage Silo: Collecting pellets, made by high quality stainless steel
---- Control Cabinet: Control the whole line on/off (adopt famous brand such as Schneider, Siemens, etc.)
* Technical Parameter
|Model||Screw Diameter||Screw L/D||Main Motor Power||Capacity|
Clause & Service:
Installation and Debugging:
Pre-sale: we given client the details technician offer, sign the sales contract etc.
In-sales: we supply the details layout, installation instruction, technician support for the clients.
After sales: we arrange engineer to install the machinery and training the workers for client. We always up date the new technology to every customer.
Delivery and Shipping:
After the contract comes into effect, buyer pay deposit, we will start to produce. When all the machines are completed, buyers come to factory to observe and test machine by themselves, until all the machines are satisfied with the buyers, they can pay for the other balance. Our company arrange to shipping goods to buyer. We provide the goods to be shipped by air or by sea. Pictures of cargo loading will be sent to every client to check and keep recording.
Packing with film, pallet or wooden case.(according to customers' request).
We provide one-year warranty guarantee for all the machines. We supply long term spare parts for every customer.
Certificate: CE, ISO9001.2008.
