1000kg/H PP Film Scrap Hdpe Pelletizing Machine 3mm Diameter

Minimum Order Quantity : 1 set Price : negotiation
Packaging Details : film covered and wooden case Delivery Time : 25-30days
Supply Ability : 100sets per year
Place of Origin: Jiangsu,China Brand Name: Friend
Certification: SGS,CE,UV Model Number: SJ65

Detail Information

Suitable For: Film Scrap And Roller Processing Type: Compressing And Plasticizing
Pellet Size: 3mm Diameter Motor: Siemens Brand
Inverter: ABB Brand Color: White
High Light:

Scrap Hdpe Pelletizing Machine

,

3mm diameter Hdpe Pelletizer

,

Film Scrap Hdpe Pelletizer

Product Description

SJ65 HDPE LDPE PP Film Cold Strand Pelletizing Granulating System



Introduction


* This SJ65 HDPE LDPE PP Film Cold Strand Pelletizing Granulating System is designed and manufactured by Friend Machinery, which is widely used for waste plastic PE PP soft material, such as clean HDPE, LDPE, LLDPE film flakes, clean PP woven bag, etc.


* The material go through compressing system, plasticizing system,water cooling system, pelletizing system and collect system will turn to be clean perfect pellets for reuse.


* You can choose twin stages or single stage extruder according to the cleanliness of your material condition and capacity requirements.


* This plastic pelletizing line can be displayed "L" or "U" shape according to clients' workshop size .


* We also provide plastic crushing washing recycling line to get clean dry flakes or film from dirty waste material.


* We can also customize the pelletizing line according to client's material and product requirement.

* Working Flow (Strand-Cooling Cutting Pelletizing Line)



* Features
1. Automatically working, conveying material, plasticizing, extruding, cooling, drying, cutting, collecting.
2. High efficiency, safety control, capacity from 150-1000 kg/h.



* Processing

Worker put film or bag into Agglomerator---------plastic ball---------screw loader feeds plastic into extruder



hopper----------extruder plasticizing process( vent screw )---------Hydraulic network(for impurity sorting)-----



----Mold ( for 3mm diameter pellet ) ---------water bath cooling--------forcecoolingfan ( for cooling and



water blowing )---------pelletizer (could adjust pellet length by adjusting cutting speed )---------Vibrating



Screen ( for sorting good quality and size pellet )



---- Compactor: With multi blades crushing and compulsively compress the film into extruder.

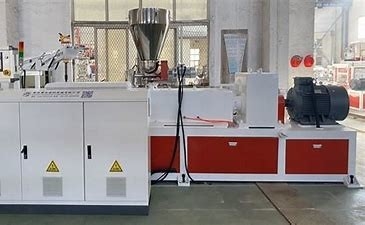

---- Single Screw Extruder : Plasticizing material with high temperature and exhausting hot gas.


---- Hydraulic Screen Exchanger: Filter material impurity to make production more stable.

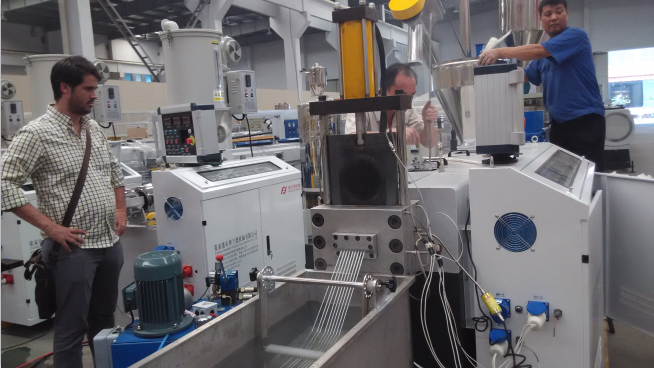

---- Die Mold: Materials come out in long strand.

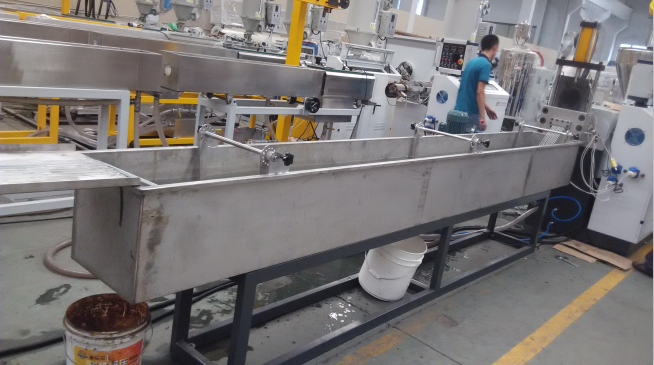

---- Water Cooling Tank: Cooling the strap with cold water.


---- Force Air Drying System: Drying the strand.

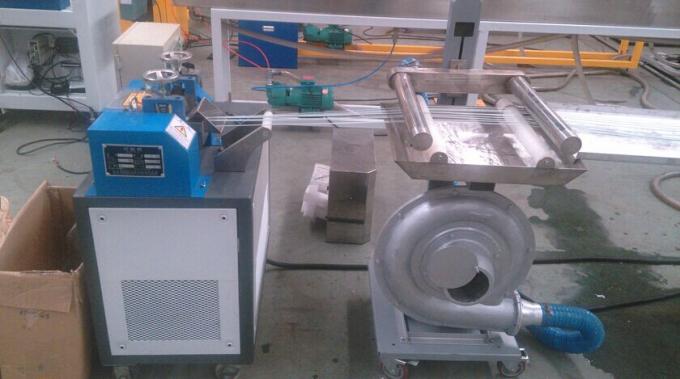

---- Pelletizer Cutter: Cutting the strap into pellets with high speed rotation.


---- Vibration Screen: Pick out bad pellets and keep good pellets.


---- Air Blower: Blower push pellets into the silo.


---- Storage Silo: Collecting pellets, made by high quality stainless steel


---- Control Cabinet: Control the whole line on/off (adopt famous brand such as Schneider, Siemens, etc.)




* Technical Parameter

Model Screw Diameter Screw L/D Main Motor Power Capacity
SJ65 65mm 30:1 37kw 80-100KG/h
SJ85 85mm 30:1 55kw 150-200kg/h
SJ100 100mm 30:1 75kw 200-300 kg/h
SJ130 130mm 30:1 90-110kw 300-400 kg/h
SJ150 150mm 25-35:1 110-132kw 400-500 kg/h.
SJ160 160mm 25-35:1 132-160kw 600-800 kg/h
SJ180 180mm 25-35:1 160-200kw 800-1000 kg/h



1000kg/H PP Film Scrap Hdpe Pelletizing Machine 3mm Diameter 0
1000kg/H PP Film Scrap Hdpe Pelletizing Machine 3mm Diameter 1

1000kg/H PP Film Scrap Hdpe Pelletizing Machine 3mm Diameter 2

Clause & Service:



Installation and Debugging:
Pre-sale: we given client the details technician offer, sign the sales contract etc.
In-sales: we supply the details layout, installation instruction, technician support for the clients.
After sales: we arrange engineer to install the machinery and training the workers for client. We always up date the new technology to every customer.



Delivery and Shipping:

After the contract comes into effect, buyer pay deposit, we will start to produce. When all the machines are completed, buyers come to factory to observe and test machine by themselves, until all the machines are satisfied with the buyers, they can pay for the other balance. Our company arrange to shipping goods to buyer. We provide the goods to be shipped by air or by sea. Pictures of cargo loading will be sent to every client to check and keep recording.



Package:

Packing with film, pallet or wooden case.(according to customers' request).



Guarantee:

We provide one-year warranty guarantee for all the machines. We supply long term spare parts for every customer.



Certificate: CE, ISO9001.2008.
