Conical Twin Screw Hot Cutting PVC Pelletizer Machine Masterbatch

Conical Twin Screw Hot Cutting PVC Pelletizer Machine Masterbatch

Product Details:

Place of Origin: Jiangsu Province, China
Brand Name: Friend
Certification: CE and SGS
Model Number: SJSZ65/132

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD30000-60000$/SET
Packaging Details: standard film package, then in container.
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 SETS per Month
Get Best Price Contact Now

Detail Information

Material: PVC Resin Powder Capacity: 200-600kg/h In Different Range
Power: 22-150kw Cutting Type: HOT-CUT Type
Application: Granules Extruder: Conical Twin Screw Plastic Extruder
PVC Material Model: SG-5 Warranty: 1year
Granules Type: Soft Pvc Granules, And Hard Granules Vibrating Seive: 3 Layres
High Light:

hot cutting PVC Pelletizer Machine

,

masterbatch PVC Pelletizer Machine

,

PVC Resin hot cut pelletizer

Product Description

PVC hot cutting pelletizing for making PVC granules/plastic pelletizer machine



Description

Sjsz conical twin screw plastic extruder, equipped with appropriate molds and auxiliary equipment

It can directly convert thermoplastic special PVC powder into pipes, plates, films and profiles,

It also provides modification and granulation functions.

The extruder is driven by AC motor with propeller without steepness adjustment.

It is equipped with overload protection and shutdown alarm system.

The screw core and the outside of the cylinder are cooled by oil circulation,

It includes vacuum exhaust and forced feeding.



Advantages

The twin-screw extruder adopts PLC control system, with reliable and stable performance.

Equipped with overload protection and shutdown alarm system.

The special screw design makes the material plasticization and mixing effect better. The bimetallic screw and cylinder can ensure a perfect solution.

The extruder is equipped with AC motor, automatic temperature controller, vacuum exhaust device, etc.

This production line is applicable to the production of plastic pipes, plates, profiles, etc.

The extruder head is equipped with a central chip (internal chrome plating), and the pressure sensor device is also equipped with.



Application

PVC hot mold granulation line is mainly used for granulation of PVC powder. It is a necessary equipment for the production of PVC injection molding machine and some special PVC products.

PVC hot die granulation production line has the characteristics of low power consumption, good granulation effect and high output. PVC hot die granulation production line mainly includes the following parts: conical twin-screw extruder, extrusion die, die cutting machine, air supply cooling system and storage hopper.

The PVC powder granulator series includes the following machines:

Loader high speed mixer (optional) -- twin screw extruder -- die -- cutter -- air cooling system silo

The production capacity can reach 100-1000kg / h. The raw PVC powder is mixed with other chemical raw materials, such as CaCO3, ect, etc. the final PVC particles can be used to manufacture soft PVC garden watering hoses, electric pipes, etc.



Main Technical Parameters

Model SJSZ45 SJSZ51 SJSZ55 SJSZ65 SJSZ80 SJSZ92
Screw diameter(mm) 45/90 51/105 55/113 65/132 80/156 92/188
Screw ratation speed(rpm) 1-45 1-45 1-40 1-35 1-37 1-33
Length of screw(mm) 980 1070 1200 1440 1800 2500
Main motor power(kw) 15 18.5 22 37 55 90
Barrel heating power(kw) 12 18 18 24 36 86.5
Capacity(kg/h) 30-120 80-150 150-180 250-300 320-400 600-800



More Product Pictures

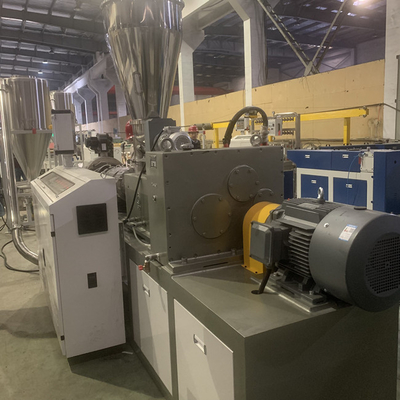

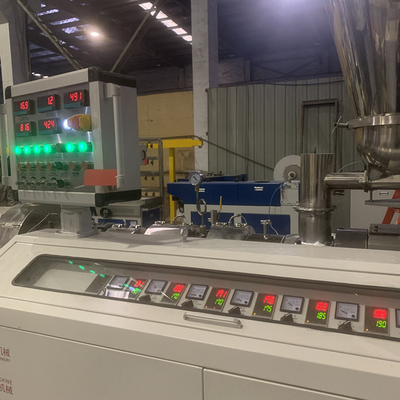

Conical Twin Screw Hot Cutting PVC Pelletizer Machine Masterbatch 0Conical Twin Screw Hot Cutting PVC Pelletizer Machine Masterbatch 1

Conical Twin Screw Hot Cutting PVC Pelletizer Machine Masterbatch 2
