500kg Soft PVC Recycling Granulating Hot Cutting Pelletizer Machine

500kg Soft PVC Recycling Granulating Hot Cutting Pelletizer Machine

Product Details:

Place of Origin: Jiangsu Province, China
Brand Name: Friend
Certification: CE and SGS
Model Number: SJSZ65/132

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD30000-60000$/SET
Packaging Details: standard film package, then in container.
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 SETS per Month
Get Best Price Contact Now

Detail Information

Material: PVC Resin Powder PVC Material Model: SG-5
Capacity: 200-600kg/h In Different Range Condition: New
Cutting Type: HOT-CUT Type Extruder: Conical Twin Screw Plastic Extruder
Video Outgoing Inspection: Provided Granules Type: Soft Pvc Granules, And Hard Granules
Vibrating Seive: 3 Layres Warranty: 1year
High Light:

500kg granulating pvc pelletizing line

,

Conical granulating pvc pelletizing line

,

hot cut plastic recycling pelletizer

Product Description

Soft PVC Recycling Hot Cutting Plastic Pelletizer Machine 500kg PVC Granulating



Details

1. Equipment name: PVC plastic granulator.

2. Production capacity: 150kg / H ~ 1000kg / h.

3. Processing materials: PVC powder to PVC particles.

4. You can choose different equipment according to your materials. You can also purchase separate equipment according to your own situation.

5. We provide you with turnkey projects. Design product installation test.

6. Advantages: convenient operation, large capacity, low energy consumption, safety and reliability, etc.



Application

PVC plastic granulation recycling machine is suitable for waste materials with high processing performance requirements such as melting, volatilization and filtration., Mainly engaged in PVC waste recycling and re granulation. PVC plastic granulator adopts international advanced recycling technology and combined with practical application. The PVC plastic granulator is specially designed to recycle cleaned PVC plastic sheets / wastes, such as PVC segments / wastes, PVC sheets / wastes, etc.

After feeding, heating, melting, cutting, cooling and other processing technologies, the final product is PVC plastic particles / particles, which can be used to produce new PVC plastic products.



Feature

1. High precision. High thermal cutting efficiency. Easy to install and move.

2. The PVC granulator is composed of conical twin-screw extruder and corresponding granulation downstream equipment. It is suitable for granulating PVC raw materials or adding additives such as wood powder.

3. The pellets produced by this machine are uniform, solid and easy to break.

4. The downstream equipment of granulation is die cutting machine, air conveying device, vibrating screen and fan conveying system. The granulation auxiliary equipment has high automation and high production efficiency.

5. The screw and cylinder are made of 38CrMoAlA material through forging, tempering and nitriding treatment, which is different from others: the screw edge is tempered after rough machining, with good hardness and double aging to effectively reduce stress. At the same time, after precision machining, the phase error of screw edge is small, the cylinder and screw have high universality, and the structure of screw varies with different materials.



Main Technical Parameters

Model SJSZ51/105 SJSZ55/110 SJSZ65/132 SJSZ80/156
Main extruder power(kw) 18.5 22 37 55
Max capacity(kg/h) 100 150 250 400
Pellets diameter(mm) 3-5 3-5 3-5 3-5
Total length(m) 8 12 15 15

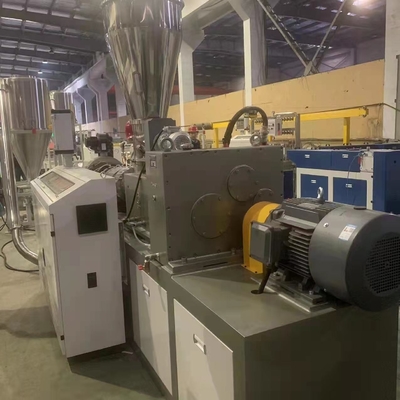

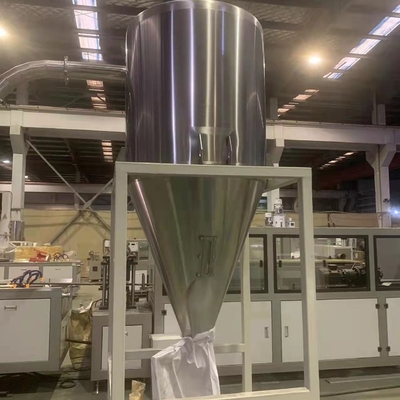

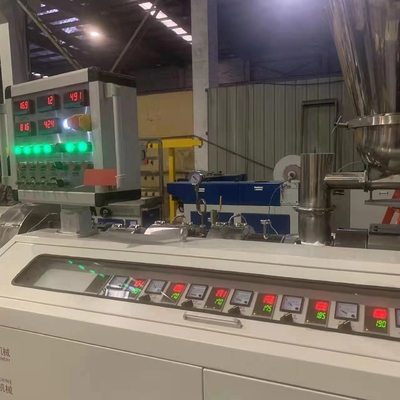

Product Pictures

500kg Soft PVC Recycling Granulating Hot Cutting Pelletizer Machine 0500kg Soft PVC Recycling Granulating Hot Cutting Pelletizer Machine 1500kg Soft PVC Recycling Granulating Hot Cutting Pelletizer Machine 2500kg Soft PVC Recycling Granulating Hot Cutting Pelletizer Machine 3500kg Soft PVC Recycling Granulating Hot Cutting Pelletizer Machine 4
