Product Details:

Place of Origin: Jiangsu Province, China
Brand Name: Friend
Certification: CE and SGS
Model Number: SJSZ65/132

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD30000-60000$/SET
Packaging Details: standard film package, then in container.
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 SETS per Month
Get Best Price Contact Now

Detail Information

Material: PVC Resin Powder Color: Black Or White Granules
Capacity: 200-600kg/h In Different Range Cutting Type: HOT-CUT Type
Extruder: Conical Twin Screw Plastic Extruder PVC Material Model: SG-5
Granules Type: Soft Pvc Granules, And Hard Granules Vibrating Seive: 3 Layres
High Light:

Plastic Recycling granulator pelletizer

,

600kg/h granulator pelletizer

,

600kg/h pellet extruder machine

Product Description

Machinery Plastic Recycling Granulator Price Pelletizer For Recycle Plastic



PP PE granulating line could be single-stage strand pelletizing, single-stage water-ring pelletizing, double- stage strand pelletizing, double-stage water-ring pelletizing. It can be applied to PP PE film, PP PE lumps with different purity. The screw of the extruder has exhaust system, venting the moisture; The die head is equipped hydraulic screen exchanger to filter the impurity easily.This kind of pelletizing line is especially suitable for recycling dirty waste and production of repelletizing.



Advantages:

1. Increasing the operation variables and realizing the process because of two-stage machine.

2. High effective and production capacity.

3. Good at process heat-sensitive material and devolatilization operation, Such as PVC, XLPE.





Twin Screw control all technical procedures from R&D, design, manufacturing, finishing, to service. These fine products come from our home-made core unit and all the sophisticated equipment. We help our customers solving their essential problems by providing professional and flexible total solution more than just a twin-screw extruder.

Description:


TWIN SCREW EXTRUDER for PVC Pelletizing Extruders and PVC Pelletizing Machine for PVC Granules Making:



With two parallel counter-rotating screws for the palletizing.
Reduction and torque-distribution unit with hardened, ground shafts and gear.
Long service life for the processing units due to lower specific drive energy.
Increased process reliability due to modern control technology.
Easy maintenance and service.





DIE FACE CUTTING:



Hinge flange type.
High speed rotation of the knives.
Continuous production of granulate.

VIBRATION COOLER

Up & Down two vibrating bed.

SILO TANK

Stainless steel.

For more technical information please download the catalogs or you can always contact us.





With different designs of screw, this machine can be applied to granulate the recycled material of rigid PVC, soft PVC and waste PVC.

It can be stopless in the course of production. It uses pneumatic conversion and strong-wind blowing.

At the same time can adjust stainless steel storage container and can run at high speed for a long time while extrude stably.





Technical parameters of PVC hot cutting pelletizing machine line :



Model SJSZ-45 SJSZ-50 SJSZ-55 SJSZ-65 SJSZ-80 SJSZ-92
Screw dia(mm) 45/90 50/105 55/110 65/132 80/156 92/188
Screw speed(r/min) 3-34 3-37 3-37 3.9-39 3.9-39 4-40
Main motor(kw) 18.5 22 27 37 55 100
Barrel heating power(KW) 15 10 18 28 38 70
Capacity(kg/h) 100 120 150 260 400 800
Centre height of machine(mm) 1000 1000 1000 1000 1000 1100
Net weight(kg) 3000 3200 3500 4000 5000 7000

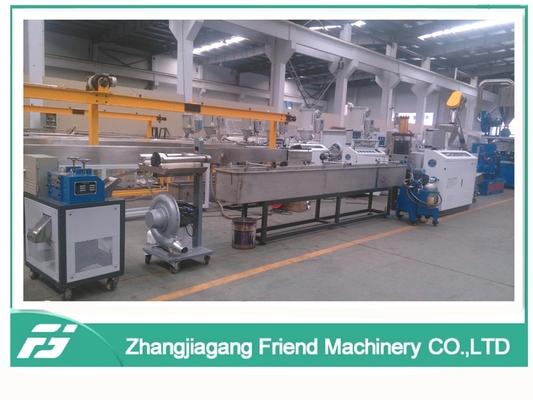

Detailed pictures as folllows :



600kg/H Plastic Recycling Granulator Pelletizer For Recycle Plastic 0600kg/H Plastic Recycling Granulator Pelletizer For Recycle Plastic 1
