Double Screw Plastic Tube Making Machine Pvc Pipe Maker For Water Supply / Drain Pipe

Double Screw Plastic Tube Making Machine Pvc Pipe Maker For Water Supply / Drain Pipe

Product Details:

Place of Origin: China
Brand Name: Friend
Certification: CE,SGS,TUV
Model Number: SJSZ

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: negotiation
Packaging Details: Film package,also can be wooden package if needed
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information

Material: PVC Powder Pipe Diameter: 13-63mm
Application: Electric Cable Pipe Screw Design: Double Screw Extruder
Warranty: One Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

pvc hose making machine

,

plastic tube making machine

Product Description

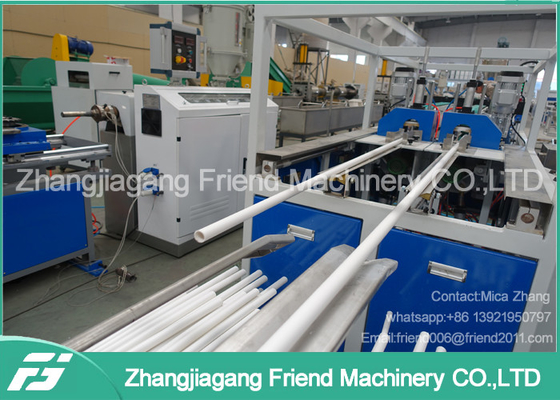

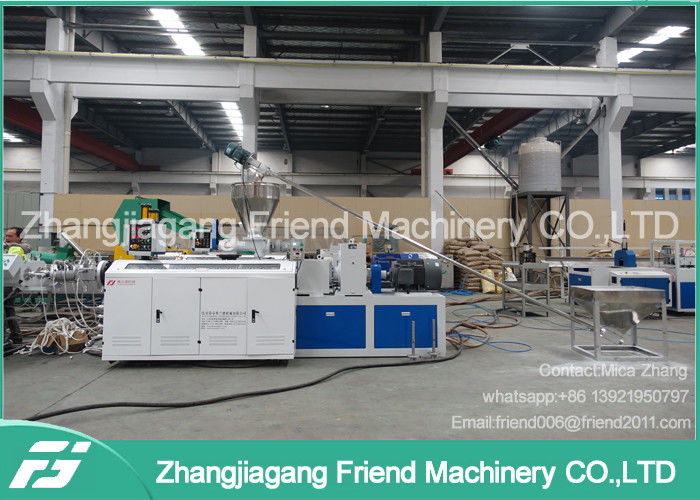

Double screw plastic cpvc pipe / tube extrusion machine production line



1. cpvc pipe extrusion machinery process flow

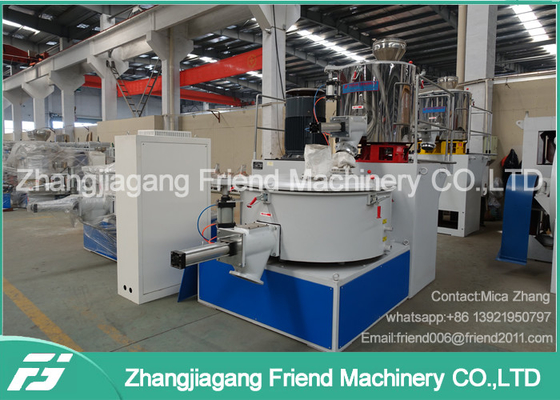

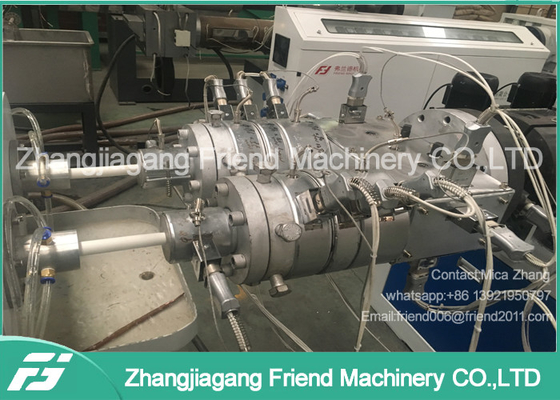

PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → discharging rack



2. cpvc pipe extrusion machinery applications

1. Water supply and drainage pipe in building;

2. Rainwater drainage pipe in building;

3. Electrical wiring pipe in building;

4. Air conditioning condensate water systems.



Technical parameter

Model number PVC-16/63 PVC-20/110 PVC-50/160 PVC-75/250 PVC-110/315 PVC-200/450 PVC-315/630
Pipe diameter 16-63mm 20-110mm 50-160mm 75-250mm 110-315mm 200-450mm 315-630mm
Max output 120kg/h 120kg/h 180kg/h 300kg/h 450kg/h 650kg/h 800kg/h
Production rate 1.5-15m/min 0.8-8m/min 0.5-5m/min 0.4-4m/min 0.3-2m/min 0.1-1m/min 0.07-0.7m/min
Extruder model SJZ-50/105 SJZ-50/105 SJZ-55/110 SJZ-65/132 SJZ-80/156 SJZ-92/188 SJZ-92/188
Installed power 45kw 45kw 55kw 75kw 105kw 160kw 205kw
Center height 1000mm 1000mm 1000mm 1000mm 1100mm 1100mm 1200mm
Installation area 22*2.5*2.0m 24*2.8*2.0m 24*2.8*2.0m 30*2.8*2.2m 35*3.0*2.4 m 36*3.0*2.4 m

38*3.2*2.8 m





Best Services

1. Our company will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.

2. After signing contract, company designs groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers’ requirements and provides detail order list and matching manufacturer for reference for customer.

3. After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer’s locale in time when we provide service for client again.



Why Choose Us

1. We are China Leading Plastic Machine Manufacturer.

2. Inspected by the Inspection Institution of SGS Certification.

3. 100% QC inspection Before Shipmeng.

4. Best Quality & Best Service with Competitive price.
