PVC PP PE Single Wall Corrugated Pipe Machine / Single Wall Corrugated Pipe Extrusion Line

China PVC PP PE Single Wall Corrugated Pipe Machine / Single Wall Corrugated Pipe Extrusion Line supplier
PVC PP PE Single Wall Corrugated Pipe Machine / Single Wall Corrugated Pipe Extrusion Line supplier PVC PP PE Single Wall Corrugated Pipe Machine / Single Wall Corrugated Pipe Extrusion Line supplier PVC PP PE Single Wall Corrugated Pipe Machine / Single Wall Corrugated Pipe Extrusion Line supplier PVC PP PE Single Wall Corrugated Pipe Machine / Single Wall Corrugated Pipe Extrusion Line supplier

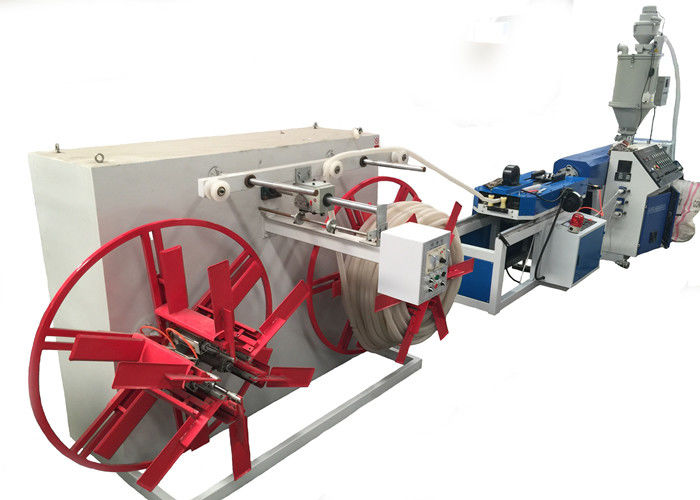

Large Image :  PVC PP PE Single Wall Corrugated Pipe Machine / Single Wall Corrugated Pipe Extrusion Line

Product Details:

Place of Origin: China
Brand Name: Friend
Certification: CE,SGS,TUV
Model Number: SJ single screw extruder

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: negotiation
Packaging Details: Film package,also can be wooden case if needed
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Material: PVC,PP,PE Application: Pipe
Motor Power: 15-55kw Motor Brand: Simens
Warranty: One Year After-sales Service Provided: Engineers Available To Service Machinery Overseas

Plastic PVC PE PP Single Wall Corrugated Pipe Extrusion Machine / Extrusion Line

Product Application

Single wall corrugated pipe machine development by our company adopts gears to run modules and templates so as to realize water circulating cooling and air cooling of the products,which ensures high speed molding,even corrugation,smooth inner and outer pipe wall.These corrugated pipes are especially used in wires conduit pipe.It is mainly for the production of raw materials to PVC,PP,PE small diameter single wall corrugated pipe.Die by the corresponding forming a homogeneous single wall corrugated bellows products.Threading pipe for wire and cable,washing machine drains,vacuum cleaners, ventilation pipe, prestressed concrete special tubes.





Technical Parameter

Pipe diameter 4-12mm 10-32mm 10-32mm 25-65mm 50-110mm
Extruder SJ-30/28 SJ-45/30 SJ-50/30 SJ-65/30 SJ-90/30
Capacity 8-15kg/h 40kg/h 50kg/h 120kg/h 250kg/h
Speed of production line 1-12m/min 1-10m/min 10-20m/min 1-8m/min 1-5m/min
Quantity of mould block 38 pairs 38 pairs 80 pairs 38 pairs



50 pairs






Advantages



1. Different extruder size according to different size of hose.

2. Motor from famous brand.

3. Frequency convertor ABB brand.

4. High precision processing for each parts, never roughly manufacturing.





Process Flow



PP/PE/PVC/PA/PB/EVA material→Automatic loader →Single screw extruder→Head die and mould →Mould blocks→Forming machine→Winder



Our Service



1. we will provide all the machines for the complete production according to customer's requirements.
2. we will provide complete service for factory layout and other information to help customer to build the factory.
3. we can also provide the raw material to the customer if you need.
4. we provide a full range of technical documents,including the structure,electrical diagram,operating instructions,etc.
5. When after the expiry of the warranty, we still provide extensive and favorable technical support and spare parts.
6. We will provide good service for machine installation and training, until the customers can run the machines and make stably production.
