Simple Operation Plastic Extruder Machine Conical Twin Screw Extruder

Simple Operation Plastic Extruder Machine Conical Twin Screw Extruder

Product Details:

Place of Origin: JIANGSU
Brand Name: FRIEND
Certification: CE
Model Number: SJSZ-65/132

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Standard wooden package
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information

Motor Brand: Siemens Beide Motor Power: 37 Kw
Inverter: ABB Capacity: 250 Kg/h
High Light:

plastic extrusion equipment

,

twin screw extruder machine

Product Description

SJSZ-65/132 conical twin screw extruder plastic extruder machine 250kg/h PVC extruder



Application

Dounle screw extruder is drived by D.C motor with a thruster to steepless regulate. It is also equiped with the over-load protection and stoppage alarming system , The screws core and the outside of barrel is cooled by circulation of oil , It includes vacuum venting and forced feeding .

1. PVC polyvinyl chloride pipe extruder

2. PVC polyvinyl chloride profile extruder

3. PVC polyvinyl chloride board, PVC foam board extruder

4. PVC polyvinyl chloride granulator

5. PVC polyvinyl chloride stick



Machine features



1. The conical twin screws have applied oil cooling system. Barrel is cooled by special wind cooling system.

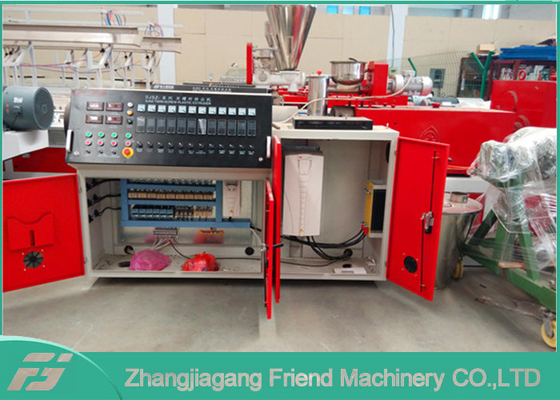

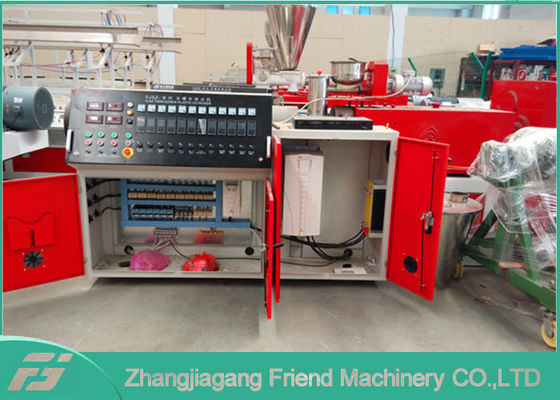

2.The conical twin screw extruder system has applied electric control cabinet. According to customers’ requirements, most reasonable structure of conical twin screw can be made so as to achieve best plasticity performance and material quality.

3. The conical twin screw is made by high precision special digital screw miller; extruding property can be highly harmonized. It has firstly introduced advanced technique of producing screw with variable pitch and depth, so that the material can be more softly sheared and cut.

4. The distribution box is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged. It can bear larger extruding pressure.

5 .The electrical system has mainly applied imported parts, it has multiple alarm system, and there are few problems which can be easily eliminated. The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, and temperature control tolerance can be ± 1degree



Reason for chosing our machine
1. We are a real facytory, customer can get full technical supply and warranty
2. We are told supplier of alibaba. Com for many years, our brand is guaranteed
3. Our factory sell the machine directly, so the price is relatively cheap
4. We can offer special train to make the operation much easier.
5. We have been in this area for many years, we have a lot of experience.



Technical parameters



Model SJSZ45 SJSZ51 SJSZ55 SJSZ65 SJSZ80 SJSZ92
Scrw diameter (mm) 45/100 51/105 55/120 65/132 80/156 92/188
Screw quantity 2
Screw rotate direction Turning outwards with different direction
Screw rotation speed (r/min) 1-38 1-38 1-38 1-36 1-35 1-34
Effective length of the screw stem (mm) 1000 1050 1150 1430 1800 2520
Main motor power (kw) 15 15 22 37 55 90
Barrel heating power (kw) 12 12 18 24 36 48
Production capacity (kg/h) 95 110 150 250 380 520
Central height (mm) 1000

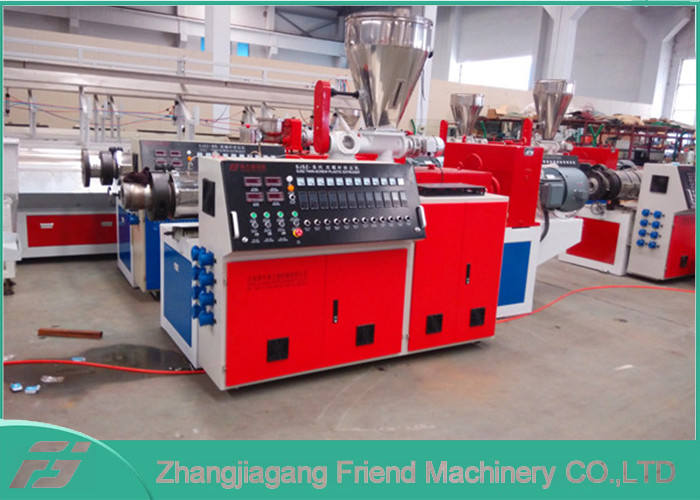

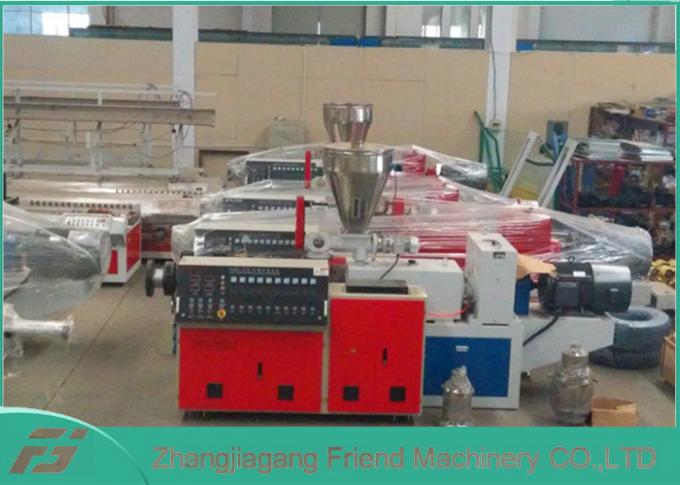

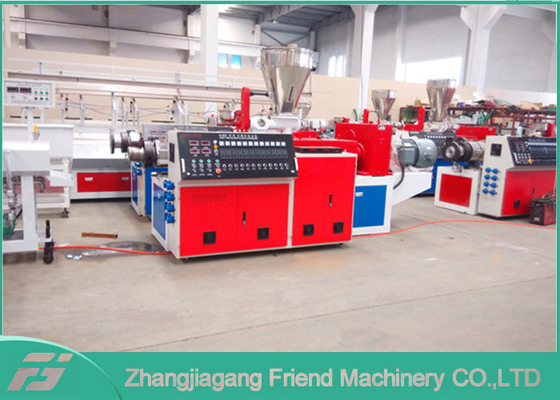

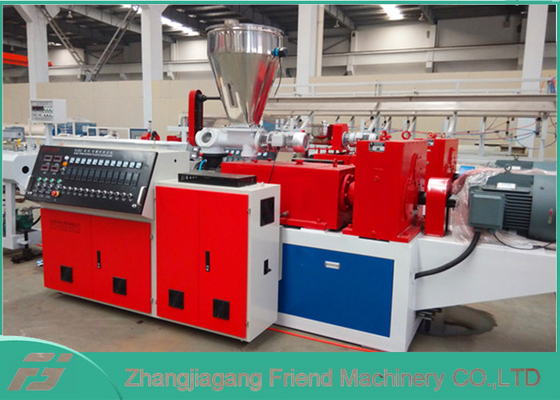

Machine piactures

Simple Operation Plastic Extruder Machine Conical Twin Screw Extruder 0



Simple Operation Plastic Extruder Machine Conical Twin Screw Extruder 1
