High Capacity Plastic Extruder Machine For PEEK Bar / Stick / Rod Products

High Capacity Plastic Extruder Machine For PEEK Bar / Stick / Rod Products

Product Details:

Place of Origin: China
Brand Name: friend
Certification: CE
Model Number: SJ45 single screw extruder

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: negotiation
Packaging Details: Film package,wooden package needs extra charge
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information

Material: PEEK,PI Material Motor Power: 15kw
Motor Brand: Simens Bar Diameter: 50mm
Screw Design: Single Screw Extruder After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

twin screw extruder machine

,

single screw extrusion machine

Product Description

Plastic PEEK PI special material bar production line / extruder machine



1. Foreword

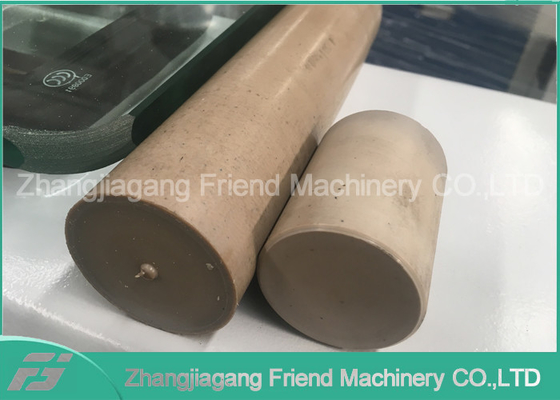

PEEK Bar/Stick/Rod products have been widely used to oil processing field, electronic industry, chemical plant area and food processing machine etc. for it’s good chemical resistance, easy processing and other advantages. And PEEK has a stable position in plastic extrusion industry that other material can not take the place of it. With the rapidly development of world economy, there is a huge demand of PEEK Bar/Stick/Rod , so PEEK products will be very popular.



Songhu Plastic Machinery Corp. is a professional PEEK Bar/Stick/Rod extrusion line manufacturer in China, we have overcame lots of difficult and researched high precision , high output and excellent quality PEEK Bar/Stick/Rod extrusion line, and we are also the first supplier of PEEK Bar/Stick/Rod production line in China.





2. Features of the PEEK Bar/Stick/Rod extrusion line



2.1 In view of the PEEK material in the process of machining can be corrosive, screw took the alloy material. By special screw combination design, to ensure that at low temperature, the material have a goodplasticizing, especially for the larger size of the bar, we can promise the good plasticizing and plasticizing rate.

2.2 High precision mould, use S136 steel. It can ensure a high precision of size of the product, at the same time it has a good corrosion resistance effects.

2.3 Good stability (special haul-off for PEEK bar)
2.4 High capacity, we can promise the most fast production speed based on the quality of out product.




3. The composition of PEEK Bar/Stick/Rod extrusion line

No. Name Quantity Remarks

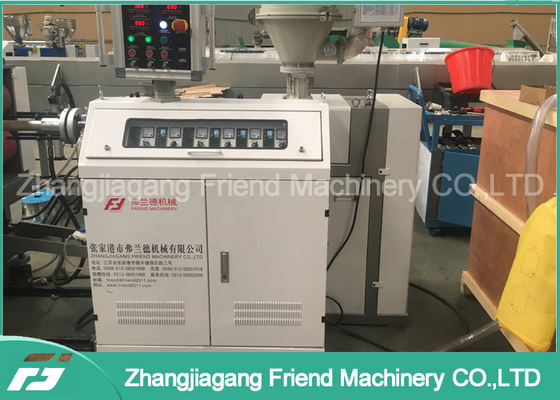

1 SHSJ-45 Extruder 1 SET
2 High precision mould 1 SET Material is S136 and TCU is available
3 Shaping stable 1 SET
4 Cutting machine 1 SET Automatic meter counting and direct packing





4. Technical Data
Model No. SHSJ-45
Processing material PEEK
Power 24 KW
Min-max diameter 20-80mm
Tolerance 0.5-2mm
Length Unlimited
Warranty 12 months
Terms of payment T/T
Delivery time

30 working days

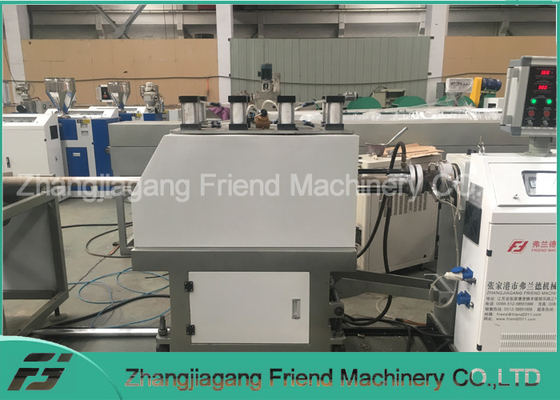

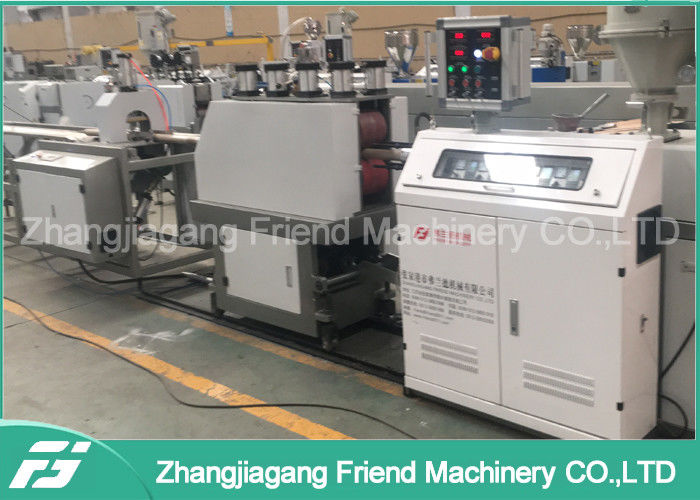

5.PEEK Bar/Stick/Rod production line



High Capacity Plastic Extruder Machine For PEEK Bar / Stick / Rod Products 0
