Customized Colors PET Plastic Recycling Line For Medical Bottle / Syringe

Customized Colors PET Plastic Recycling Line For Medical Bottle / Syringe

Product Details:

Place of Origin: JIANGSU
Brand Name: FRIEDN
Certification: CE
Model Number: FLD

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Standard wooden package
Supply Ability: 1 set per month
Get Best Price Contact Now

Detail Information

Crusher Power: 37 Kw Motor Brand: Siemens Beide
Raw Material: Plastic Bags/film Finial Product: Plastic Granule/flakes
Product Name: Pp Recycling Machine
High Light:

plastic recycling equipment

,

plastic bag recycling machine

Product Description

Medical bottle/syringe recycling line plastic recycling line 200kg/h, 500kg/h, 1000kg/h



Feature

1. Plastic recycling washing machine is applied in PET waste bottle or sheet recycling field.

2. Through crushing, washing and dry process, the waste bottle or sheet will become to be bottle flakes. The flakes are widely used in plastic industry, like sheet, and profile production.

3. The clean flakes can be used to produce the polyester staple fiber, PET strap band, granules, PET transparent film and sheets, etc. The top class flakes can be used to blow bottles again.

4. Recycling machine can be designed on the basis of how dirty the flakes are, and make sure of the quality of the final products are very clean.

5. Recycling machine output we can supply is from 300kg/h to 2000kg/h.

6. We can also produce the plastic pipe extrusion line,plastic profile extrusion line,wood plast composite extruion line,plastic recycling productio line.

Welcome to visit us at any time and please feel free to contact us for more details.



Machine process

Belt conveyer → Rolling separator →Manual pick table → Metal separator → Belt conveyer → Crusher → Label Separator → Hot washer 1 → Friction washing machine → Hot washer 2 → High-speed friction washing machine → Rinsing tank → Spray washing→ Dewatering machine → Blower dryness system → Storage hopper → Finished product packing



Machine description

This equipment is mainly used for cleaning broken plastic bottles, plastic barrels, bottles and other hard plastic, soft material can also be used for cleaning broken dirty, a full set of equipment including: standard machines, feeding machine, washing machine, crushing boiler, cleaning tank, dewatering machine and storage bin. The main production process is: delabelling - Single / multi crushing - high / low - temperature decontamination treatment to rubber processing -- washing machine dewatering / drying - multistage processing processing, storage package processing, complete high degree of automation equipment, low power consumption, high yield.

The unit currently available are: open charter, pre cleaning machine, efficient delabelling separator, the manual sorting belt conveyor, crusher, high temperature glue machine, high-speed friction cleaning machine, drift net separator, dewatering machine, storage bin, hot air drying machine, screw feeder, belt conveyor, color machine, PVC sorting machine is developed in the experiment, our company equipment investment by the majority of customers love.



Technical parameters

NO
ITEM

DESCRIPTION

SELECTIVITY

1

Prewasher

Remove the solid impurity which are water insoluble, such as hand stone, sand, etc. It can also wash bottles' surface.

Optional

2

Bale Breaker

It is used in large capacity recycling line, and bottles are compressed in bale.

Optional

3

Belt Conveyer

Including the metal detector.

Necessary

4

Label Remover

Label removing efficiency more than 98%

Optional

5

Manual Select Plateform

Made according to workers' height, supply a suitable plate for selecting the left lables or some other impurity.

Optional

6

Belt Conveyer

Conveying the bottles into crusher.

Necessary

7

Crusher

With water, the materials of the blade adopt SKD-II or 9CrSi. It has a function of prewashing too.

Necessary

8

Screw Feeder

Conveying the flakes into friction washer.

Optional

9

Friction Washer

Scrubbing material in high-speed with water.

Optional

10

SCrew Floating Washer

Remove few remand paper, sand, label from material based on different density.

Optional

11

Screw Feeder

Conveying the flakes into hot washer.

Necessary

12

Hot Washer

High temperature stirring washing with caustic soda. Water can be heated by steam or electric.

Necessary

13

Screw Feeder

Same as Item 8.

Necessary

14

Friction Washer

Same as Item 9.

Necessary

15

Screw Floating Washer

Same as Item 10.

Necessary

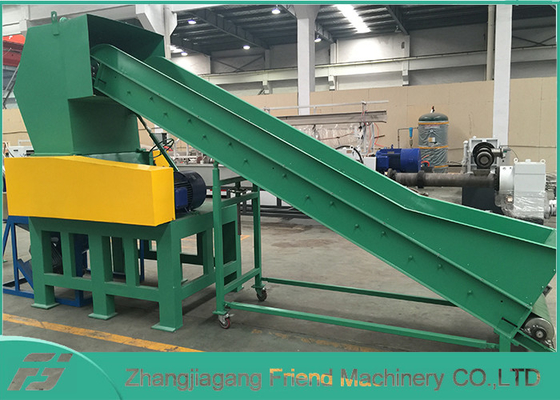

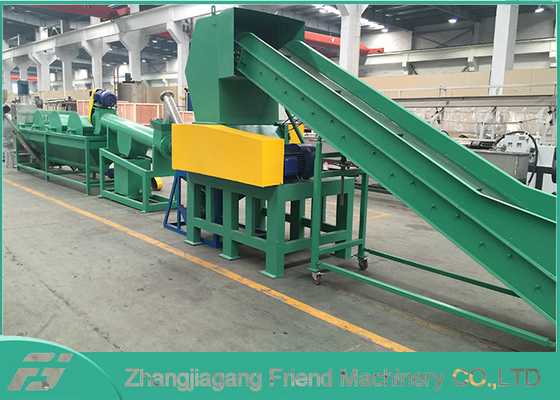

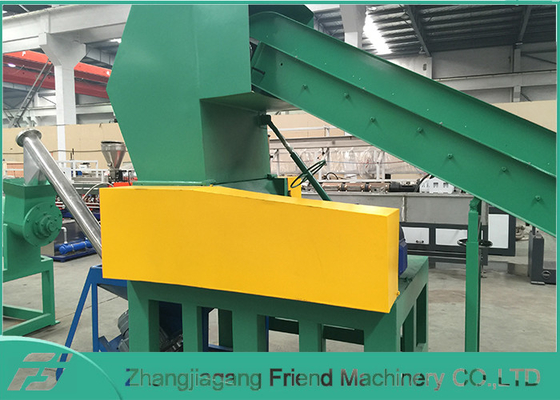

Machine pictures

Customized Colors PET Plastic Recycling Line For Medical Bottle / Syringe 0



Customized Colors PET Plastic Recycling Line For Medical Bottle / Syringe 1
