Professional Pvc Grinder Machine , Plastic Milling Machine 300kg/H Capacity

Minimum Order Quantity : 1 set Price : negotiation
Packaging Details : Standard wooden package Supply Ability : 20 sets per month
Place of Origin: JIANGSU Brand Name: FRIEND
Certification: CE Model Number: SMP-500

Detail Information

Raw Material: PVC Powder Motor Power: 45 Kw
Capacity: 300 Kg/h Product Name: Plastic Milling Machine
High Light:

plastic milling machine


grinding pulverizer machine

Product Description

SMP-500 PVC grinding machine plastic pulverizer machine PE/PP milling machine



  • Full-Auto SMP Series plastic pulveriser is the grinding disk type pulverizer, it has advantages of high output, low energy cost etc. Mainly used in pulverizing PE, PVC, PP, PS, ABS and other materials powder processing.
  • This pulverizer adopt the newly designed grinding disk, it has high output, strong wearing resistance, the life is doubled than the ordinary grinding disk.
  • The pulverizer adopt the professional bearing to realize the high speed and high output.
  • The installation for this pulverizer is convenient, just open the grinding room gate to clean and maintain, the whole pulverizing process is full sealed, no powder leakage during processing.
  • Full auto, full auto material feeding, full auto material output, and full auto material sieving.
  • The pulverizing gap can be adjusted easily, just use feller gauges and adjust the screw installed on the grinding room to realize the accurate adjust.
  • The main grinder adopts the wind and water cooling type.
  • The design of this machine is reasonable, the quite small pulverizing section and the disk is almost flat and erected, the material coming into the grinding room and can be easily pulverized and gone out, this avoid the material stuck and temperature rise, thus make the output of the machine more higher.



  • With water cycle and wind cooling, the machine can be applied into processing heat sensitive material.
  • With the tail-wagging air stream (partly eddy flow) produced by the tail-wagging of the main shaft capstan of the machine, the input tail-wagging materials collide strongly with the board and the cutting blade, and was grinded into powdery (without sieving).
  • Both the board and the cutting blade are made of abrasion-resistant steel, with excellent performance after heat treatment.
  • With severeness of framework, the volume of the machine is quite small. If you open door closure, you can maintain it. It is completely airproof and without any dust leakage.
  • With winding reclaiming equipment, the machine is features by cooling materials evenly, quick cooling and some other characteristics.
  • The new disc design is used, high-yield, strong resistance and the life of this grinding disc is double than the ordinary.
  • The use of newly designed professional bearings, and reach a high rotation rate. At the same time using only one drive motor, to ensure the efficient grinding crash, which greatly saves the time and operation of machinery and control engineering.
  • Installation and maintenance easy, open the door to cover clean-up.
  • Milling process of the whole seal, without dust leakage.
  • Full automatic feeding, the materials and sorting.
  • Grinding gap adjustment is simple, just use the plug-foot bolts and adjustments can be fine-tuning (10-120 mesh).
  • The host used the water and wind double system; Rational design of smaller cross-section of the grinding chamber, grinding is almost flat vertical surface. Material entered the grinding chamber as soon as caught, groud, and then rapidly removed, which eliminates the grinding chamber of the surge in materials, heating materials to avoid decomposition, resulting in improved production.


Technical parameters

NO SMP250 SMP -400 SMP -500 SMP -600 SMP -800
Diameter of disc(mm) 250 350 510 600 800
Main motor power(kw) 15 22-30 37-45 55 75
Cooling method Wind Cooling ,Water Cooling
Fan power (kw) 3 3 4 5.5 7.5
Vibrating sieve ZDS600 ZDS 800 ZDS 800 ZDS 1000 ZDS1200
Sieve 30-40mesh
Capacity(kg/h) 30-50 100-120 150-200 250-300 400

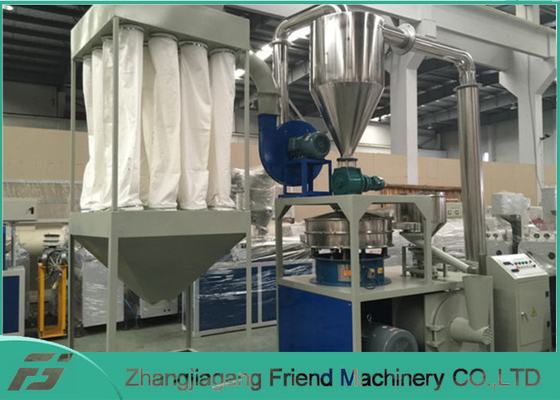

Machine pictures

Professional Pvc Grinder Machine , Plastic Milling Machine 300kg/H Capacity 0
