Disk Type Polyethylene Plastic Grinding Machine For Pulverizing Power

Minimum Order Quantity : 1 set Price : negotiation
Packaging Details : film package Delivery Time : 10-20 working day after deposit receive
Payment Terms : L/C, T/T, Western Union Supply Ability : 25 SETS per month
Place of Origin: Jiangsu Province, China Brand Name: Friend
Certification: CE certificate Model Number: MF500

Detail Information

Type: MF500 Disk Type Polyethylene Plastic Grinding Machine For Pulverizing Power Raw Material: Waste Plastic Scraps
Milling Type: Disk Type Fine Powder: 20-120 Mesh
Capacity: 120-150kg/h Color: Can Be Customized
Collect Dust Device: Have Inverter: ABB Brand
High Light:

plastic milling machine


pvc grinder machine

Product Description

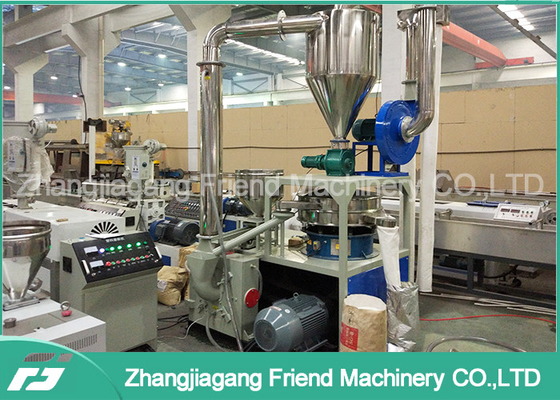

MF500 Disk Type Polyethylene Plastic Grinding Machine for Pulverizing Power


It mainly used in producing plastic powder from plastic granules, scraps.

The whole set of plastic pulverizer include feeding hopper, grinding chamber, vetex hopper, vibrating

sieve, regrinding system, dust-cleaner. The blade for this plastic pulverizer could be rotor type blade

and disk type blade. With cooling system, it can apply to PP, PE, EVA, ABS, PVC materials


Performance characteristics

The automatic plastic powder miller pulverizer machine which has the advantages of high-yield and lower-power .this machine can be used for powder processing of polyethlene (PE),polyvinylchloride (pvc), polypropylene (pp),polystyrene (ps),ABS,nylon and other materials.

the new disc design is used ,high-yield,strong resistance and the life of grinding disc is double the ordinary.
the use of newly designed professional bearings ,and reached a high rotation rate ,at the same time using only one drive motor ,to ensure the efficient grinding crash,which greatly saves the time and operation of machinery and control engineering .
installation and maintenance easy ,open the door to cover clean-up
milling process of the whole seal,without dust leakage
full automated ,automatic feeding ,the materials and sorting
grinding gap adjustment is simple ,just use the plug-foot bolts and adjustments can be fine-tuning
the host used the water and wind double cooling systerm ,rational design of smaller cross-section of the grinding chamber ,grinding is almost flat vertical surface.material entered the grinding chamberas soon as caught,groud,and then rapidly removed,which eliminates the grinding chamber of the surge in materials,heating materials to avoid decomposition,resulting in improved production.


Technical Parameter of MF500 Disk Type Polyethylene Plastic Grinding Machine for Pulverizing Power:

Type SMF-500
Working Method By Grinding Disc
Grinding Disc Design Double Side (we can work by change)
Fixed Disc Double-side, install on disc door
Rotary Disc Double-side, install on main shaft room
Capacity 200-350KG/H for PVC;100-200KG/H for PP/PE
Powder mesh 10-80mesh
Mesh Choose: 10mesh, 20mesh, 40mesh, 60mesh, 80mesh.... We can choose one of them according to our customers. (More mesh, Lower Capacity)
Grinding room German Design and Brand, double grinding disc.
Grinding room blade material Special steel and 38CrMoAIA
Vibrating sieve motor 1.5kw
Vibrating sieve diameter 10-80meshs, which can be adjustable
Drive motor 37kw
Motor manufacturer WN brand
Blower motor 7.5kw
Blower application Drying powder
Pipe material All stainless steel
Cooling method Water cooling, one is enter, another is out
Air lock motor 0.75kw
Air lock motor power Feeding powder into vibrating sieve
Outer size 2200*1900*4200mm (L * W *H)
Weight 1500kg


Disk Type Polyethylene Plastic Grinding Machine For Pulverizing Power 0Disk Type Polyethylene Plastic Grinding Machine For Pulverizing Power 1
