0.5-2 Inch PVC Conduit Pipe Making Machine / Plastic Pipe Production Line

Minimum Order Quantity : 1 SET Price : negotiation
Packaging Details : Standard film package then in 40HQ Delivery Time : 20-30 working days after deposit receive
Payment Terms : L/C, T/T, Western Union Supply Ability : 20 sets/month
Place of Origin: CHINA Brand Name: Friend
Certification: CE, SGS Model Number: SJSZ65/132

Detail Information

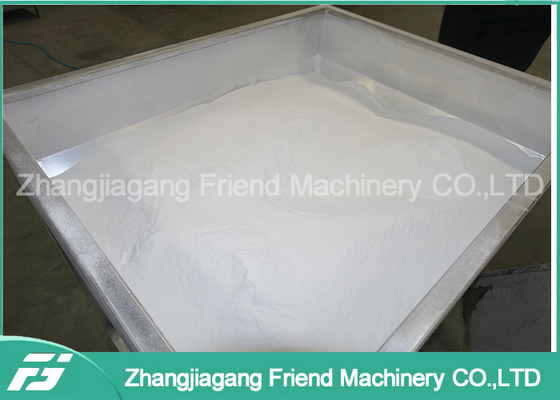

Machine Type: 0.5-2inch PVC Conduit Pipe Making Machine / Plastic Pipe Machine Raw Material: Pvc Powder Resin
Raw Material Model: SG-5 Motor Brand: Siemens Brand
Pipe Diameter Usage: Electrical Protect In Home Use Construction Production Capacity: 150-250kg/h
Packing Method: Standard Film Dimension: Shipping By A 40HQ
High Light:

pvc hose making machine


tube extruder machine

Product Description

0.5-2inch PVC Conduit Pipe Making Machine / Plastic Pipe Machine


Description of the PVC double pipe making machine:


1. 0.5-2inch PVC Conduit Pipe Making Machine is mainly used in the manufacture of the UPVC and PVC pipes with various pipe diameters and wall thickness such as the agricultural and constructional plumbing, water supply and drain etc.
2. This plastic pipe machine is composed of conical twin-screw extrude, vacuum calibration tank, haul-off machine, cutter,stacker etc.
3.The screw extruder and traction machine adopt imported AC frequency control device.

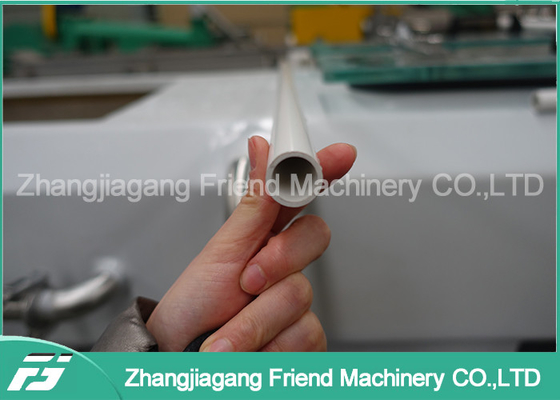

4. The pipe diameter range :16-63mm or customers' request.

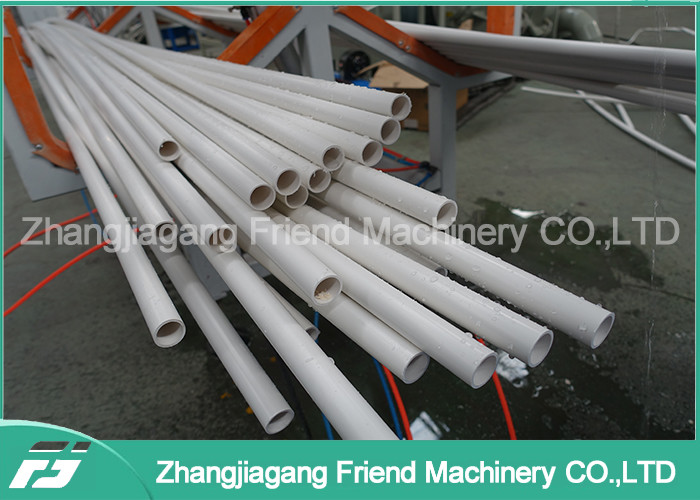

5. The pvc pipe is mostly used in construction industry water supply, drain, electrical cable coating and underground sweage treatment and so on.

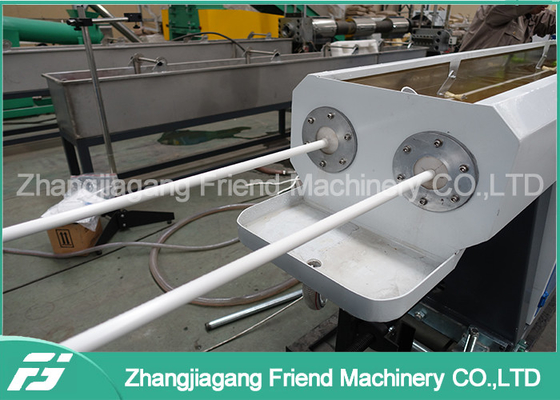

6. 0.5-2inch PVC Conduit Pipe Making Machine can produce two pipes at one time to achieve high production efficiency.


1. Two pipes extruded simultaneously and controlled respectively. One ceases and another goes on.
2. A combination of drawing and cutting machine with fine appearance and accurate synchronization.
3. Applicable pipe diameter ranges from 16-63mm.
4. PLC system and user-friendly human-machine interface can be designed to meet customer requirements

It's a collection of reasonable layout, stable performance, synchronization, practicability, especially high capacity, warmly welcomed by customers.


Main technical parameters:


Pipe Diameter Scope (mm) 16-50mm 16-63mm
Conical Extruder Model SJSZ51/105 SJSZ65/132
Extruder Power (KW) 18.5kw 37kw
Max. Capacity (KG) 135 250
Max.Production Speed (m/min) 2x10m/min 2x12m/min



Main Parts Details:


1) Extruder screw and barrel from Zhoushan,with vacuum degassing system, can get rid of the waste gas from the raw material which can ensure good quality of final granules.
2) Gearbox: From Jiangyin gearbox company,very famous brand in China,with nice outline, stable running, low noise and long service time.
3) Heating system: adopting cast aluminum heaters with stainless steel plate covers, wind fan cooling system, ensuring good features of cooling and heating, precision temperature controlling.
4) Driving system: adopting Siemens motor, using ABB inverter which provide stable torque output and
various speed.

5) Vacuum calibrating and cooling case: the case body is made by #304 stainless steel, good strength and performance,long life time.
6) Traction machines:Rubber block traction belt,traction speed is adjustable by ABB frequency inverter.
7) Cutting machine: saw blade cutting,low noise,quick cutting performance,with dust collection device.


Our Company Services of this 0.5-2inch PVC Conduit Pipe Making Machine:

1. Our factory provide machine testing when customer come to our factory to see this machine.

2. We provide detail machine technical specification, electric diagram, installation book, operating manual, drawings.

3. We can provide engineers to customer's factory to help installation and training workers if customer required.

4. Spare parts is available when u need.within warranty,we will provide without any charge.Over warranty,we can provide spare parts just with factory cost.We will take response and provide technical support and repair of the whole machine lifetime.

0.5-2 Inch PVC Conduit Pipe Making Machine / Plastic Pipe Production Line 00.5-2 Inch PVC Conduit Pipe Making Machine / Plastic Pipe Production Line 1
