PLC Control Electric Pvc Pipe Making Machine , Pipe Extrusion Equipment

PLC Control Electric Pvc Pipe Making Machine , Pipe Extrusion Equipment

Product Details:

Place of Origin: CHINA
Brand Name: Friend
Certification: CE, SGS
Model Number: SJSZ51/105

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: Standard film package then in 40HQ
Delivery Time: 20-30 working days after deposit receive
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 sets/month
Get Best Price Contact Now

Detail Information

Machine Type: PVC Double Pipe Extruder For Plastic Pipe Machine Raw Material: Pvc Powder
Raw Material Model: SG-5 Or Other Model Customer Require Temperature Controller: Omron BRAND
Pipe Diameter Usage: Electrical Protect In Home Use Construction Production Capacity: 150KG/H Maximum
Packing Method: Standard Film Package With Anti-rust Oil Painted Dimension: Shipping By A 40HQ
High Light:

tube extruder machine

,

plastic tube making machine

Product Description

Electrical Protect PVC Double Pipe Extruder for Plastic Pipe Machine



Description of the PVC double pipe making machine:



1) The Double Pipe Production Line can produce two pipes at one time
2) The Electrical Protect PVC Double Pipe Extruder for Plastic Pipe Machineis SJSZ51/105 conical twin-screw extruder.

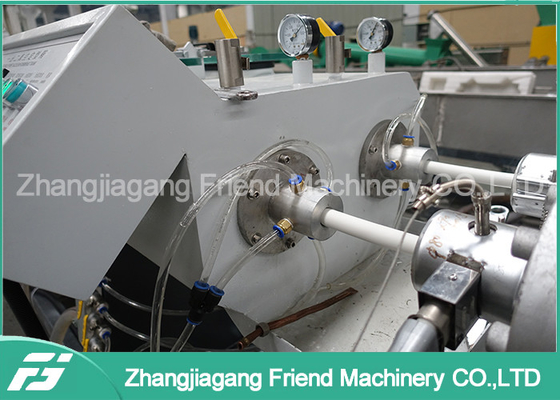

3) It is equipped with double tube single-control stainless steel spray cooling tank. It avoids a waste condition when one tube is adjusted and the other one is affected.

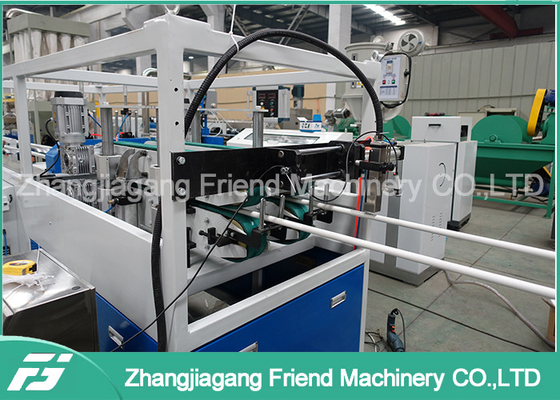

4) The auto single-control double haul-off and cutter are combined with the front shaping technology to make operation more flexible.

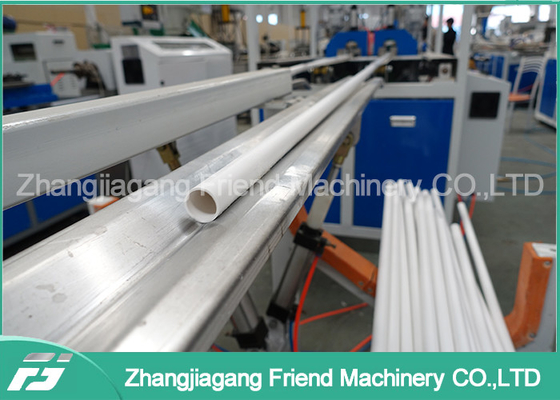

5) The common diameter of the extruded pipe is from φ 20mm-φ 40mm. It can make full use of the extruding capacity of the extruder.



ADVANTAGES OF THIS LINE:

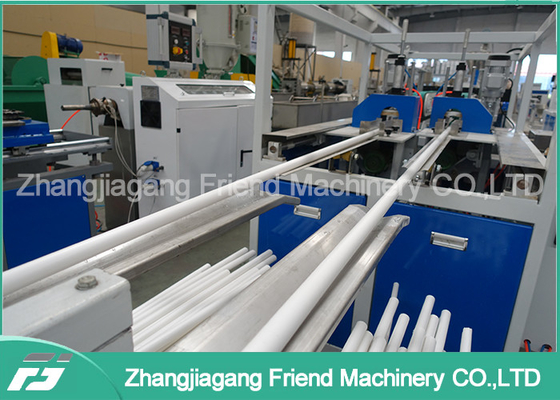

1. Two pipes extruded simultaneously and controlled respectively. One ceases and another goes on.
2. A combination of drawing and cutting machine with fine appearance and accurate synchronization.
3. Applicable pipe diameter ranges from 16-63mm.
4. PLC system and user-friendly human-machine interface can be designed to meet customer requirements

It's a collection of reasonable layout, stable performance, synchronization, practicability, especially high capacity, warmly welcomed by customers.



Technical Parameters:



Model number PVC-16/63 PVC-20/110 PVC-50/160 PVC-75/250 PVC-110/315
Pipe diameter 16-63mm 20-110mm 50-160mm 75-250mm 110-315mm
Max output 120kg/h 120kg/h 180kg/h 300kg/h 450kg/h
Production rate 1.5-15m/min 0.8-8m/min 0.5-5m/min 0.4-4m/min 0.3-2m/min
Extruder model SJZ-51/105 SJZ-51/105 SJZ-55/110 SJZ-65/132 SJZ-80/156
Installed power 45kw 45kw 55kw 75kw 105kw
Center height 1000mm 1000mm 1000mm 1000mm 1100mm
Installation area 22*2.5*2.0m 24*2.8*2.0m 24*2.8*2.0m 30*2.8*2.2m 35*3.0*2.4 m



Main Parts Details:

1. The host is a SJSZ51/105or SJSZ65/132 conical twin-screw extruder with a double pipe but single control stainless steel spraying forming machine which can assist avoiding a series of troubles caused by adjustment of any one tube.

2. This automatic singlecontrol double hauling machine and cutting machine are fully integrated with the doublesizing techniques, which make the operation more flexible and bring more benefits of this single-control, double-pipe technique to you

3. Radius of these double-pipe extruder ranges betweenφ16-φ50, so even for a small-radius pipe production, it can also achieve a high output.

4. Line speed: use SJSZ51/105 extruder 2-12m/min

use SJSZ65/132 extruder 2-16m/mins



Our Company Services of this 0.5-2inch PVC Conduit Pipe Making Machine:

1. Our factory provide machine testing when customer come to our factory to see this machine.

2. We provide detail machine technical specification, electric diagram, installation book, operating manual, drawings.

3. We can provide engineers to customer's factory to help installation and training workers if customer required.

4. Spare parts is available when u need.within warranty,we will provide without any charge.Over warranty,we can provide spare parts just with factory cost.We will take response and provide technical support and repair of the whole machine lifetime.



Frequently Asked Question of PVC pipe making machine



1. What's warranty we assure? --1 year .
2. How to solve the technical problems? --We have one professional technicians team who can solve problems .
3. Delivery time? --In 30 days after payment
4. How to ship the machines? --We order ship by customer’s requirement.

5, Is there any spare parts of machine? --Yes, we will send it togehter with machine;
