PVC Window And Door Profile Making Machine / Plastic Extruding Machine
Contact Person : Coco
Phone Number : +8618013292369
WhatsApp : +8618013292369
| Minimum Order Quantity : | 1 set | Price : | negotiation |
|---|---|---|---|
| Packaging Details : | film packing and wooden case | Delivery Time : | 30 making days |
| Supply Ability : | 20 sets per year |
| Place of Origin: | Jiangsu,China | Brand Name: | Friend |
|---|---|---|---|
| Certification: | CE,SGS,UV | Model Number: | SJSZ51/105 |
|
Detail Information |
|||
| Mixer: | Hot And Cold Mixing Unit | Material: | Powder Material After Mixing |
|---|---|---|---|
| Control Box: | Independent Control Box | Motor: | Imported Brand |
| Inverter: | FUJI | Color: | Black |
| High Light: | wpc profile production line,wood plastic composite extrusion machine |
||
Product Description

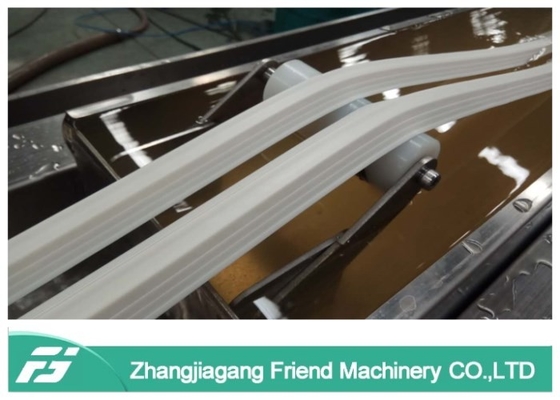

Flexible PVC Small Size Decoration Strip ProfileExtrusion Production Line
Machine specifications:
1. DTC1000 Screw Loader
| Model | DTC1000 |
| Motor Power | 1.5 kw |
| Brand | High quality China brand with CE |
| Making Material | High quality stainless steel |
| Feeding Height | Customized |
| Feeding Pipe Diameter | 114mm |
| Control Box | Independent controller |
2. SRL-Z-300/600 Mixer Unit
| Model :SRL-Z-300/600 | |
| High Speed Mixer Part | |
| Volume | 300L |
| Effective Volume | 200L |
| Motor Power | 40/55KW |
| Brand | High quality China brand with CE |
| Mixing Time | 8-15 min/pot |
| Rotating Paddle Speed | 475/950 |
| Paddle Pcs | 3 |
| Heating Method | Electrical Heating |
| Heating Power | 9 kw |
| Heat Transfer Medium | Heat conduction oil,Max 300℃ |
| Cover Open Type | air cylinder lift |
| Match With Stainless Steel Hopper | Yes |
| Cooling Mixer Part | |
| Volume | 600L |
| Effective Volume | 360L |
| Motor Power | 11KW |
| Brand | High quality China brand with CE |
| Mixing Time | 10-15 min/pot |
| Rotating Paddle Speed | 90rpm/min |
| Paddle Pcs | 1 |
| Cooling Method | Water cooling |
| Heating Method | Running Water≤0.2Mpa |
| Cooling Temperature | 40-60℃ |
| Heat Transfer Medium | 0-15℃ |
| Discharge Type | air cylinder discharge |
| Voltage | AC 380V 50Hz |
| Making Material | High quality stainless steel |
| Feeding Type | Screw Loader |
| Control system | |
| Electrical | DeliX breaker, omron temperature control |
3. Spring Loader
| Model | ZJF300 |
| Rated Capacity | 120kg |
| Making Material | High quality stainless steel |
| Hopper Volume | 120kg |
| Spring Diameter | 36mm |
| Feeding Pipe Length | 3meter |
| Material Box Volume | 150kg |
| Making Material | High quality stainless steel |
| Motor Power | 1.1kw |
| Brand | High quality China brand with CE |
| Control Box | Independent controller |
4. SJSZ-65/132 Conical Twin Screw Extruder
| Model | SJSZ-65/132 |
| Control Parts | ABB Inverter ,SIEMENS contacter ,Omron Temperature Meter |
| Inverter Brand | Imported brand |
| Head Flange Connection Type | Screw |
| Data display mode | OMRON |
| Screw | |
| Diameter | 65/132mm |
| Effective Length | 1440mm |
| Pcs | 2pcs |
| Material | 38CrMoAlA |
| Mesh Form Type | Conical Mesh |
| Heating Treatment Processing | Nitrided |
| Nitrided Layer Thickness | 0.6-0.7mm |
| Screw Rotating Speed | 1～35 r/min |
| Screw Brand | JINLI |
| Barrel | |
| Type | Integral Type |
| Material | 38CrMoAlA |
| Heating Treatment Processing | Nitrided |
| Nitrided Layer Thickness | 0.6-0.7mm |
| Heating Zone | 4pcs |
| Heater Type | Cast aluminum heater + stainless steel protective cover |
| Heating Power | 18 KW |
| Heating Temperature Range | 50~300℃ |
| Barrel Cooling Type | Air Cooling |
| Cooling Fan | Ion blower fan |
| Cooling Fan Power | 0.67kw |
| Brand | Wuxi brand |
| core of the confluence | 3Cr13 steel ,chromeplated |
| Brand | JinLi |
| Driver System | |
| Gear Box | China Brand with CE |
| Working Type | Direct Connect with Motor |
| Motor | Xindali brand AC Motor |
| Motor Power | 37 Kw |
| Material Feeding System | |
| Type | Spring Loader |
| Vacuum Pumping System | |
| Vacuum Pump Power | 1.5 Kw |
| Motor | AC Motor |
| Vacuum Level | 0~-0.08Mpa |
| Material Feeding System | |
| Material Feeding Type | Metering Feeding |
| Screw Feeding Speed | 0.5~50 r/min |
| Motor | 1.1 KW |
| Feeding Speed Adjustment Type | ABB Inverter Control |
5. Mold
| Size | |
| Material | 40CR steel |
6. ZK-240 Vacuum Calibration Table
| Table Length | 6m |
| Width | 0.6 m |
| Removing motor | 0.75 Kw |
| Brand | High quality China brand with CE |
| Water Pump | 2.2 Kw |
| Pump Type | Straight connect water ring seal vacuum pump |
| Vacuum Pump | 5.5 Kw×3 PCS |
| Brand | High quality China brand with CE |
| Vacuum Level (M Pa) | 0~-0.09Mpa |
| stereotyped box body | Match with visible glass |
| nozzle joints | yes |
| Center height | 1000±50mm |
| Control system box | yes |
| water filtration system | yes |
| Water temperature | thermostat automatically adjusts the water temperature and automatically changes water |
| Matched with light | |
7. QY Haul Off
| Traction Type | caterpillar traction |
| Effective traction length | ≤1500mm |
| Caterpillar | High quality rubber + chain |
| Traction speed | 0.3-8m/min |
| Motor | 3 Kw,High quality China brand with CE |
| Motor speed | 10~1500r/min |
| Traction speed adjustment | By ABB inverter |
| Crawler block width | 160 mm |
| Matched with guide roller | Yes |
| Clamping type | air cylinder type+ Crawler Block |
| Center height | 1000±50mm |
| Air pressure | 0.5~0.7MPa |
8. QG Knife Cutting Machine
| Cutting Type | Knife Cutting |
| Cutting Blade | Saw blade |
| Blade Diameter | 500mm |
| Cutting Speed | 2800r/min |
| Clamping Type | air cylinder type+ rubber |
| Cutting Range | Diameter 0-160mm pipe |
| Cutting Motor | China Brand with CE |
| Cutting motor | 3kw |
| Speed control system | PLC control system |
| Knife Lift Type | air cylinder type |
| Table displacement mode | air cylinder type |
| Stainless steel guide plate | yes |
9. Stacker
| Length | 5m |
| Material | High quality stainless steel |
| Discharge Type | air cylinder type |
10. SWP-400 Crusher
| Rotating Rotor Diameter | 400 mm |
| Rotating Blade | 5Pcs |
| Rotating Blade Speed | 560 r/min |
| Blade Making Material | SKD-11 |
| Fixed Blade | 2pcs |
| Motor Power | 11kw |
| Motor Brand | Xindali brand |
| Screen Diameter | φ10 mm or optional |
| Capacity | 150-300 kg/h |
| Fan Power | 1.5 kw |
| Cooling Fan Pipe Diameter | 132 mm |
12. SMP-400 milling machine
| Voltage | 380V/3P/50Hz |
| Contacter | Siemens contacter |
| Motor Speed | 3800 rpm/min |
| Motor Power | 22KW |
| Capacity | 150-200 kg/h |
| Control Box | 1 Pcs |
Spare Parts:
| 1. | Tool bag | 1set |
| 2. | Ceramic plug | 2pcs |
| 3. | high-temperature wire | 50m |
| 4. | thermoelectric couple | 2pcs |
| 5. | contacter | 2pcs |
| 6. | breaker | 2pcs |
| 7. | water spray nozzle | 50pcs |
| 8. | Cutting blade | 1set |
| 9. | Air tube | 20m |
| 10. | Installation Manul | 1pcs |
| 11. | Placing drawing | 1pcs |
| 12. | circuit diagram | 1pcs |
