110mm Diameter Plastic Pipe Machine High Output CPVC Hard Cable Protection

Minimum Order Quantity : 1 set Price : negotiation
Packaging Details : film packing and wooden case Delivery Time : 30-35 making days after down payments
Supply Ability : 20 sets per year
Place of Origin: Jiangsu,China Brand Name: Friend
Certification: CE,SGS,UV Model Number: SJSZ65/132

Detail Information

Application: Plastic Cable Protection Material: CPVC Resin
Extrusion: Conical Twin Screw Extruder Gearbox: Guomao Brand
Warranty: 1 Year Color: Optional
High Light:

tube extruder machine


plastic tube making machine

Product Description

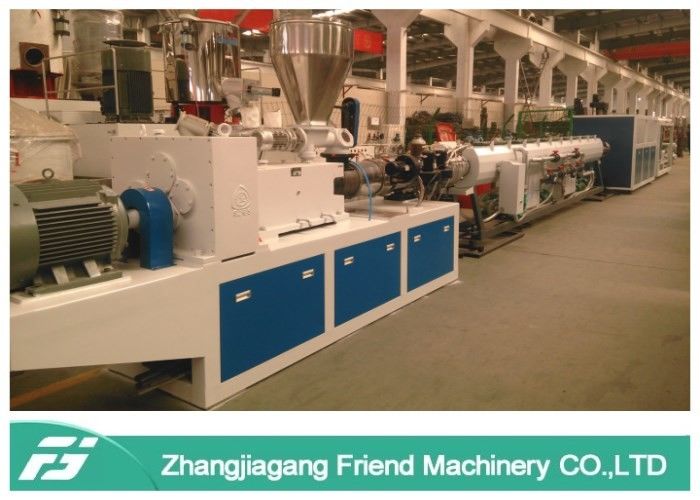

110mm Diameter CPVC Hard Cable protection Pipe Extrusion Production Line




CPVC power tube is to concentrate the product has high strength, good flexibility, high temperature resistant, corrosion resistant, flame retardant, insulation, no pollution, not easy ageing, qualitative light, construction is convenient wait for a characteristic, its various performance indicators by the national, provincial testing, appraisal and certification, are reaching or higher than the domestic similar products level. The product performance is better than the traditional asbestos cable pipe and ordinary PVC pipe, which is the ideal substitute for the traditional power cable sheath.


II.Machine specifications:


1. DTC1000 Screw Loader

Model DTC1000
Motor Power 1.5 kw
Brand High quality China brand with CE
Making Material High quality stainless steel
Feeding Height Customized
Feeding Pipe Diameter 114mm
Control Box Independent controller


2. SRL-Z-300/600 Mixer Unit

Model :SRL-Z-300/600
High Speed Mixer Part
Volume 300L
Effective Volume 200L
Motor Power 40/55KW
Brand High quality China brand with CE
Mixing Time 8-15 min/pot
Rotating Paddle Speed 475/950
Paddle Pcs 3
Heating Method Electrical Heating
Heating Power 9 kw
Heat Transfer Medium Heat conduction oil,Max 300℃
Cover Open Type air cylinder lift
Match With Stainless Steel Hopper Yes
Cooling Mixer Part
Volume 600L
Effective Volume 360L
Motor Power 11KW
Brand High quality China brand with CE
Mixing Time 10-15 min/pot
Rotating Paddle Speed 90rpm/min
Paddle Pcs 1
Cooling Method Water cooling
Heating Method Running Water≤0.2Mpa
Cooling Temperature 40-60℃
Heat Transfer Medium 0-15℃
Discharge Type air cylinder discharge
Voltage AC 380V 50Hz
Making Material High quality stainless steel
Feeding Type Screw Loader
Control system
Electrical DeliX breaker, omron temperature control


3. Spring Loader

Model ZJF300
Rated Capacity 120kg
Making Material High quality stainless steel
Hopper Volume 120kg
Spring Diameter 36mm
Feeding Pipe Length 3meter
Material Box Volume 150kg
Making Material High quality stainless steel
Motor Power 1.1kw
Brand High quality China brand with CE
Control Box Independent controller

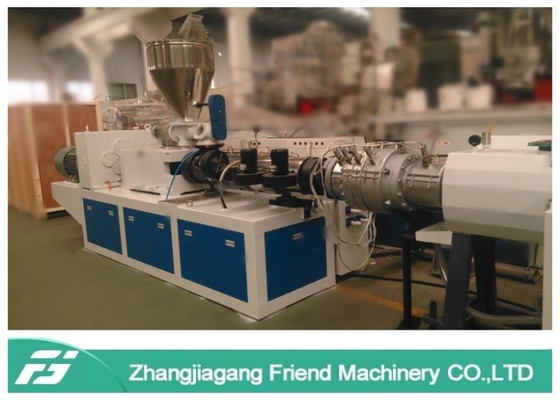

4. SJSZ-65/132 Conical Twin Screw Extruder

Model SJSZ-65/132
Control Parts ABB Inverter ,SIEMENS contacter ,Omron Temperature Meter
Inverter Brand Imported brand
Head Flange Connection Type Screw
Data display mode OMRON
Diameter 65/132mm
Effective Length 1440mm
Pcs 2pcs
Material 38CrMoAlA
Mesh Form Type Conical Mesh
Heating Treatment Processing Nitrided
Nitrided Layer Thickness 0.6-0.7mm
Screw Rotating Speed 1~32 r/min
Screw Brand JINLI
Type Integral Type
Material 38CrMoAlA
Heating Treatment Processing Nitrided
Nitrided Layer Thickness 0.6-0.7mm
Heating Zone 4pcs
Heater Type Cast aluminum heater + stainless steel protective cover
Heating Power 24 KW
Heating Temperature Range 50~300℃
Barrel Cooling Type Air Cooling
Cooling Fan Ion blower fan
Cooling Fan Power 0.25 W×3pcs
Brand Wuxi brand
core of the confluence 3Cr13 steel ,chromeplated
Brand JinLi
Driver System
Gear Box China Brand with CE
Working Type Direct Connect with Motor
Motor Xindali brand AC Motor
Motor Power 37 Kw
Material Feeding System
Type Spring Loader
Vacuum Pumping System
Vacuum Pump Power 1.5 Kw
Motor AC Motor
Vacuum Level 0~-0.08Mpa
Material Feeding System
Material Feeding Type Metering Feeding
Screw Feeding Speed 0.5~50 r/min
Motor 1.1 KW
Feeding Speed Adjustment Type ABB Inverter Control

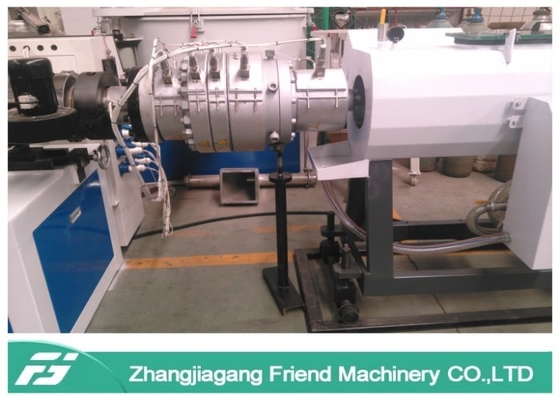

5. Mold


OD 3inches ( 76.2mm, ), 4inches ( 101.6mm ), 6inches

( 152.4mm )

Material 40CR steel

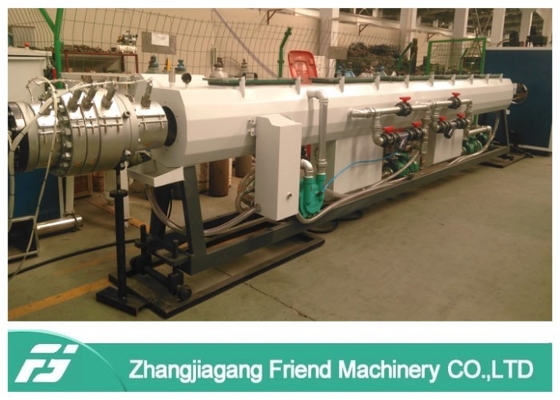

6. ZK-160 Vacuum Calibration Tank

Vacuum Calibration Tank Length 6m
Width 0.6 m
Suitable for 75-150mm
Removing motor 0.75 Kw
Brand High quality China brand with CE
Water Pump 4 Kw ×2 PCS
Pump Type Straight connect water ring seal vacuum pump
Vacuum Pump 4 Kw
Brand High quality China brand with CE
Vacuum Level (M Pa) 0~-0.09Mpa
stereotyped box body Match with visible glass
nozzle joints yes
Center height 1000±50mm
Control system box yes
water filtration system yes
Water temperature thermostat automatically adjusts the water temperature and automatically changes water
Matched with light


7. QY-160 Haul Off

Traction Type caterpillar traction
Effective traction length ≤1500mm
Caterpillar High quality rubber + chain
Traction speed 0.3-8m/min
Motor 3 Kw,High quality China brand with CE
Motor speed 10~1500r/min
Traction speed adjustment By ABB inverter
Crawler block width 160 mm
Matched with guide roller Yes
Clamping type air cylinder type+ Crawler Block
Center height 1000±50mm
Air pressure 0.5~0.7MPa


8. QG-160 Knife Cutting Machine

Cutting Type Knife Cutting
Cutting Blade Saw blade
Blade Diameter 500mm
Cutting Speed 2800r/min
Clamping Type air cylinder type+ rubber
Cutting Range Diameter 0-160mm pipe
Cutting Motor China Brand with CE
Cutting motor 3kw
Speed control system PLC control system
Knife Lift Type air cylinder type
Table displacement mode air cylinder type
Stainless steel guide plate yes


9. Stacker

Length 5m
Material High quality stainless steel
Discharge Type air cylinder type


10. SWP-400 Crusher

Rotating Rotor Diameter 400 mm
Rotating Blade 5Pcs
Rotating Blade Speed 560 r/min
Blade Making Material SKD-11
Fixed Blade 2pcs
Motor Power 11 kw
Motor Brand Xindali brand
Screen Diameter φ10 mm
Capacity 150-250 kg/h
Fan Power 2.2 kw
Cooling Fan Pipe Diameter 132 mm


11. MF-500 milling machine

Voltage 380V/3P/50Hz
Suitable Max 25 mm
Contacter Siemens contacter
Disk 1 Pcs
Fixed Blade 15PCS hardness : 55-58
Rotating Blade 28PCS hardness: 52-55
Rotating Blade Diameter 473mm±2mm
Motor Speed 3800 rpm/min
Motor Power 37 KW
Fan Power 3 KW
Airiock Power 1 pcs, 0.75KW
Capacity 150-200 kg/h
  1 Pcs
Dust Collection Bag1 1 Pcs, 16pcs
Cooling Water Pipe Stainless steel, 210mm diameter
Vibration Screen 1 Pcs
Vibration Motor 0.25 KW
Control Box 1 Pcs
