18.5kw Plastic Extrusion Line , Plastic Extrusion Equipment Energy Saving

China 18.5kw Plastic Extrusion Line , Plastic Extrusion Equipment Energy Saving supplier
18.5kw Plastic Extrusion Line , Plastic Extrusion Equipment Energy Saving supplier 18.5kw Plastic Extrusion Line , Plastic Extrusion Equipment Energy Saving supplier 18.5kw Plastic Extrusion Line , Plastic Extrusion Equipment Energy Saving supplier

Large Image :  18.5kw Plastic Extrusion Line , Plastic Extrusion Equipment Energy Saving

Product Details:

Place of Origin: JIANGSU
Brand Name: FRIEND
Certification: CE
Model Number: SJ-65

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Standard wooden package.
Delivery Time: 30 working days
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Motor Power: 18.5 Kw Motor Brand: SIEMENS
Screw Length: 1820 Mm Product Name: Plastic Extrusion Line

Plastic SJ-65 single screw extruder plastic extruder machine 25-60kg/h PE/PP extruding equipment



Application

  • Concerning our Extruders and Extrusion Lines you can rely on an unobstructed production. Our machine conception with direct drive and barrier screw providesextremely energy-saving Extruders of low maintenance requirements.
  • esde Single Screw Extruders are distinguished by their high output achievements on a low temperature level thus preventing the macro molecules from degradation and cross-linking processes. For melting the plastic material our Extruders receive the necessary heat almost exclusively from the motor. This heat is used in such an efficient way that the heating/cooling system on the barrel hardly requires operating.

Features

  • For plastic processing, extrusion has been used from the start. First to convey PVC and polyethylene, later also for engineering plastics.
  • The length of a screw is expressed as the ratio between diameter and length.
  • Since the emergence of crystalline engineering plastics, the length of the screws had to be increased.
  • The feed section is the part of the screw where the unmolten polymer enters into the barrel. The rotating screw moves the material along the heated barrel where it starts to melt.
  • In the compression zone, gases like air and volatiles like moisture, are being removed. In the compression zone, the flight depth decreases and gases are pushed back into the direction of the hopper.
  • Finally, the material enters the metering section. In this section, pressure is generatedwhich enables the material to be conveyed into the shaping area, like feed block or film die.
  • The compression ratio of the screw is the ratio between the flight depth of the feed section and the ratio of the metering section.
  • Most screws have a flight helix that is equal to the diameter of the screw.
  • Compression
  • Until the granules are molten, with every screw rotation, the material will be conveyed 1 speed. What has been conveyed is a mixture of roughly 50 % solids and 50 % air.
  • Without compression section, the molten material behaves like a foam. In the compression section, the volatiles are pushed back into the direction of the hopper.
  • The length of the compression section depends on the polymer to be extruded. The extreme example of PVC, the compression section comprised the full length of the screw. For crystalline polymers a very short compression section is recommended.
  • Mixing
  • All single screw extruders show some mixing effect, although very limited. For the proper dispersion of additives like stabilizers, antiblock agents, etc., mixing elements are being used.
  • There are various types of mixing sections, like Maddock, pineapple or pintype mixing elements.



Technical parameters

Screw

Diameter: 35mm

Screw L/D: 25

Material: 38CrMoAlA

Rotate Speed: 12rpm

Barrel

Heating Control Area: 3 areas

Neck heating: 1 area

Heating Way: Case aluminium heaters with electric fans for cooling

Cooling System: Barrel Fan Cooling, Low-noisy

Reducer motor:

Variable-Frequency and Variable-Speed motor

Power: 2.2~5.5 Kw

Rotate speed: 1450rpm (Max)

Reduction ratio: 130:1



SJ35 extruder is small extruder which has a low capacity. We also have bigger extruders such as:

Product Name

Screw

diameter

Aspect ratio Motor power Screw speed Max output
Unit mm L/D kw r/min kg/h
SJ25/25 25 25:1 1.5 100 3.4
SJ30/25 30 25:1 5.5 125 12.5
SJ45/25 45 25:1 7.5 100 20
SJ45/30 45 30:1 15 145 40
SJ65/25 65 25:1 22 100 60
SJ65/30 65 30:1 30 105 80
SJ90/25 90 25:1 55 120 150
SJ90/30 90 30:1 90 94 250
SJ120/25 120 25:1 90 94 350
SJ120/30 120 30:1 110 94 350
SJ150/25 150 25:1 110 40 320
SJ150/30 150 30:1 132 50 350
SJ200/25 200 25:1 160 30 500
SJ200/30 200 30:1 200 40 550

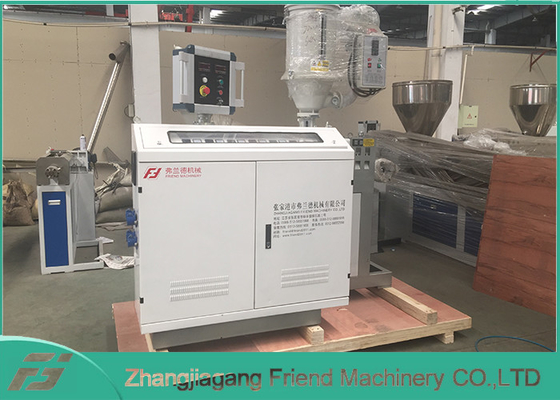

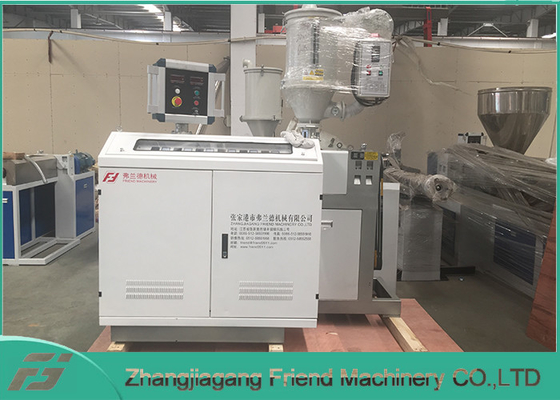

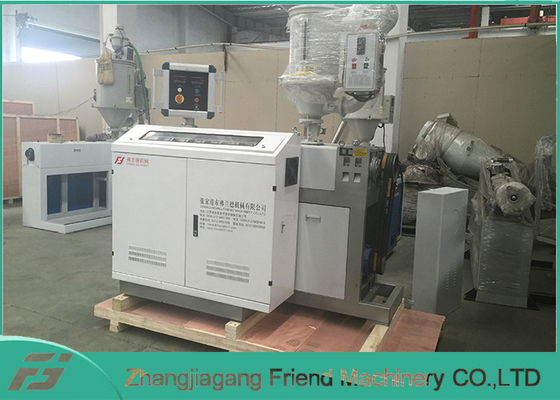

Machine pictures

18.5kw Plastic Extrusion Line , Plastic Extrusion Equipment Energy Saving



18.5kw Plastic Extrusion Line , Plastic Extrusion Equipment Energy Saving
