110-315mm Plastic Pipe Machine Pvc Water Pipe Making High Speed Production
Contact Person : Coco
Phone Number : +8618013292369
WhatsApp : +8618013292369
| Minimum Order Quantity : | 1 set | Price : | negotiation |
|---|---|---|---|
| Packaging Details : | film packing and wooden case | Delivery Time : | 30 making days after down payment |
| Supply Ability : | 20 sets per year |
| Place of Origin: | Suzhou,Jiangsu,China | Brand Name: | Friend |
|---|---|---|---|
| Certification: | CE,SGS,UV | Model Number: | SJ50/28 |
|
Detail Information |
|||
| Material: | Pvc Resin +fiber | Tube Forming Type: | Air Blowing |
|---|---|---|---|
| Capacity: | 60-80kg/h | Motor: | Siemens Brand |
| Inverter: | ABB | Warranty Time: | 1 Year |
| Color: | Optional | ||
| High Light: | pvc hose making machine,tube extruder machine |
||
Product Description

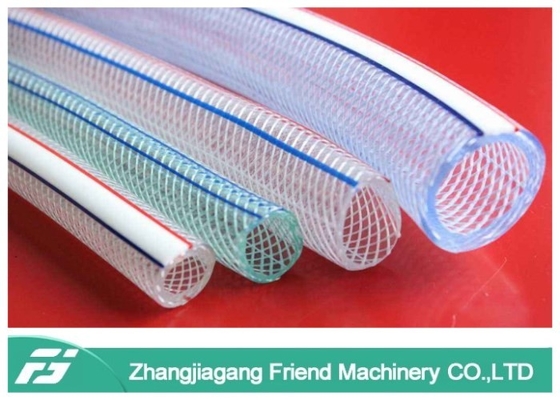

Three Layers PVC Flexible Fiber Reinforce Pipe Hose Tube Production Line
Desciption:
PVC Flexible Fiber Reinforce Pipe applications: widely used in various kinds of garden irrigation, community factory and household washing, vehicle washing, especially suitable for box water vehicles.
Characteristic;Bright bright color, light resistance, good weather resistance, soft and flexible, easy to move.
Applicable temperature: - 5 ℃ ~ 65 ℃
Technoical parameters:
1, Environment:
Location: indoor
Power supply: no danger areas
Humidity: 0.85 no condensation point:
Temperature:0-50
2, Working condition
Power supply:380V 50HZ +-10% , 3phase
Air supply:0.6~0.7Mpa

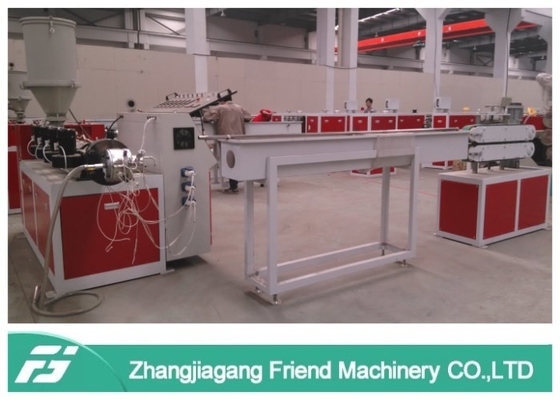

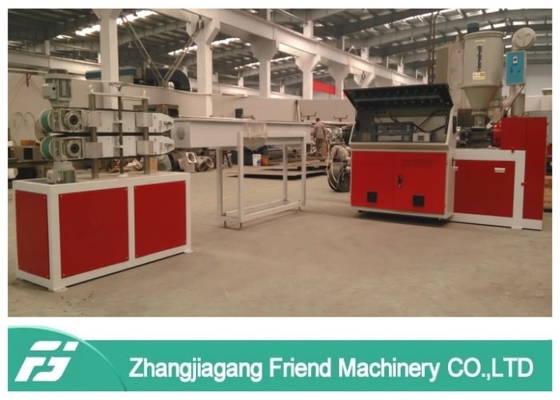

Extrusion Line
Install space:18m*1.4m*1.8m(length*width*height)
1. Average output:50-80kg/h+/-10%
Suitable for PVC Fiber Reinforced Hose 20-25-32mm making
3,Main Technical Standards:
| No | Equipment | Set | price |
| 1 | SJ50/28 Single Screw Plastic Extruder (inner layer ) | 1 | 36000 |
| 2 |
Mould
|
1 | 6000 |
| 3 | Haul-off Machine | 1 | 9000 |
| 4 |
Braiding Machine
|
1 | 22000 |
| 5 | Heating oven | 1 | 5000 |
| 6 | SJ50/28 Extruder +SJ25 +SJ25+SJ30 (outer layer ) | 1 | 69000 |
| 7 | Mould | 1 | 10000 |
| 8 | Haul-off Machine | 1 | 9000 |
| 9 |
Winder
|
1 | 8000 |
| 10 | Automatic loader | 2 | 3000 |
| 11 | 50 hopper dryer | 2 | 4000 |
| 12 | Bouding unit | 1 | 9000 |
| Total | 14 | 19000RMB | |

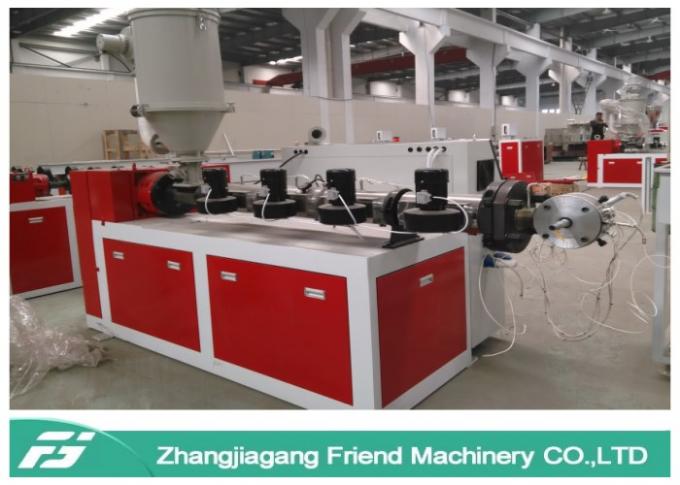

SJ45 Single Screw Plastic Extruder :
| Model No. SJ45 | |
| Screw Diameter | 45 mm |
| L/D | 28:1 |
| Screw Material | 38CrMoAlA |
| Hardness of Screw | HV900-1000 |
| Depth of Nitrogen Treatment | 0.4-0.7 mm |
| Screw Straightness | ＜0.015 mm |
| Screw Compression Ratio: | 3:1 |
| Main Motor Power | 7.5KW |
| Heating Method | Casting Aluminum Heater +304 stainless steel cover |
| Heating Zones | 4Periods |
| Heating power | |
| Cooling Method: | Forced Air Cooling |
| Cooling fan power | |
| Screw Maximum Rotating Speed | 0-89rpm |
| Central Height : 1000mm | 1000mm |
| 2,Main Parts: | |
| Name: | Manufacturer: |
| Main Motor |
XINDALI brand AC Motor
|
| Screw and Barrel | Jinjiu Screw |
| Electrical System |
Siemens Contactor OMRON Temperature Control Meter
|
| Converter | HOLIP Frequency Converter |
| Breaker | Delix brand |
| Ampere meter | AOYI brand |
| Gearbox | Hard Tooth Face ,Changzhou brand |
|
Gear speed rate
|
16:1 |
Mould :
| Application | inner layer |
| Connection type | Flange type connection |
| Mold making material | 40Cr steel |
| Size | 20-25-32mm |
| Heater | Mica heater |
| Matched with high pressure blower and air valve to adjust | |

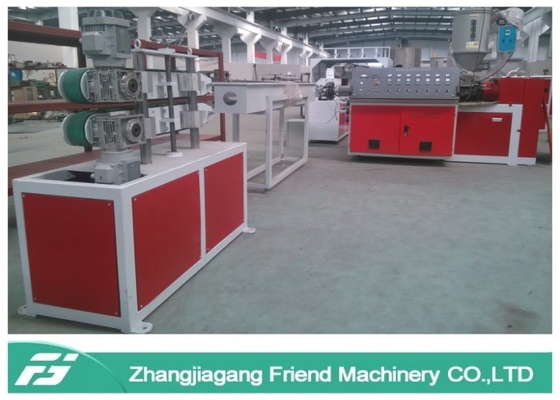

Haul-off Machine:
| Haul off Type | Belt type haul off |
| Belt width | 80mm |
| Workable traction length | 1000mm |
| Driving motor power | 0.55kw*2 |
| Motor brand | China brand with CE |
| Traction speed | 0-15m/min |
| Belt shaft height adjustment | manual |
| Center height | 1000mm |
| Match with traction roller | |
Braiding Machine:
| Suitable for | 8mm pipe |
| Max rotate speed | 220rpm |
| Power of motor | 1.5kw |
| Speed control by | ABB Frequency Converter |
| round buket making material | 304 stainless steel |
| round buket type | 1kg type |
| Fiber braid | 16pcs*2 +6pcs |
Heating oven:
| Oven dryness type | copper pipe heating |
| Copper pipe number | 1m*6 pieces |
SJ45 Single Screw Plastic Extruder:
| Model No. SJ45 | |||
| Screw Diameter | 45 mm | ||
| L/D | 28:1 | ||
| Screw Material | 38CrMoAlA | ||
| Hardness of Screw | HV900-1000 | ||
| Depth of Nitrogen Treatment | 0.4-0.7 mm | ||
| Screw Straightness | ＜0.015 mm | ||
| Screw Compression Ratio: | 3:1 | ||
| Main Motor Power | 7.5KW | ||
| Heating Method | Casting Aluminum Heater +304 stainless steel cover | ||
| Heating Zones | 3Periods | ||
| Heating power | 3.3kw | ||
| Cooling Method: | Forced Air Cooling | ||
| Cooling fan power | 0.255kw | ||
| Screw Maximum Rotating Speed | 0-89rpm | ||
| Central Height : 1000mm | 1000mm | ||
| 2,Main Parts: | |||
| Name: | Manufacturer: | ||
| Main Motor |
XINDALI brand AC Motor
|
||
| Screw and Barrel | Jinjiu Screw | ||
| Electrical System |
Siemens Contactor OMRON Temperature Control Meter |
||
| Converter | HOLIP Frequency Converter | ||
| Breaker | Delix brand | ||
| Gearbox | Hard Tooth Face ,Changzhou brand | ||
|
Gear speed rate
|
16:1 | ||
Mould :
| Application | Outer layer |
| Connection type | Flange type connection |
| Mold making material | 40Cr steel |
| Size | 20-25-32mm |
| Heater | Mica heater |
| Matched with high pressure blower and air valve to adjust | |
Haul-off Machine:
| Haul off Type | Belt type haul off |
| Belt width | 80mm |
| Workable traction length | 1000mm |
| Driving motor power | 0.55kw*2 |
| Motor brand | China brand with CE |
| Speed control by | ABB inverter |
| Traction speed | 0-15m/min |
| Belt shaft height adjustment | manual |
| Center height | 1000mm |
| Match with traction roller | |
Winder:
| Winder type | Single station winding |
| Motor | AC motor |
| Motor power | 5N |
| Brand | China brand with CE remarked |
| Winding speed asjustable | 0.5-8m/min |
| Match with traverse unit | yes |
| Outside diameter of roll | 700mm |
| Voltage | 3 Phase 380V 50HZ |
| Machine Color | Customized |
