TPE TPR Pellet Material Plastic Tube Machine , Plastic Pipe Making Machine

Minimum Order Quantity : 1 set Price : negotiation
Packaging Details : film packing and wooden case Delivery Time : 30 making days
Supply Ability : 20 sets per year
Place of Origin: Jiangsu,China Brand Name: Friend
Certification: CE,SGS,UV Model Number: SJ45/28

Detail Information

Material: TPE TPR Pellet Extrusion Temperature: 180-200
Motor: SIEMENS Brand Inverter: ABB Or HOLIP Brand
Color: Optional Warrnty: 1 Year
High Light:

tube extruder machine


plastic tube making machine

Product Description

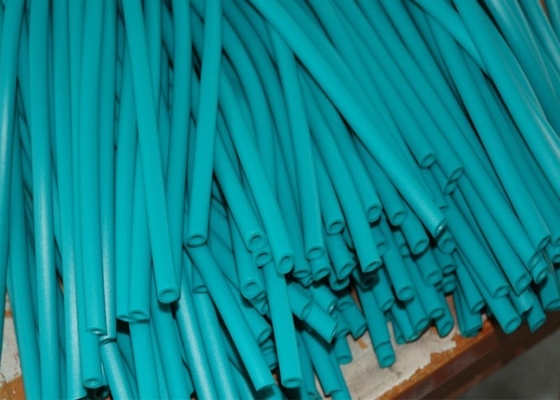

8MM OD TPR TPE Elastic Tube Pipe Hose Production Extrusion Line




TPR hose material TPR is also known as synthetic rubber or synthetic rubber.The advantages of TPR are mainly manifested in the following aspects:


(1) it can be processed by ordinary thermoplastic plastic forming machines, such as injection molding, extrusion molding, blow molding, compression molding, molding, etc.


(2) it can be vulcanized with rubber injection molding machine, which can be reduced to less than lmin by about 20min.


(3) the extruding machine can be used to form vulcanization, which can be pressed out fast and the time of vulcanization is short;


(4) the waste generated in the production process (off-side, extruded and waste glue) and the resulting waste can be returned directly to reuse:


(5) the used TPE products can be reused to reduce environmental pollution and increase the source of renewable resources.


(6) it does not require vulcanization, saving energy, taking high-voltage hoses as an example: rubber is 188MJ/kg, TPE is 144MJ/kg, it can save more than 25%;


(7) since the reinforcement is large and the formulation is greatly simplified, the influence of the synergist on the polymer is greatly reduced, and the quality performance is more easily mastered.


(8) expanded the application field of rubber products for the development of new ways for the rubber industry.The disadvantage is that TPE is less heat-resistant than rubber, and as the temperature rises, the physical property decreases greatly, so the scope of application is limited.At the same time, the compression deformation, resilience, and durability are relatively poor, and the price is often higher than the same rubber.


However, the advantages of TPE are still outstanding, while the disadvantages are constantly improved. As a new raw material for energy conservation and environmental protection, the development prospect is very promising



Machine Chart:

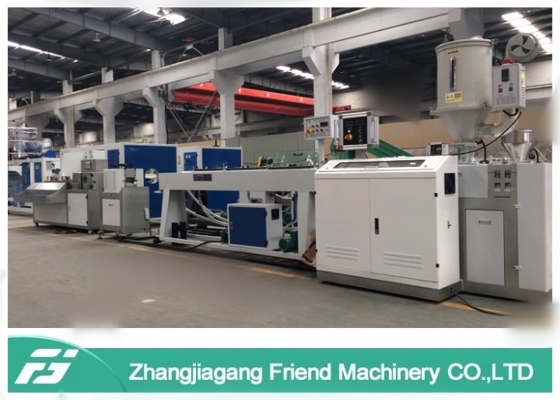

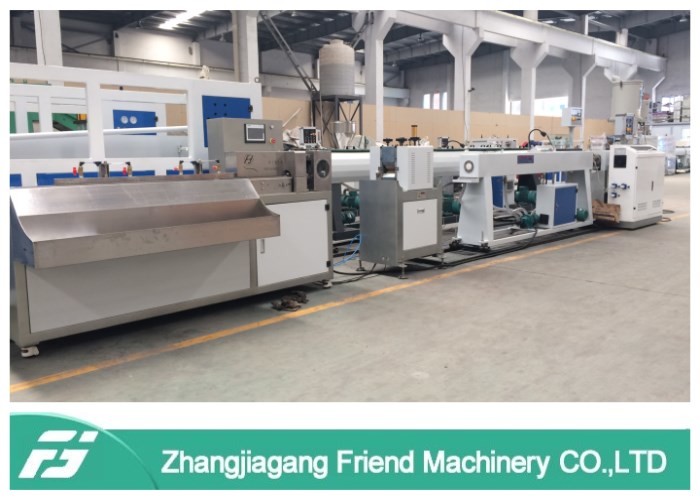

Automatic Loader---------Hopper Dryer--------SJ45/28 single screw extruder--------mold-------water cooling tank------- haul off machine------cutter






Model Details
Hopper Dryer

Material : Stainless Steel

Heating Power : 6KW

Fan Power : 0.37KW

Hopper Volume : 150KG/H



Single Screw Plastic Extruder

Screw Diameter :¢45mm

Ratio of L/D : 28:1

Screw Maximum Rotating Speed : 15-150Rpm

Motor Power : 7.5KW

Screw and Barrel Material : 38CrMoAlA Nitrogen Treatment

Depth of Nitrogen Treatment: 0.4-0.7

Screw Straightness : <0.015 mm

Hardness of Screw : HV800-1000

Heating Method : Casting Aluminum Heater

Heating Zones : 4Periods(Screw Barrel 3periods,Head Piece 1 Periods)

Heating Power:12KW

Cooling Method :Forced Air Cool

Cooling Zones :3 periods

Fan Motor Power : 180W*3= 0.54KW

Electrical System : ABB Frequency Converter

Temperature Control Meter : RKC

Gear Box : Hard Tooth Face

Central Height : 1000mm

Size : 1500*1090*2127mm

Weight : 400kg


Mold and Head

Mold Material : Steel 40Cr

Mold Size for OD10mm, ID 8.5mm tube Connection head material : 45# carton steel


 Water cooling tank


Material: 304 stainless steel

Heating device for good quality pipe forming

Water cooling tank parts :

Length : 1m

Material : stainless steel

Machine structure material : Q235 steel

(height and direction adjustable)

Size : 3000*1120*310

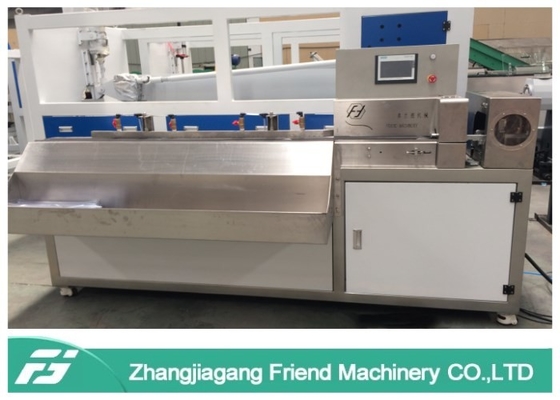

Haul off with cutting device

Haul off speed : 1-15m/min or required

Driving motor : 0.55kw*2

Cutter motor type : servo motor

Motor power: 1.5kw

Cutter blade material : high quality tooling steel

Final tube cutting length could be adjusted

Cutting tube number could be seen in PLC system

Control system ( PLC control system )

Size : 1500*900*850


TPE TPR Pellet Material Plastic Tube Machine , Plastic Pipe Making Machine 0

Why choose us?

We are a professional manufacturer of Plastic Extruders ,we produce plastic extrusion machine.

1. Cost performance is high

All the machine ,we make it ourself to reduce the cost of our customer.

2.Genuine product with excellent quality

We choose our material andequipment strictly.

All the material come to our factory must pass the quality test.

3.Engerneers available to serve oversea

4.Quick delivery

The company provide just in time delivery with its streamlined supply chain.

5.Cost saving

We take strong attention to every detail in the manufacturing process.

The quality control in our factory is very strict.

All defective semi-manufactures must be treated again or reject.

All the machine must be checked out ,then delivered to our customer.

All about that pushing up the price,but get good quality machine.

What we want to do is give our customer a good quality product with stable working and long lived.



Q: What is your delivery time?

A: Normally, it needs about 30 days. The exact time depends on production management.


Q: How long is your delivery time?

A: Generally it is 10-20 days if the goods are in stock. or it is 35-60 days if the goods are not in stock, it is according to quantity.


Pre-sales service:

>Introducing in detail features and application of the products to customer

>Selecting economical and practical machine & equipment for customer

>Providing operation data of the related machine & equipment

>Providing means of trial performance for customer

Sales service:

>Recommending engineering conditions required for installation of the machine & equipment

>Communicating in time the manufacturing progress of the machine with user

>Providing assistance in technical conditions, screw combination and barrel disposition needed for product

After-sales service:

>Providing on-the-spot technical assistance in installation, commission and training

>Filling in detail customer’s information

>Providing long-term maintenance service and spare parts

>Giving technical support to customer for developing new product

>Providing free maintenance for a year
