PP-B Cold Water Lower Pressure Plastic Pipe Machine For Water Supply / Drain Pipe

PP-B Cold Water Lower Pressure Plastic Pipe Machine For Water Supply / Drain Pipe

Product Details:

Place of Origin: Jiangsu,China
Brand Name: Friend
Certification: CE,SGS,UV
Model Number: SJ65/33

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: film packing and wooden case
Delivery Time: 30 making days
Supply Ability: 20 sets per year
Get Best Price Contact Now

Detail Information

Material: PP Pellet Capacity: 150kg/h
Motor: Siemens Brand Inverter: ABB
Temperature Controllers: Omron Brand Color: Optional
Warranty: 365days
High Light:

pvc hose making machine

,

plastic tube making machine

Product Description

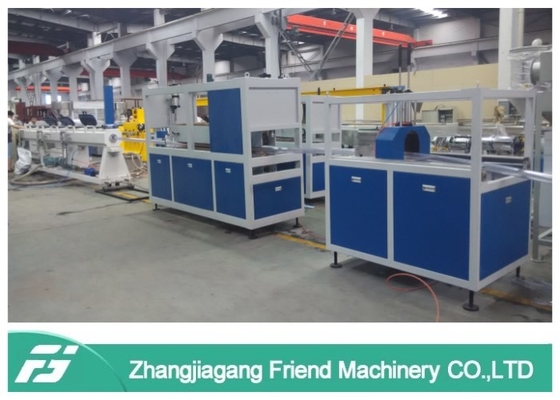

PP-B Cold Water Lower Pressure Pipe Hose Production Extrusion Line



Description:



PP - B hot and cold water pressure pipe is really a kind of suitable for cold water and low temperature hot water (60 ℃) or less features excellent good pipe.Over the years, it has been widely used in drinking water system, floor heating system and air conditioning system.Because PP - B pipe is of pp-r pipe is more outstanding low temperature impact resistant function and high elastic modulus E, especially in the winter construction and use, not easy due to the impact fracture, so in the field of the use of low temperature cold water pipe, the choice of more PP - B pipe material, it has become the consensus of people, and its usage will become more and more big.As a result, the pp-b pressure tube has now earned its rightful place in the new plastic pipe line.



Machine production :



Automatic loader ------------hopper dryer-------single screw extruder ---------- mold --------- vacuum forming tank ---------haul off machine ----------chipless cutter------------stacker



Technoical parameters:



S/N Item name QTY Specifications
1

SJ65/33

Single screw extruder



1 set

Screw :

Diameter of screw: Ф65mm

L/D:33:1

Material of screw: 38CrMoAl

Surface treatment: Nitride processing, thickness: 0.5 ~ 0.7mm, Polishing

Barrel:

Material of Barrel: 38CrMoAlA

Inner processing: Nitride with thickness: 0.5 ~ 0.7mm

Heating zones: 5

Heating mode: Cast aluminum + stainless steel covering

Heating power: 15KW

Cooling power: 0.25KW×5

Method of cooling: air blow

Driving motor:

Motor power: 37KW ( DC motor )

Rotating speed: 7-94rpm

Main electric part :

HOLIP inverter ( Famous Chinese Brand )

OMRON temperature controller

Siemens contactor

Jiangyin brand gearbox

Zhoushan brand screw and barrel



Self protective system:

Over current protective of motor

Over pressure protective of screw

Weight:2500kg

dimension(L×W×H): 3000mm*950mm*1300mm



PP-B Cold Water Lower Pressure Plastic Pipe Machine For Water Supply / Drain Pipe 0



Why choose us?



We are a professional manufacturer of Plastic Extruders ,we produce plastic extrusion machine.

1. Cost performance is high

All the machine ,we make it ourself to reduce the cost of our customer.

2. Genuine product with excellent quality

We choose our material andequipment strictly.

All the material come to our factory must pass the quality test.

3. Engerneers available to serve oversea

4. Quick delivery

The company provide just in time delivery with its streamlined supply chain.

5. Cost saving

We take strong attention to every detail in the manufacturing process.

The quality control in our factory is very strict.

All defective semi-manufactures must be treated again or reject.

All the machine must be checked out ,then delivered to our customer.

All about that pushing up the price,but get good quality machine.

What we want to do is give our customer a good quality product with stable working and long lived.





Q: What is your delivery time?

A: Normally, it needs about 30 days. The exact time depends on production management.



Q: How long is your delivery time?

A: Generally it is 10-20 days if the goods are in stock. or it is 35-60 days if the goods are not in stock, it is according to quantity.
