Product Details:

Place of Origin: Jiangsu province,China
Brand Name: Friend
Certification: CE,SGS
Model Number: SJSZ-55/110

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: negotiation
Packaging Details: Film package or wooden package
Delivery Time: 30 worker days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Get Best Price Contact Now

Detail Information

Material: WPC Powder Model Number: SJSZ
Warranty: One Year Screw Design: Double Screw
Capacity: 100-150 Kg/h Motor Power: 22 Kw
Motor Brand: SIEMENS Inverter: REXROTH
High Light:

wpc profile production line

,

wood plastic composite extrusion machine

Product Description

SJSZ-55/110 WPC skirting board extruder WPC profile extrusion line WPC skirting board production line



Application

SJSZ type series conical twin-screw extruder is specially suitable for the extrusion of all kinds of PVC/WPC powder. Equipped with different molds to produce all kinds of PVC/WPC profiles/board.

Screw is cooled by oil cooling system and the barrel by special air cooling system. good plastification and mixing effect,high capacity, wide range application, high reliability; special design gearbox and distribution box,strengthening the thrust bearing, big transmission torque,long service life. Electric control adopts PLC/PC automatic control, the conventional part is controlled with temperature controller, main part adopts imported components, and has a number of faults alarm function, with simple operation and convenient maintenance.



Features

Model SJZ-51 SJZ-55 SJZ-65 SJZ-80 SJZ-92

Master Power

(kw)

18.5 30 37 55 110

Production Midth

(mm)

120 180 350 600 1200

Vacuum Pump Power

(kw)

4 5.5 7.5 5.5 X 2

11 x 2

7.5 x 1

Tration Speed

(m/min)

0~4



0~4



0~5



0~3



0~2.5



Extrusion Capacity

(kgh)

110 150 220 350 580



Process

Raw material+wood power+Additive→Mixing → Granulating → Conical twin-screw extruder → Profile extrusion mould → Cool molding die → Vacuum calibration support → Belt haul-off → Cutter → Rack → Finished product inspecting& packing



Advantage

1) Used to produce plastic-wood compound materials, special shape materials, plate materials, and floor or wall panels
2) Arrangement: Extruding machine, vacuum shape fitting table, hauling off and cutting machine unit, stacking frame
3) Uses RKC from Japan to control the whole line
4) Easy to operate, works steadily
5) Uses kinds of moulds to produce large range of materials
6) Widely used

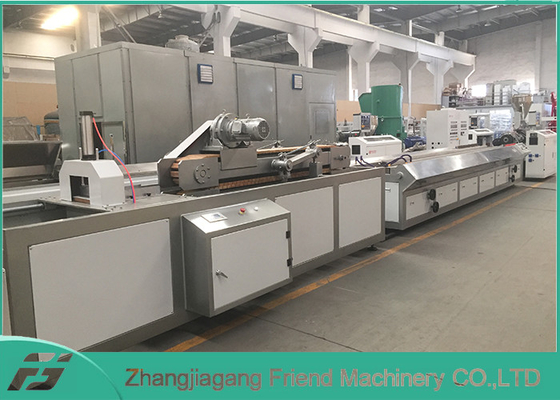

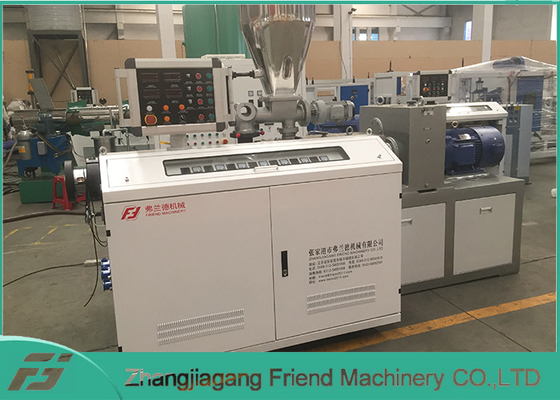

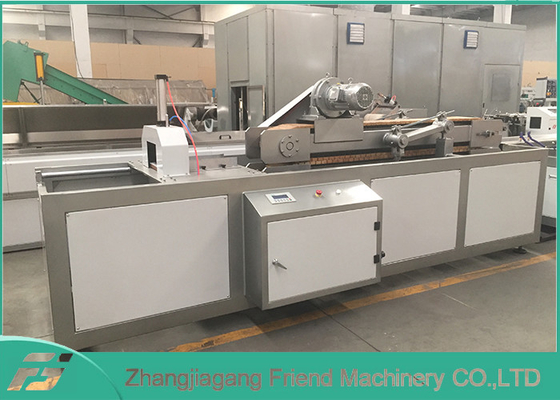

Machine pictures
