High Efficient Plastic Pipe Manufacturing Plant / Pvc Pipe Manufacturing Machine

Product Description

Length 125/150mm Diameter 65mm PVC Dental Suction Saliva Ejector extruder machine

Application

Applicable to the producing of all different kinds of high precise and efficient medical soft tubes, such as perfusion set, infusion set, catheter tube, nasal tube, suction tube, trachea cannula, anaesthesia tube, oxygen tube, latex tube and PVC short tube of disposable infusion apparatus and other medical soft tube product.

PVC Saliva Ejector extruder machine.
This is machine mainly used for the production of PVC Saliva Ejector.
Material: PVC (latex free,non-toxic)
Composition structure: Transparent PVC tube,copper interior wiring with chrome plated
Storage:Stored in dry, humidity below 80%, ventilated, non-corrosive gases warehouse
Production speed: Min 150 pcs per minute.

Description

Extruder: One set

1. Screw:

Type: Evolution screw High-strength steel nitride, electroplated hardness chrome.

Material: 38CrMoALA alloy steel

2. Barrel:

High-strength alloy nitride, high-precision machining with a round grinding, hard chrome plating

Barrel cooling method: air-cooled

Cylinder wall: to prevent the resin burned, required wall surface treatment

3. Driving devices:

High-precision worm gear reducer high efficiency and low noise

Main heating:

High efficiency heater

Solid-state relay control

Germany SIEMENS PLC temperature control module (PROGRAMMABLE LOGIC CONTROLLER)

Germany SIEMENS PLC Inverter Motor Speed Control Module

German SIEMENS HMI HMI (HUMAN MACHINE INTERFACE)

Taiwan more than wing ultra quiet high-efficiency air-cooled fan control

Extruding mould: 1 set (contain one type of product)

Die lip: one

Core bar: one

Calibration unit: one

Vacuum calibration trough

Length of trough: 4M

Main body of the trough: 304# stainless steel, treated with bended and welded.

Material of the trough Cover: high strength and transparent steel glass

Vacuum chamber: consists of 1.5kw vacuum pump, stainless steel chamber.

Tri-dimension movable water tank stand

Haul off machine

High effective and stable hauling off with the wedge-shaped strap, the surface coving the foam PU

High effective and stable reducer transmission

Mitsubishi high-precision servo motor drive (SERVO MOTOR)

Mitsubishi high-precision servo controller (SERVO MOTOR CONTROLLER)

Japan NEMICON rotary encoder feedback control (ROTARY ENCODER)

CUTTER

Aluminum alloy with low inertia rotary knife arm

Mitsubishi high-speed high-precision low inertia servo motor-driven response (SERVO MOTOR)

Mitsubishi Servo Controller (SERVO MOTOR CONTROLLER)

EVIEW HMI (HUMAN MACHINE INTERFACE)

Japan's Mitsubishi PLC controller to cut off the length of products

Product length tolerance: ± 1mm-1.5mm

Our service

1. We not only provide machines but also offer technical guide and market evaluate.
2. We will provide all the machines for the complete production according to customer's requirements.
3. We will provide complete service for factory layout and other information to help customer to build the factory.
4. We will provide good service for machine installation and training, until the customers can run the machines and make stably production.
5. Except one year quality guarantee, we will provide after-sell service for all the life.
6. For long-term cooperation, we always provide good quality, good price and good service to customer.

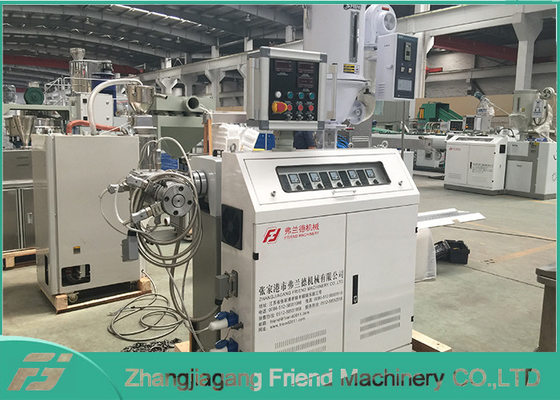

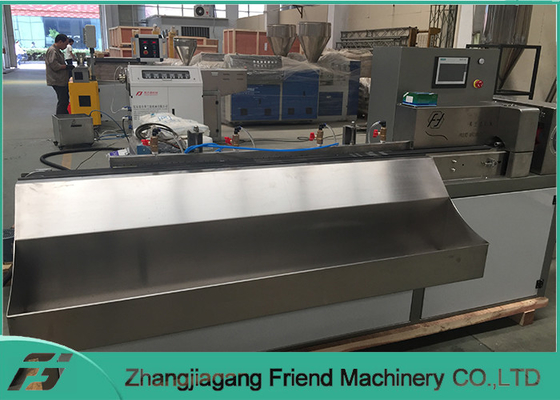

Machine pictures
