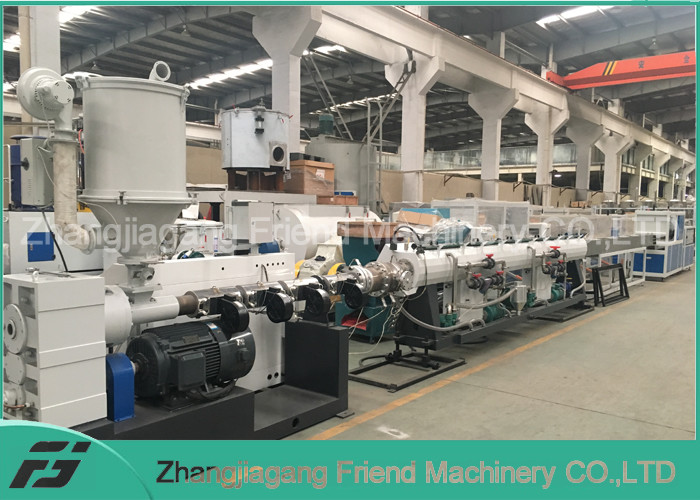

Plastic PPR PE Pipe Extrusion Line High Efficiency 11-110kw Motor Power

Minimum Order Quantity : one set Price : negotiation
Packaging Details : Film package, if wooden case package needs extra charge Delivery Time : 30 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20 sets per month
Place of Origin: China Brand Name: Friend
Certification: CE Model Number: SJ single screw extruder

Detail Information

Raw Material: PE Granule Warranty: One Year
Application: PE Pipe Pipe Diameter: 16-630mm
Motor Power: 11-110kw After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

pvc pipe manufacturing machine

,

plastic pipe extrusion machine

Product Description

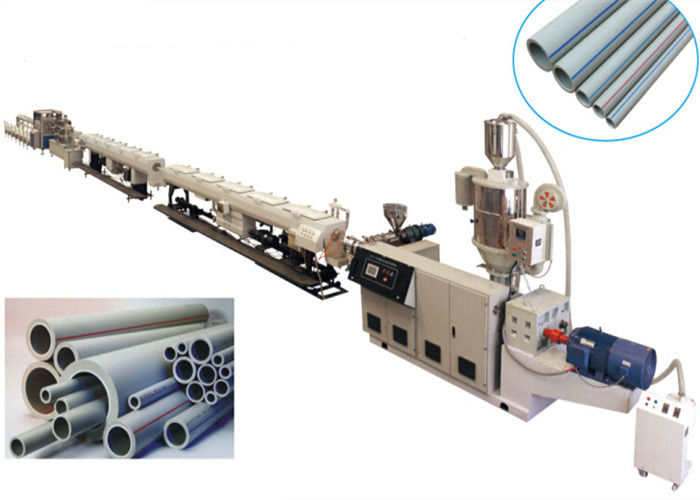

Plastic PE / HDPE pipe making machine / PPR pipe making extrusion line



Description of hdpe pipe making machine:



The screw of the extruder equipped with barrier unit and mixing structure, and the barrel owns new

style grooves. All of these offer good plastification and mixing effect.

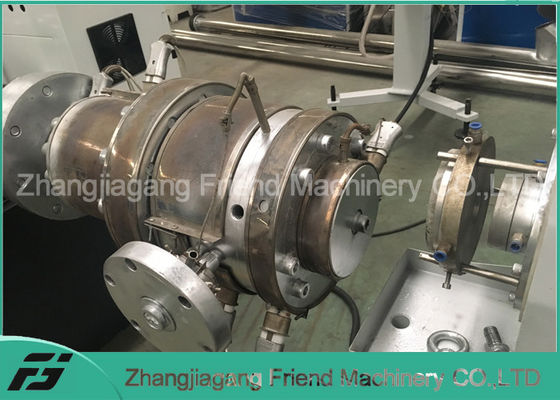

Special design of basket die head of for PPR large diameter pipe with thick wall offer lower melting temperature,

good mixing,lower pressure of cavity, and stable production.



Feature and advantage of hdpe pipe making machine:

(1) This production line aim at the characteristic of the PPR pipes.

(2) It adopts high efficiency single screw extruder can equipped with the Siemens PLC controlling system.

(3) It can realize the whole line automatic controlling of high capacity, stable extruding with the suitable changing of different units could realize the production job of PE-RT, PEX, PB pipe.



Process Flow of hdpe pipe making machine:

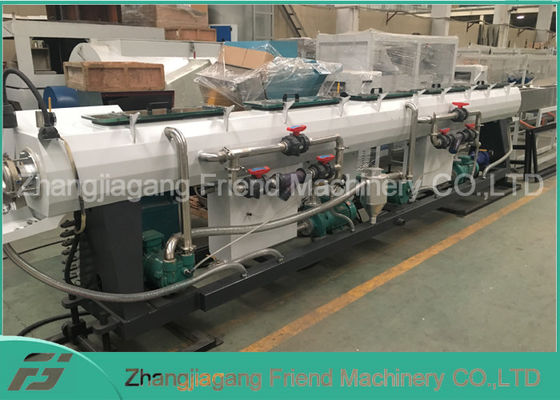

Raw material+master batches → Mixing → vacuum feeding → material dryness → single screw extruder →color string extruder → spiral mould → calibrator → spray vacuum calibration tank → spray cooling water tank →spray-code printer → belt haul-off → no-dust cutter → pipe rack → finished product inspecting &packing



Technical Parameters of hdpe pipe making machine:

Model

Screw Diameter

(mm)

L/D Pipe range

Capacity

(kg/h)

Main motor power

(kw)

Total power

(kw)

Line length

(m)

WT-PPR-63 65 33:1 20-63 70-110 45 90 24
WT-PPR-110(A) 75 33:1 20-110 110-150 55 110 30
WT-PPR-110(B) 75 33:1 75-110 110-200 90 150 30
WT-PPR-160 90 33:1 110-160 200-300 110 180

32





Picture:

Plastic PPR PE Pipe Extrusion Line High Efficiency 11-110kw Motor Power 0
