HDPE PVC PE Pipe Extrusion Line Large Size Automatic Control Easy Operation

Minimum Order Quantity : one set Price : negotiation
Packaging Details : Film Package Delivery Time : 30 days afrter receiving deposit
Payment Terms : L/C, D/A, D/P, T/T Supply Ability : 15 sets per months
Place of Origin: China Brand Name: Friend
Certification: CE Model Number: SJ

Detail Information

Material: PE Warranty: 12 Months
Brand: Friend Control: Automatic
After-sales Service: Ce Provided: Engineers Available To Service Machinery Overseas Weight: 3-10ton
Place Of Origin: Jiangsu,China (Mainland) Application: Pipe
High Light:

pvc pipe manufacturing machine


pvc pipe production line

Product Description

Plastic PE PP Multiple Pipe Machine / Extrusion Line / Production Line


Multiple use PP PE plastic pipe producing machine

stable working, high quality machine
competitive pri


Multiple use PP PE plastic pipe producing machine


Multiple use PP PE plastic pipe machine


Multiple use PP PE plastic pipe making machine


Multiple use PP PE plastic pipe production line


We are specialized in making all kinds of soft pipe, flexible pipe , corrugation pipe , and spiral pipe machine.

Our soft hose machine scope include :

  1. eva spiral hose machine
  2. swimming pool use hose machine
  3. industrial use spiral hose machine
  4. medical use spiral hose machine
  5. electric cable cover hose machine
  6. PU pipe machine
  7. PVC soft and rigid spiral pipe machine
  8. PP spiral hose machine
  9. water drainage pipe machine
  10. material transport hose machine
  11. siphon hose machine
  12. etc ……….

we introduce you corrugation hose making machine. this corrugation hose is single wall. It is use for:

  1. washing machine water drain
  2. electric cable protection
  3. air condition water drainage
  4. all industrial purpose for cable protect use
  5. medical use
  6. telecom industrial use
  7. Machinery building
  8. illuminating equipment
  9. automobile manufacturing
  10. flight equipments, metro
  11. trains and automatic control
  12. material can be PP HDPE LDPE PVC EVA PU and all other material possible.

following is machine parameters:

Pipe diameter range(mm) 4.5-9 9-32 32-63
Main machine model SJ-30 SJ-45 SJ-65
Main machine l/d 30:1 28:1 30:1
Production capacity kg/h 10 40 100
Main motor capacity kw 4 11 18.5
Molding machine capacity kw 1.1 1.5 1.5
Pair of modules 44 44 44
Cooling mode Water , air
Production (m/min) 6-10 5-12 5-12
Metering mode inducting mode
Coiling machine mode Motor-driven,Manually-operated


our machine brief introduction:

machine include:

  1. single screw extruder, with automatic feeding system and dry hopper.
  2. ceramic heaters. Screw and barrel made by Zhoushan screw and barrel basement famous company.
  3. die head and mould design according to pipe/hose thickness and diameter. Flow channel design according to different material pressure need.
  4. forming system has water and air cooling system. Gear drive. Four rotary shafts. Has automatic oil lubrication system.
  5. mould processed by CNC , high precision made.
  6. winding system cylinder control open and close. Two winding rollers.
  7. our machine can produce the pipe with cable and wire on line. The cables can be 6 pieces or more.
  8. the forming table has chain connect mould and channel push moulds two type .
  9. the forming method we can make air blowing and also can make vacuum forming .

10.electric panel : 2mm thickness , very strong. Electric parts: all use real famous brand of DELTA (TAIWAN), Omron , SEIMENS .


lWe focus on high quality machine. stable working machine, easy operation machine. we guarantee our machine will working stable without problems at your workshop.

lWe provide you all the solutions according to your different requirements.

lHonest business way, sincerely service , long term cooperation desire , we are always here , together with you, provide you latest technologies , and practical projects.

Please contact with me for further details quotation about the machine. we welcome you come to visit factory.

We participate Istanbul machinery fair and china plastic fair every year.

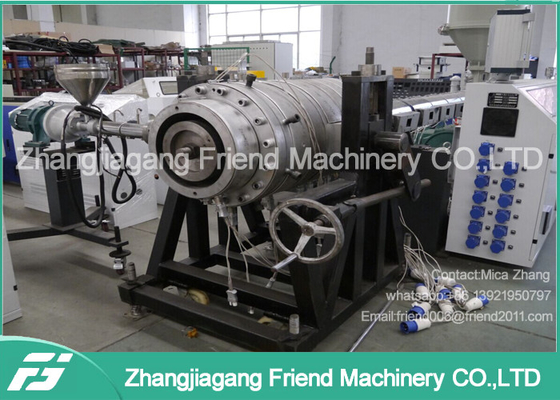

Following are some pictures of our machine. all pictrues from our factory. please don't use for advertisement use without our permission. thank you.

HDPE PVC PE Pipe Extrusion Line Large Size Automatic Control Easy Operation 0
