PVC Electrical Pipe Manufacturing Machine With Conical Double Screw Extrude

Name: PVC Electrical Pipe Manufacturing Machine With Conical Double Screw Extrude
Brand: Zhangjiagang Friend Machinery Co., Ltd.
SKU: SJSZ
Price: 100000.00 USD
Availability: InStock

Brand Name:	Friend
Model Number:	SJSZ
MOQ:	one set
Price:	negotiation
Payment Terms:	L/C, T/T
Supply Ability:	25 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Raw Material:

PVC Powder

Warranty:

12 Months

Motor Power:

18.5kw,37kw

Application:

PVC Electric Pipe

Model:

SJSZ51/105,SJSZ65/132

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Packaging Details:

Film package,if wooden case needs extra charge

Supply Ability:

25 sets per month

Highlight:

tube extruder machine

plastic tube making machine

Product Description

PVC electric conduit pipe making machine / Double pipe extrusion line

Description of PVC electric conduit double pipe extruder extrusion line:

The UPVC / PVC pipe machinery is equipped with conical double screw extruder.

With this machine, the line can achieve a high-efficient production.

The final products are widely used in protecting wires and cables in daily life or industry and construction.

It has the advantages of wear-resisting and moisture proof so it can make wires and cables safe.

PVC threading pipe extrusion line is mainly used to produce all kinds of PVC pipes, which are widely used in water supply and drainage of agriculture land and buildings, and cable laying. This production line is composed of conical twin screw extruder, and vacuum sizing device, traction machine,cutting machine and roll over stand.

Process flow of PVC electric conduit double pipe extruder extrusion line:

Raw material+additive→mixing → conveying feeding → force feeding → conical double screw extruder → "one mould two pipes"mould → calibrator → double spray vacuum calibration tank → ink printer → double belt haul-off → double uplift cutter → double pipe rack → finished product inspecting & packing

Technical Parameters of PVC electric conduit double pipe extruder extrusion line:

Model	Auxiliary	Screw Diameter(mm)	Pipe Range(mm)	Capacity(kg/h)	Main motor power(kw)	Total Power(kw)	Line Length(m)
U-PVC40	One mould two	51/105	16-40	80-120	18.5	50	22
U-PVC63	One mould two	65/132	75-63	120-250	37	100	25

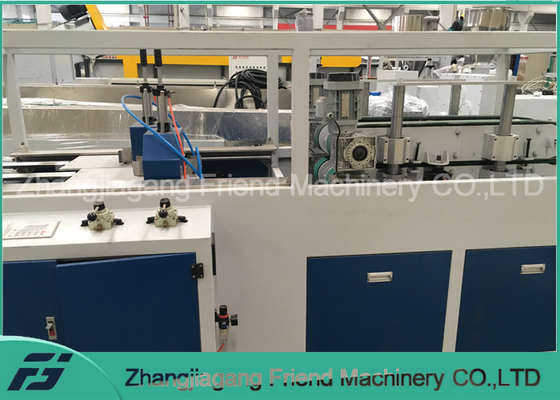

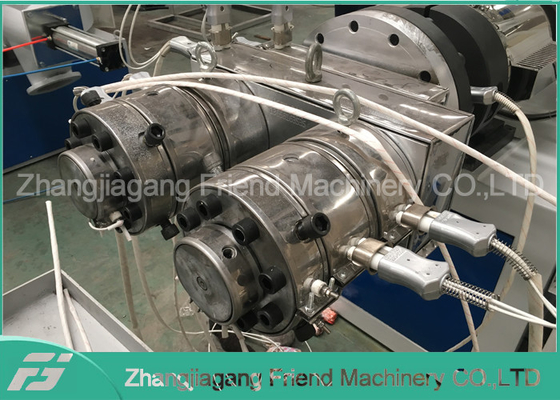

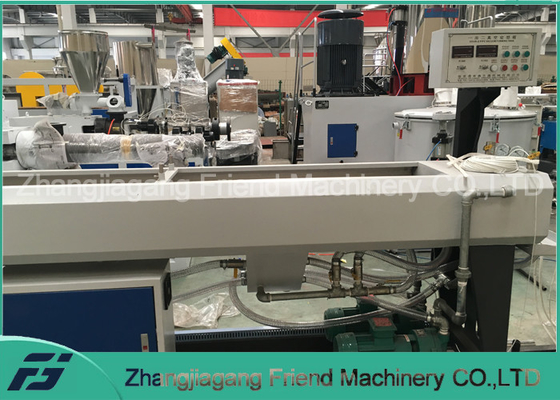

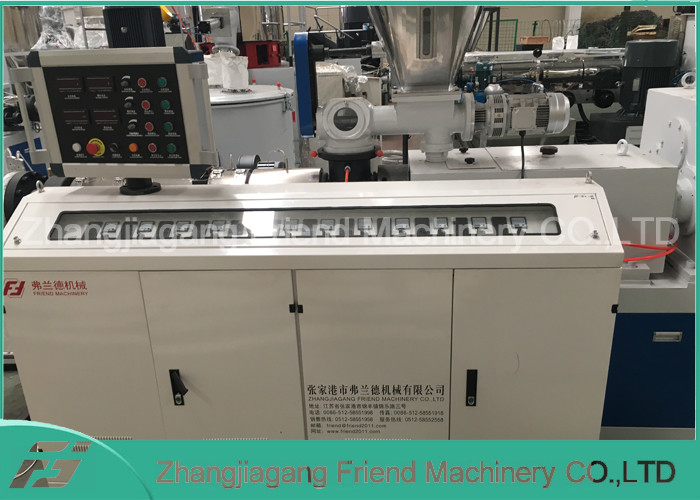

Picture:

PVC Electrical Pipe Manufacturing Machine With Conical Double Screw Extrude 0
