Small Laboratory 3d Printer Filament Extruder Machine For PLA ABS Material

Small Laboratory 3d Printer Filament Extruder Machine For PLA ABS Material

Product Details:

Place of Origin: China
Brand Name: Friend
Certification: CE
Model Number: FLD-25

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: negotiation
Packaging Details: Wooden package
Delivery Time: 7 working days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Material: PLA,ABS Warranty: One Year
Capacity: 0.5-2kg/h Diameter: 1.75mm,3mm
Tolerance: +_0.03mm Weight: 220kg
Voltage: 220V,50HZ Color: Customized
High Light:

plastic extrusion equipment

,

twin screw extruder machine

Product Description

small laboratory 3d printer filament extruder machine for PLA ABS material



Description:



With the rise of 3D printing technology,3D printer has been used by designers, engineers and scientists to produce the disposable mechanical products and model, and it is already widely used in health care, education, toys, building, automobile, electronics, and anime field.



INTRODUCTION:

APPLICATION: 3D Printer filament production line

PROCESSING MATERIALS: PLA ABS for 3D printer filament

CONTROL SYSTEM: "SIEMENS" PLC touch screen full automatic control

FILAMENT DIAMETER: 1.75mm and 3.00mm

FILAMENT DIAMETER TOLERANCE: 0.03mm



advantages as follows:

1 Big capacity compared with other suppliers who use the same model.

2 Lowest tolerance:+/- 0.02 mm.

3 Both 1.75 and 3.00mm filament diameter

4 It can process multi-materials like PLA ABS PET PA HIPS .

5 Easy operation: SIEMENS PLC full-auto controling system

6 Stable quality with good price

7 Oversea service, installation, staff trainning and technical support.



Tips for different raw material when processing extruder:



ABS filament process temperature is 230-260° C,melting point is 230° C

PLA 3D printer filament is 210-235°C, melting point is 200°C

PVA temperature for printer is 180°C-200°C.Melting point is 200°C.

PA Nylon temperature for printer is 220°C-250°C.Melting point is 260°C

PC temperature for printer is 230°C-250°CMelting point is 260°C.

HIPS filaments temperature for printer is 160°C-220°C,Melting point is 230°C.





Features of Desktop 3D printer filament lab extrusion pilot line


1) Using SIEMENS touch operation, real-time display of the running state, alarm information and system parameters
2) PID temperature control, the accuracy up to ±1℃
3) Pressure closed loop control is used to improve the stability of the extrusion pressure and the uniformity of the 3D printer filament
4) The traction unit using imported servo motor drive and is composed of the closed-loop control system with diameter measuring instrument, which can quickly respond to the change of the speed of the extruder, so as to achieve the requirement of the accuracy
5) The use of special winding tension transducer, to ensure the tension balance, rolling smooth and tidy, to avoid the phenomenon of knot
6) Remote monitoring can be achieved for you to build an intelligent automatic to provide convenient conditions

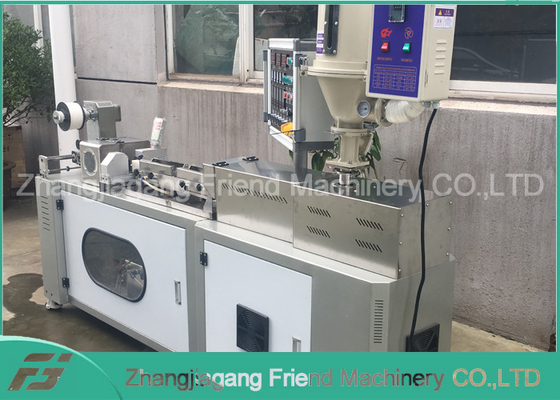

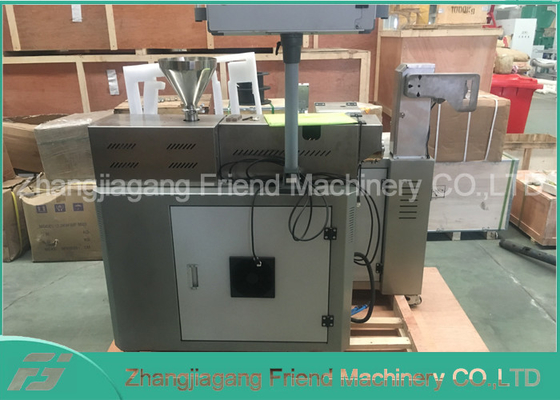

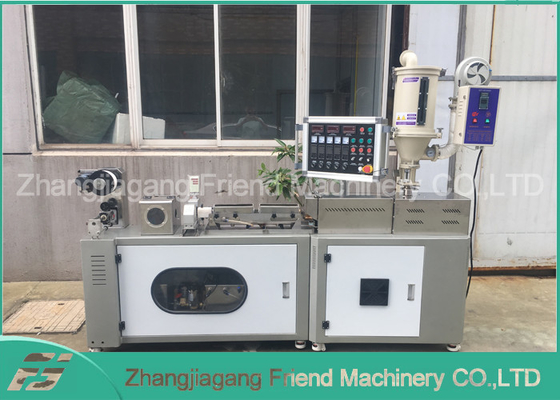

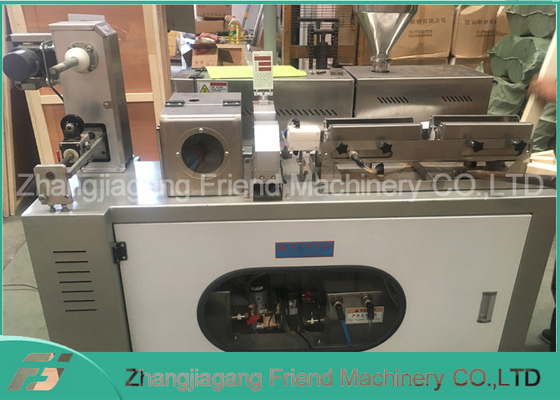

Picture:



Small Laboratory 3d Printer Filament Extruder Machine For PLA ABS Material 0
