65-150kg Two Stage Advanced PVC Pelletizing Line For PVC Cable Material

Minimum Order Quantity : one set Price : negotiation
Packaging Details : Film package Delivery Time : 30-40 days
Payment Terms : L/C, D/A, D/P, T/T Supply Ability : 20 sets per month
Place of Origin: China Brand Name: Friend
Certification: CE Model Number: SJSH

Detail Information

Material: PVC Cable Material Warranty: One Yeaar
Application: Granule Screw Design: Double Screw
Control: Automatic After-sales Service Provided: Engineers Available To Service Machinery Overseas
Voltage: 380V Or Customized Power: 75kw
High Light:

waste plastic recycling pelletizing machine

,

pvc granulating machine

Product Description

65-150 two stage extruder pelletizing line for PVC cable material



Application of PVC granulating line:



This machine can be applied to granulate the recycled material of rigid PVC, soft PVC and waste PVC.

It can be stopless in the course of production.It used pneumatic conversion and strong-wind blowing. At the same time can adjust stainless steel storage container and can run at high speed for a long time while extrude stably.





The process flow of PVC pelletizing line is as following:



PVC compounding loading machine→Extruding machine→pelletizing machine → air blowing convey system→ storage tank→ Vibrating sieve→Air blowing system→storage tank and convey pipe→air blowing system →storage tank





Features of product:



1. advanced equipment, precise pelletizing and high producing capacity.



2. Conical double-screw extruder and single screw extruder,very suitable to process PVC powder with high capacity



3. Pelletizing style: Hot-cutting on mould face, even cutting ensures good shape.



4. Auxiliary machine: Pellets cooling & classifying.





Technical:



Hard PVC Cable Material Two Stage Pelletizing Line/China Pc Pa Abs Pet Bottle Recycling Machine Price



Raw material:



PVC cable material, sole material, transparent bottle material, medical material, low smoke zero halogen or halogen free flame retardant cable material, EVA shielding material, PE/EVA carbon black mother material and all kinds of crosslinking cable materials so on, radiation crosslinking cable materials.



Induction:



The first stage is Co-rotating twin-screw compounder. Use the twin-screw advantage of high-speed,

high shear, strong compounding to realize material full plasticization and compounding, because no drivehead back pressure, so we can according to different materials flexibly arrange screw array to achieve the best compounding condition.



The second stage is single screw extruder.The screw low-speed and deep groove feature provides a low

cut processing environment , while mating barrel cooling, to prevent the plasticized material from generating thermal decomposition in high-pressure extrusion.



Picture:

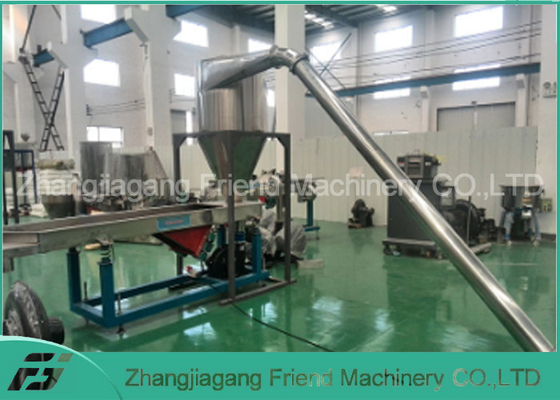

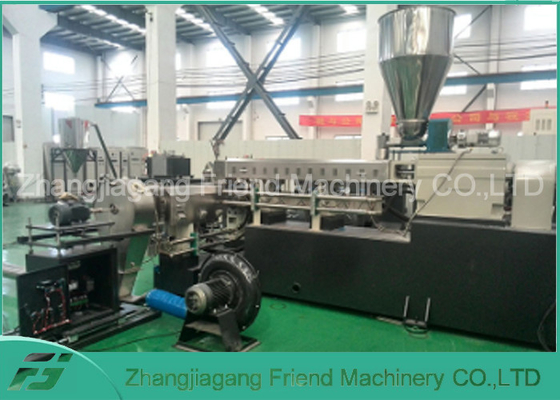

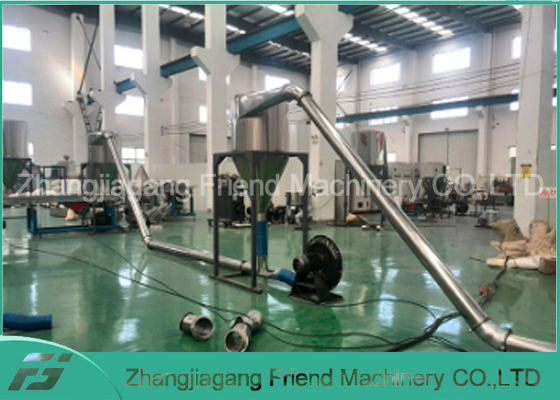

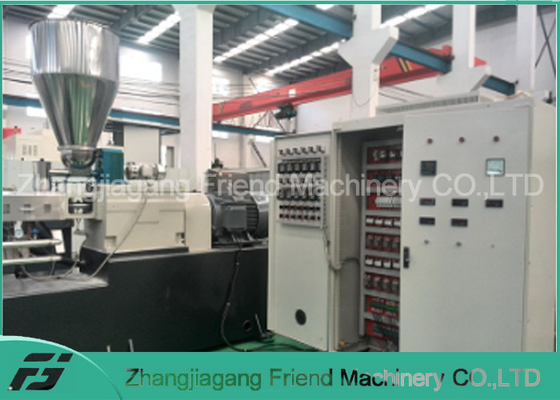

65-150kg Two Stage Advanced PVC Pelletizing Line For PVC Cable Material 1
