PU transparent steel air hose / TPU clear dust collection hose making macine

China PU transparent steel air hose / TPU clear dust collection hose making macine supplier
PU transparent steel air hose / TPU clear dust collection hose making macine supplier PU transparent steel air hose / TPU clear dust collection hose making macine supplier PU transparent steel air hose / TPU clear dust collection hose making macine supplier PU transparent steel air hose / TPU clear dust collection hose making macine supplier

Large Image :  PU transparent steel air hose / TPU clear dust collection hose making macine

Product Details:

Place of Origin: China
Brand Name: Friend
Certification: CE,SGS,TUV
Model Number: SJ45

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: negotiation
Packaging Details: Film package
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Raw Material: PU,TPU Warranty: One Year
Capacity: 20-40kg/h Motor Power: 15kw
Motor Brand: Siemens BEDE Temperature Control Table: Omron
Model: SJ45 Single Screw Extruder Voltage: 380V Or Customized

PU transparent steel air hose / TPU clear dust collection hose making macine





Usage:



abrasive solids such as dust , powders, fibers , chips , and particulate matter ;
Gaseous medium , such as oil vapors and welding smoke ;
Industrial dust and suction , particle objects conveyor systems, printing machines , blowers and compressors ;
As a robust anti-wear protection tube ;
Road sweepers, lawn mowers, lawn mowers and leaf collecting emissions ;





Materials:




Polurethane(PU),TPU





Description:



Helix Suction pipe Hose production line

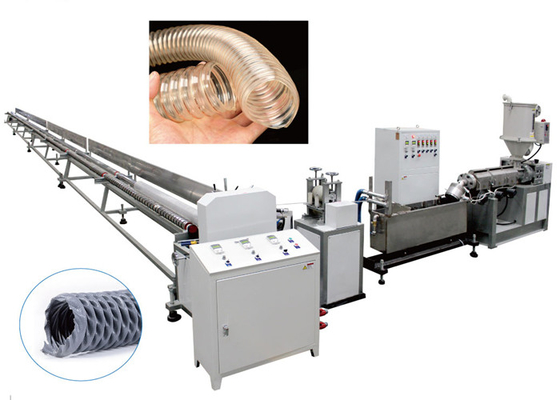

The Helix Suction pipe Hose production line is mainly composed of two extruders, spiral forming unit, water cooling tank, haul off, coiler etc.

This hose is also called PVC suction hose, which takes the advantages of extrusion resistance, corrosion resistance, negative pressure resistance, anti-bending, good liquidity.

So it is suitable to convey gas, liquid and powder, widely used in industry, agriculture, constructionn and irrigation, etc.





Working process:



Helix Suction pipe Hose production line

Raw material+additive→Mixing→Granulating→Conveying feeding→Single screw extruder→Steel wire forming machine→Extruding mould→Spray cooling water tank→Belt haul-off→Winder→packing





Technical Parameter:



Model SJ45 SJ65 SJ90 SJ120
Extruder SJ45/30 SJ65/30 SJ90/30 SJ120/30
Motor power 7.5 kw 15 kw 30 kw 55 kw
Hose Diameter 12-20 mm 25-50 mm 50-75 mm 75-150 mm
Capacity 20-40 40-80 100 -130 120 -150







Features:



Flexible bending ( bending radius slightly larger than the radius ) ;


Superior wear resistance ;


Good weather resistance ;


Electro-static discharge by grounding wire ;


Non-toxic , tasteless, good flame retardant properties .


1 A Copper plated steel helix embedded between two layers of polyurethane;


2 Transparent wall, wall thickness from 0.4mm~1.2mm;


3 Extremely flexible and compressible: 1:4;


4 Excellent internal and external abrasion and tearing resistant;


5 The Copper plated steel helix can be made antistatic;


6 Temperature range:-40°C to +90°C (max. 125°C for short period);


The device is independently developed by our company , low energy consumption , high output, molding machine specially manufactured for my company , the production of qualified steel pipe products , specification compliance, product flexibility, and resistance to use .
Responsible for installation , provide technical support, provide hands-on training .

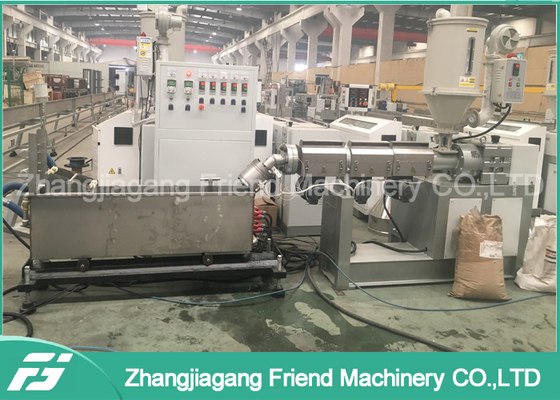

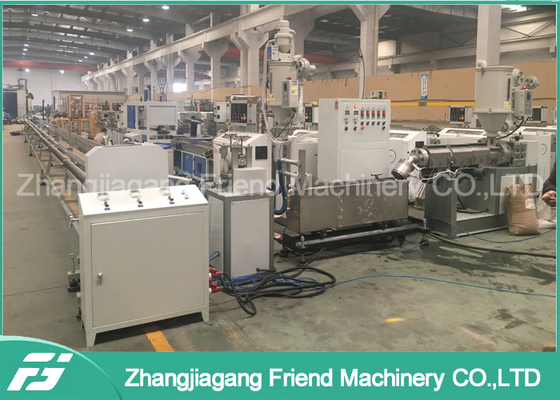

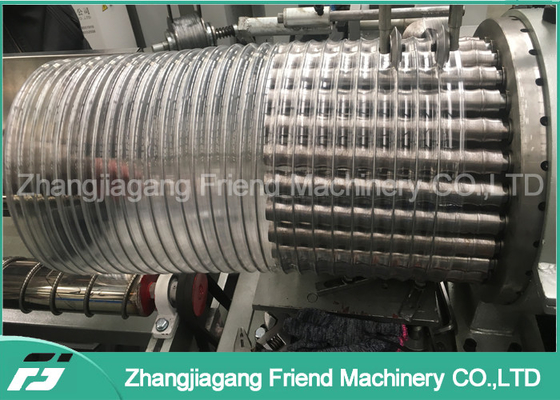

Pictutrs:



PU transparent steel air hose / TPU clear dust collection hose making macine
