Door Skirt Extrusion PVC Plastic Profile Production Line Double Screw Design

Name: Door Skirt Extrusion PVC Plastic Profile Production Line Double Screw Design
Brand: Zhangjiagang Friend Machinery Co., Ltd.
SKU: SJSZ
Price: 30,000.00 USD
Availability: InStock

Brand Name:	Friend
Model Number:	SJSZ
MOQ:	one set
Price:	USD 20000-40000 per set
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	20 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,SGS,TUV

Application:

PVC

Screw Design:

Double Screw

Voltage:

380V 50HZ Or Customized

Automatic Grade:

Fully Automatic

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Color:

Customize

Controller:

PLC Control

Warranty:

One Year

Packaging Details:

Standard package

Supply Ability:

20 sets per month

Highlight:

pet strap making machine

blown film extrusion line

Product Description

Door skirt extrusion line / PVC skirting profile extrusion line / production line

The application of Door skirt extrusion line:

It is mainly used for making PVC window/door/wall profile, PVC ceiling/panel ...for decoration with different profile break-section moulds.

It can also produce Wood+PVC profile, etc. with different screws.

If use single screw extruder, it can also produce other plastic profile, ceiling and panel.

The list of one of Door skirt extrusion line for your reference:

NO.	Equipment	Qty.
1	Conical Double Screw Extruder	1set
2	Mould	1 set
3	Screw Feeder	1set
4	Vacuum Forming Table	1set
5	Haul-off unit	1set
6	Cutter	1set
7	Stack	1set
8	Spare Parts(free)	1set

The working process of Door skirt extrusion line:

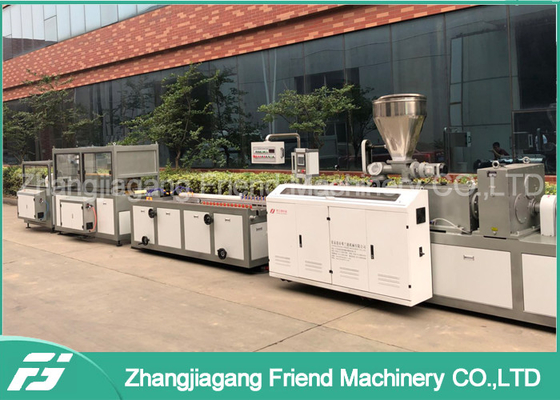

Raw material → mixing → feeder → double screw extruder → vacuum calibration table → haul-off unit → cutting machine → stacker.

Other auxiliary equipments are mixer, laminating machine and so on.

Some main paremeter of Door skirt extrusion line:

Model	MSXC180	MSXC240	MSXC300	MSXC500
Max. width of product(mm)	180	240	300	500
Extruder model	SJSZ55/110	SJS65/132	SJSZ65/132	SJSZ80/156
Extruder power(kw)	22	30/37	37	55
Cooling water(m3/h)	5	7	7	10
Pressure of compressed air(MPa)	0.6	0.6	0.6	0.6

Now Door skirt extrusion line is one of our leading products. Now we' ve obtained rich experience in design and manufacture of the whole extrusion lines.

Our Service:

1) We recommend of machine and auxiliary equipment and relevant budgeting, human resources allocation and budgeting.

2) We provide you with free training so that you can use and maintain the machine independently.

3)We will answer customer's questions on technology in time. If needed, we will offer on-site guidance and assistance.

Pictures:

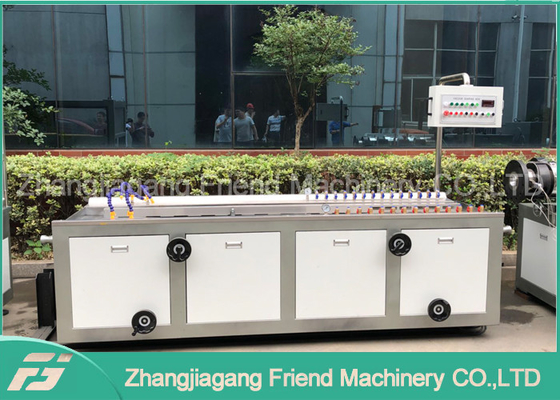

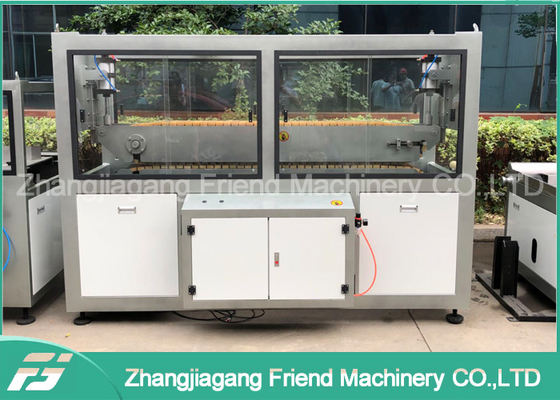

Door Skirt Extrusion PVC Plastic Profile Production Line Double Screw Design 0

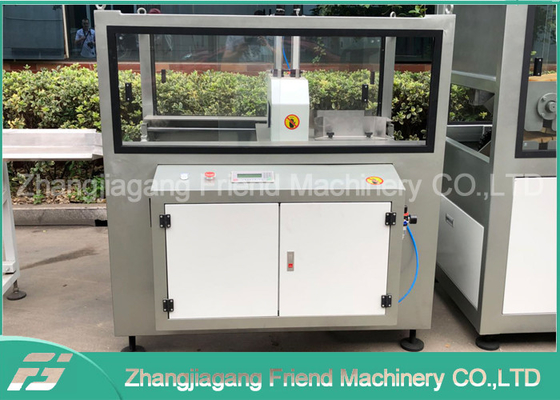

Door Skirt Extrusion PVC Plastic Profile Production Line Double Screw Design 1
