25~60 Mm Plastic Profile Production Line Plastic Trunking Equipment Easy Operation

Minimum Order Quantity : 1 SET Price : negotiation
Packaging Details : Standard wooden package Delivery Time : 3 working days
Supply Ability : 20 SET PER MONTH
Place of Origin: JIANGSU Brand Name: FRIEND
Certification: CE Model Number: SJSZ

Detail Information

SIZE: 25~60 Mm Shape: Can Be Customized
Motor Power: 37 Kw Product Name: Pvc Profile Production Line
High Light:

plastic profile extrusion machine

,

blown film extrusion line

Product Description

25~60 mm PVC trunking extruder machine Plastic profile production line plastic trunking equipment





Application

PVC Profile Extrusion Line is mainly used for production of window/door and multi-hollow threading pipe etc. It consists of a parallel or conical twin screw extruder, a vacuum forming table, a tractor, a cutter and stacker. PVC trunking is one kind of PVC profiles.



Description

PVC Trunking is the ideal system for unobtrusive cable management designed to cope with the rigours of the factory and office.

Specialized specification of parallel or conical twin screw extruder for related profile section needs.

Optional extruder’s output range: 150kg/h-450kg/h.

Tractor carries some our unique technologies such like the lift/down system. The pulling force is strong and very stable.

The vacuum forming table is adopted large vortex cooling system for proper profile forming requirement.

There are 4m, 6m, 8m and 11m length vacuum forming table for options.



Machine configuration

NO. Item Quantity
Mixing system
1. Screw feeder 1 set
2. Mixing unit 1 set
Production system
3. Screw feeder 1 set
4. Conical Twin-screw Extruder 1 set
5. Mould 1 set
6. Calibration Table 1 set
7. Haul-off 1 set
8. Cutter 1 set
9. Stacker 1 set
Recycling system
10. Crusher 1 set
11. Milling machine 1 set
12. Water chiller 1 set



Features
Manufactured to the highest standards of precision from high impact PVC in white finish and designed for rapid installation.
Electrical stock trunking lengths and a full range of compatible accessories in standard section sizes.

1. High quality: Several patents, advanced design, all-around service, independent re

earch team, and abundant experience in PVC profile. Use frequency conversion for speed regulation

2. Has super-taper twin-screw extruder with temperature controlling instrument in the screw core

3. Low energy consumption: our production line, compared with counterparts in China, can save up to 50% energy cost.

4. The rigid gear surface of the reducer can be operated continuously for a long
time without trouble

5. Long life time: Screws and machine barrels are made of high-quality materials and specially processed. The working life is up to 15,000 hours.

6. Can produce steel plastic profiles by changing the profilemold, combines with one set of steel liner conveying devices

7. Advanced control system: The production process can (be assured) rely on PLC control system and Omron sensors. Operation and mold changing are smooth and steady

8. Famous international accessories: Siemens, Omron, ABB, etc.

9. Wide usage of raw materials: PP, PE, PVC, ABB, etc. Various wood powder and/or plant fiber.

10. Excellent mixing ratio: Up to 70 percent of wood powder could be added, under the control of some special formulas .



PVC profile machine simple description

Description Parameters
Product size customized
Material PVC powder+ additives
Production line speed 0.5-4m/min
Max. output 150-240kg/h
Overall dimensions 25m×2.5m×3m (L×W×H)
Weight(Approx) 13T
Total installed power 120kw
Actual energy consumption power 80kw
Gas consumption 0.4m3/min
Air pressure 0.6mpa
Water circulating device 0.5m3/min
Electric condition 380V/3P/50Hz
Water supply Water used for industry, no impurities, by filtrating, water pressure: 0.4mpa water temperature14~25°C
Work environment temperature 0-40°C

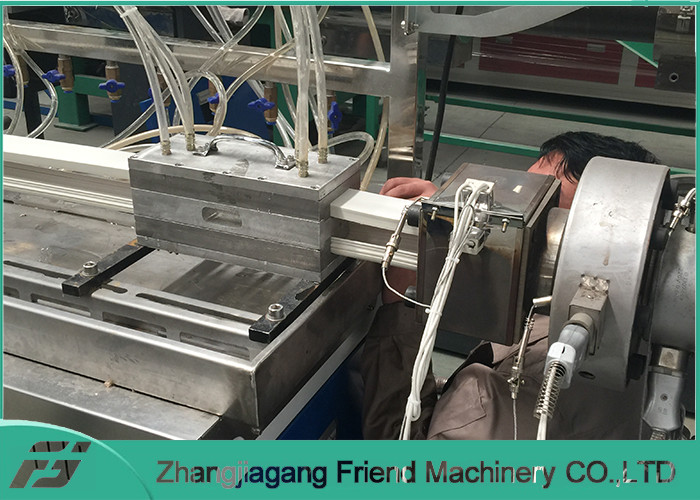

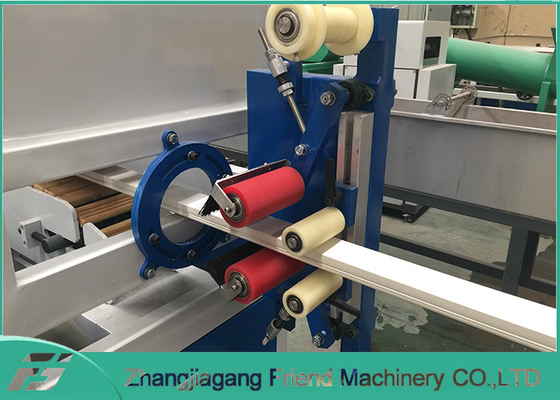

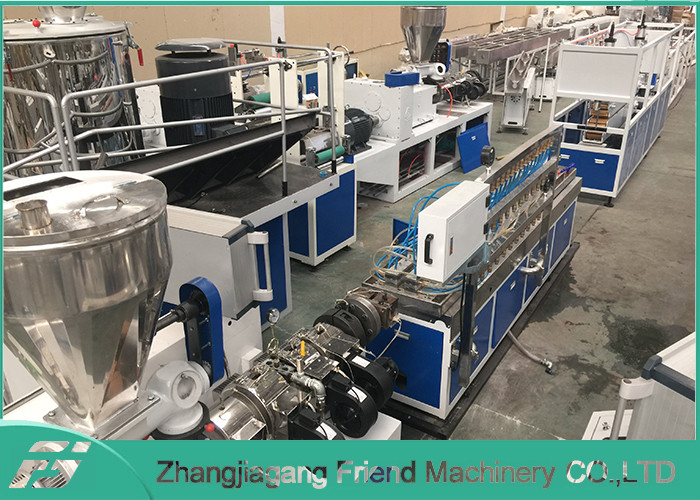

Machine pictures

25~60 Mm Plastic Profile Production Line Plastic Trunking Equipment Easy Operation 0



25~60 Mm Plastic Profile Production Line Plastic Trunking Equipment Easy Operation 1
