20kg Capacity 3D Printer Filament Machine , PLA Filament Extruder Machine With CE

20kg Capacity 3D Printer Filament Machine , PLA Filament Extruder Machine With CE

Product Details:

Place of Origin: CHINA
Brand Name: Friend machinery
Certification: CE SGS
Model Number: FLD-45A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: US 23500 $
Packaging Details: film wrapped with wooden box outer protect
Delivery Time: 35 working days
Payment Terms: Western Union, L/C, T/T, MoneyGram
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Screw Diameter: 45mm L/D: 28
Tolerence: 0.02mm Material: PLA PP PE ABS TPU EVA PEEK PVA Etc.
Voltage: 380v 50Hz Capacity: 20-25kg/h
Color: Can Be Customized
High Light:

3d printer filament maker

,

3d printer filament making machine

Product Description





Our Laboratory 3d printer filament extrusion machines are very welcomed for

Laboratory 3d printer filament extrusion machine



PLA PA PET ABS plastic 3D filament extruder is increasingly popular with the rapid development of 3D printing in fields both industrial application and personal consumption.This machine is able to process these materials such as ABS,PLA,HIPS and PA nylon etc.It is easy to operate and maintain due to adopting imported PLC control system. PLA PA PET ABS plastic 3D filament extruder can be also accomplished full-set link-lock protection, trouble safeguard,fault alarm cluing and so on.Last but not least, we are definitely confident in the quality of filament with 0.03mm tolerance.In a word, PLA PA PET ABS plastic 3D filament extruder is your good choice.

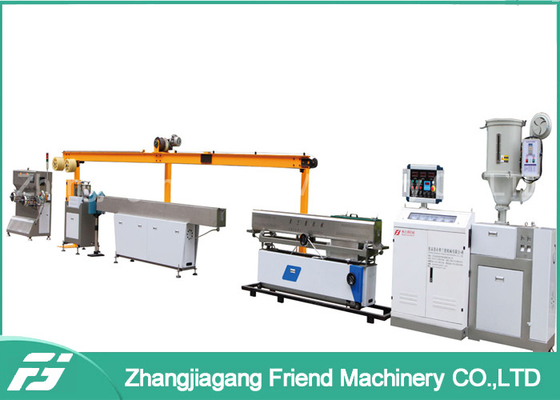

Machine parts



No. Item Qty
1 Hopper Dryer 1 Set
2 SJ45/28Single Screw Plastic Extruder 1 Set

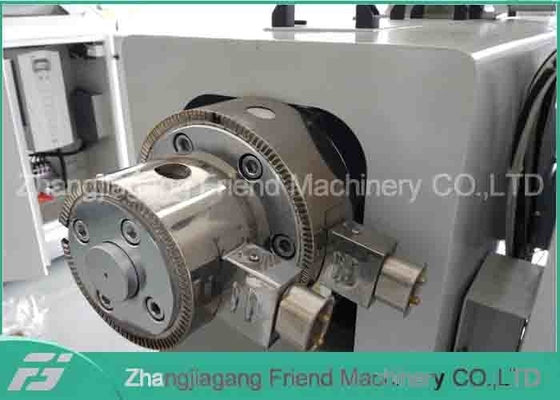

3 Die


2 Sets
4 Cooling water bath with Calibration 2 Sets
5 Laser Gauge 1 Set
6 Haul-off machine


1 set
7


Horizontal storage rack


1 set
8 Double station winder


1 set



Mode FLD-45A FLD-35A FLD-35B FLD-50A
Capacity(kg/h) 20-25 10-15 5-8 30-40
Motor power(kw) 15 7.5 5.5 15
Total length(m) 12 11 5.8 15
Filament Quantity 1 1 1 1
Diameter(mm) 1.75,2.85,3.00 1.75,2.85,3.00 1.75,2.85,3.00 1.75,2.85,3.00
Tolerance(mm) 0.02 0.02 0.03 0.02
Working Temperature(℃) 0-280(A) 0-480(B) 0-280(A) 0-480(B) 0-280(A) 0-480(B) 0-280(A) 0-480(B)
Water consumption(Mpa) 1 1 1 1.5
Air supply 0.5 0.5 0.5 0.5
Certification CE SGS TUV CE SGS TUV CE SGS TUV CE SGS TUV






































Production Flow



Hopper dryer——Single screw extruder——Die head——Water tank—— Laser measuring diameter machine—— Haul off machine—— Storage wire stand—— Winder machine

20kg Capacity 3D Printer Filament Machine , PLA Filament Extruder Machine With CE 0



its multi-advantages:



Our Laboratory 3d printer filament extrusion machines are very welcomed for


1 Big capacity compared with other suppliers who use the same model screw and motor


2 Lowest tolerance: +/- 0.03 mm. even +/- 0.02 mm.


3 Both 1.75 and 3.00mm filament diameter


4 It can process multi-materials like PLA ABS PET PA HIPS .


5 Easy operation: SIEMENS PLC full-auto controling system, lazer guage close loop control.


6 Stable quality , we have not received any negtive review from our customers


7 Oversea service, installation, staff trainning and technical support available

Laboratory 3d printer filament extrusion machines application


Laboratory 3d printer filament extrusion machines always be used for test or lab research with small capacity and low energy consumption.
This Laboratory 3d printer filament extrusion machinescan be used to plastic modification test, pipe extrusion test, filament extrusion text and granulation test with different moulds. It is an essential equipment of the chemical enterprise, scientific research institution, college and university lab.
Laboratory 3d printer filament extrusion machines also can process all kinds of plastic materials such as soft/hard propene Polymer (PP) and polystyrene(PE) coordinated with the appropriate auxiliary machine.


Laboratory 3d printer filament extrusion machines Features


1. For tube accessary machine
   This machine can be applied as striping machine which is a auxiliary in pipe production line.


2. For research laboratory or teaching
   with little capability and lower energy consuming.
   , this mini extruder is widely used in lab experiment and text.


3. For personal workshops
   Many individuals would like to established a workshop to produce pastic-related products, but you do not want to put much spending budget,         consequently you can select this machine.




20kg Capacity 3D Printer Filament Machine , PLA Filament Extruder Machine With CE 120kg Capacity 3D Printer Filament Machine , PLA Filament Extruder Machine With CE 2
