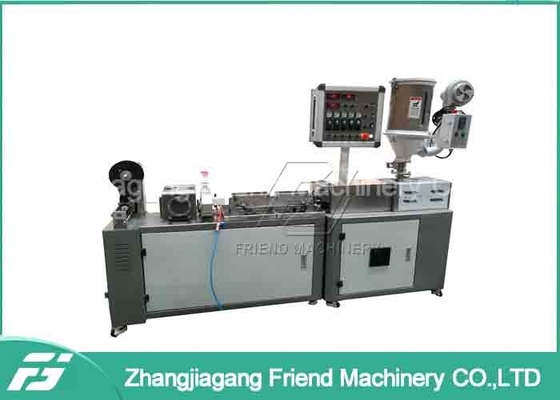

Small Size Simple Design Mini Filament Extruder Machine For Desktop 3d Printer Filament

Small Size Simple Design Mini Filament Extruder Machine For Desktop 3d Printer Filament

Product Details:

Place of Origin: CHINA
Brand Name: Friend machinery
Certification: CE SGS
Model Number: FLD-25A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: US 8000 US$
Packaging Details: film wrapped with wooden box outer protect
Delivery Time: 35 working days
Payment Terms: Western Union, L/C, T/T, MoneyGram
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Screw Diameter: 25mm L/D: 28
Tolerence: 0.03mm Material: PLA PP PE ABS TPU EVA PEEK PVA Etc.
Voltage: 380v 50Hz Capacity: 0.5-1kg/h
Color: Can Be Customized Inverter: ABB
High Light:

3d printer filament maker

,

3d printer filament making machine

Product Description



Our Laboratory 3d printer filament extrusion machines are very welcomed for








1 Lowest tolerance: +/- 0.03 mm. even +/- 0.02 mm.


2 Both 1.75 and 3.00mm filament diameter


3 It can process multi-materials like PLA ABS PET PA HIPS .


4 Easy operation: SIEMENS PLC full-auto controling system, lazer guage close loop control.


5 Stable quality , we have not received any negtive review from our customers


6 Oversea service, installation, staff trainning and technical support available









Machine parts



No. Item Qty
1 Hopper Dryer 1 Set
2 SJ25/28Single Screw Plastic Extruder 1 Set
3 Die


2 Sets
4 Cooling water bath with Calibration 2 Sets
5 Laser Gauge 1 Set
6 Haul-off machine


1 set
7 winding machine 1 set






Other available models





Mode FLD-45A FLD-35A FLD-35B FLD-50A
Capacity(kg/h) 20-25 10-15 5-8 30-40
Motor power(kw) 15 7.5 5.5 15
Total length(m) 12 11 5.8 15
Filament Quantity 1 1 1 1
Diameter(mm) 1.75,2.85,3.00 1.75,2.85,3.00 1.75,2.85,3.00 1.75,2.85,3.00
Tolerance(mm) 0.02 0.02 0.03 0.02
Working Temperature(℃) 0-280(A) 0-480(B) 0-280(A) 0-480(B) 0-280(A) 0-480(B) 0-280(A) 0-480(B)
Water consumption(Mpa) 1 1 1 1.5
Air supply 0.5 0.5 0.5 0.5
Certification CE SGS TUV CE SGS TUV CE SGS TUV CE SGS TUV




















































Production Flow



Hopper dryer——Single screw extruder——Die head——Water tank—— Laser measuring diameter machine—— Haul off machine—— Storage wire stand—— Winder machine

Small Size Simple Design Mini Filament Extruder Machine For Desktop 3d Printer Filament 0





Laboratory 3d printer filament extrusion machines application


Laboratory 3d printer filament extrusion machines always be used for test or lab research with small capacity and low energy consumption.
This Laboratory 3d printer filament extrusion machinescan be used to plastic modification test, pipe extrusion test, filament extrusion text and granulation test with different moulds. It is an essential equipment of the chemical enterprise, scientific research institution, college and university lab.
Laboratory 3d printer filament extrusion machines also can process all kinds of plastic materials such as soft/hard propene Polymer (PP) and polystyrene(PE) coordinated with the appropriate auxiliary machine.


Laboratory 3d printer filament extrusion machines Features


1. For tube accessary machine
   This machine can be applied as striping machine which is a auxiliary in pipe production line.


2. For research laboratory or teaching
   with little capability and lower energy consuming.
   , this mini extruder is widely used in lab experiment and text.


3. For personal workshops
   Many individuals would like to established a workshop to produce pastic-related products, but you do not want to put much spending budget,         consequently you can select this machine.




Detail Pictures



Small Size Simple Design Mini Filament Extruder Machine For Desktop 3d Printer Filament 1Small Size Simple Design Mini Filament Extruder Machine For Desktop 3d Printer Filament 2

Small Size Simple Design Mini Filament Extruder Machine For Desktop 3d Printer Filament 3Small Size Simple Design Mini Filament Extruder Machine For Desktop 3d Printer Filament 4

Small Size Simple Design Mini Filament Extruder Machine For Desktop 3d Printer Filament 5
